Notice: Do not turn power on before assembly is done.
Step 1:
Step 2:
Step 3:
ASSEMBLY STEPS

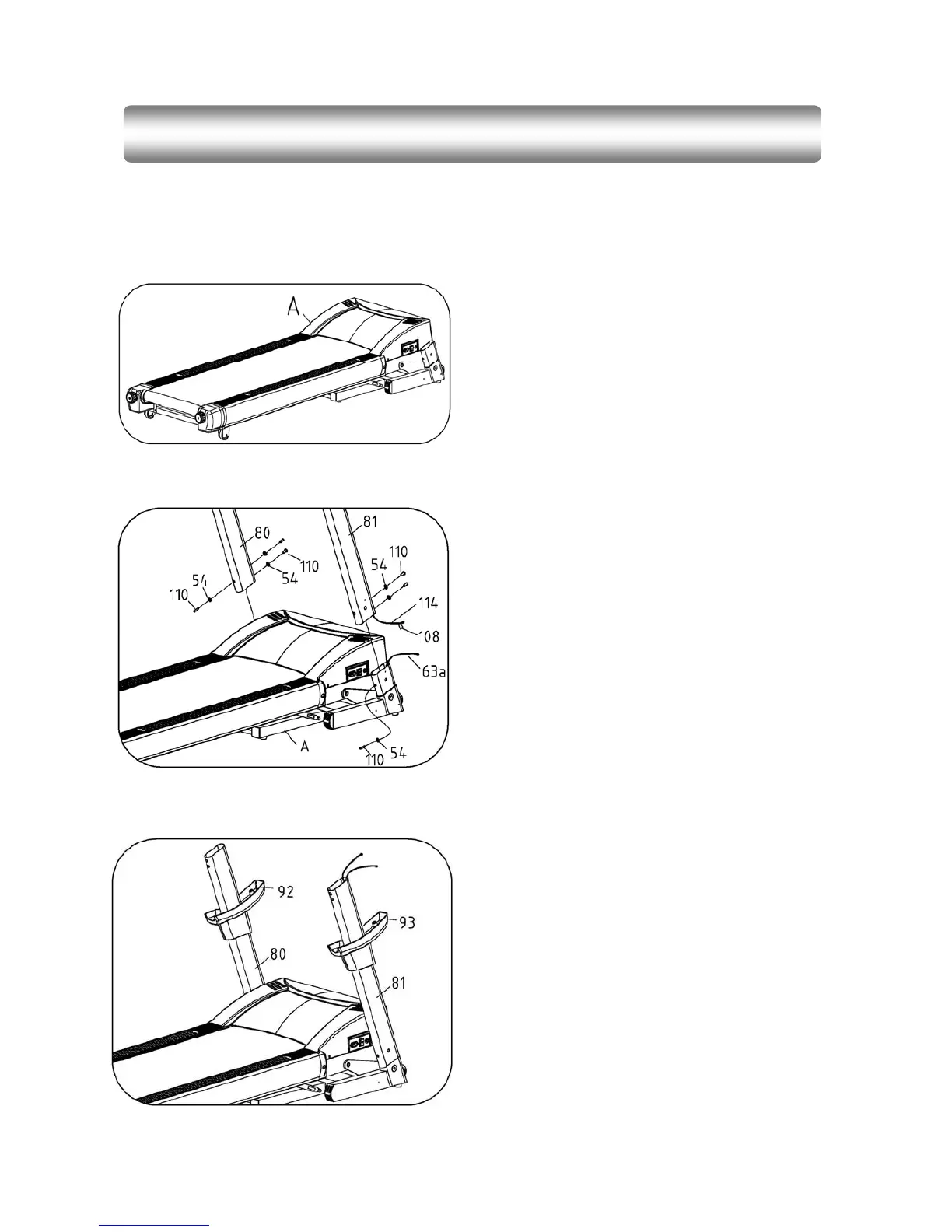

1.Put the Main Frame（#A）on the flat ground.
1. Use 6# Allen Wrench, fasten the Left Upright
(#80) and the Right Upright (#81) with the Main
Frame (#A) by the Bolt (#110) and the Washer
(#54).
2. Connection way: Connect the Console
Middle Wire (#114, at the bottom of the Right
Upright #81) with the Console Bottom Wire
(#63, on the Main Frame #A) carefully.
1. Put the Left Handle Bottom Cover (#92）
onto the Left Upright (#80)
2. Put the Right Handle Bottom Cover (#93)
onto the Right Upright (#81)
