3. Product overview

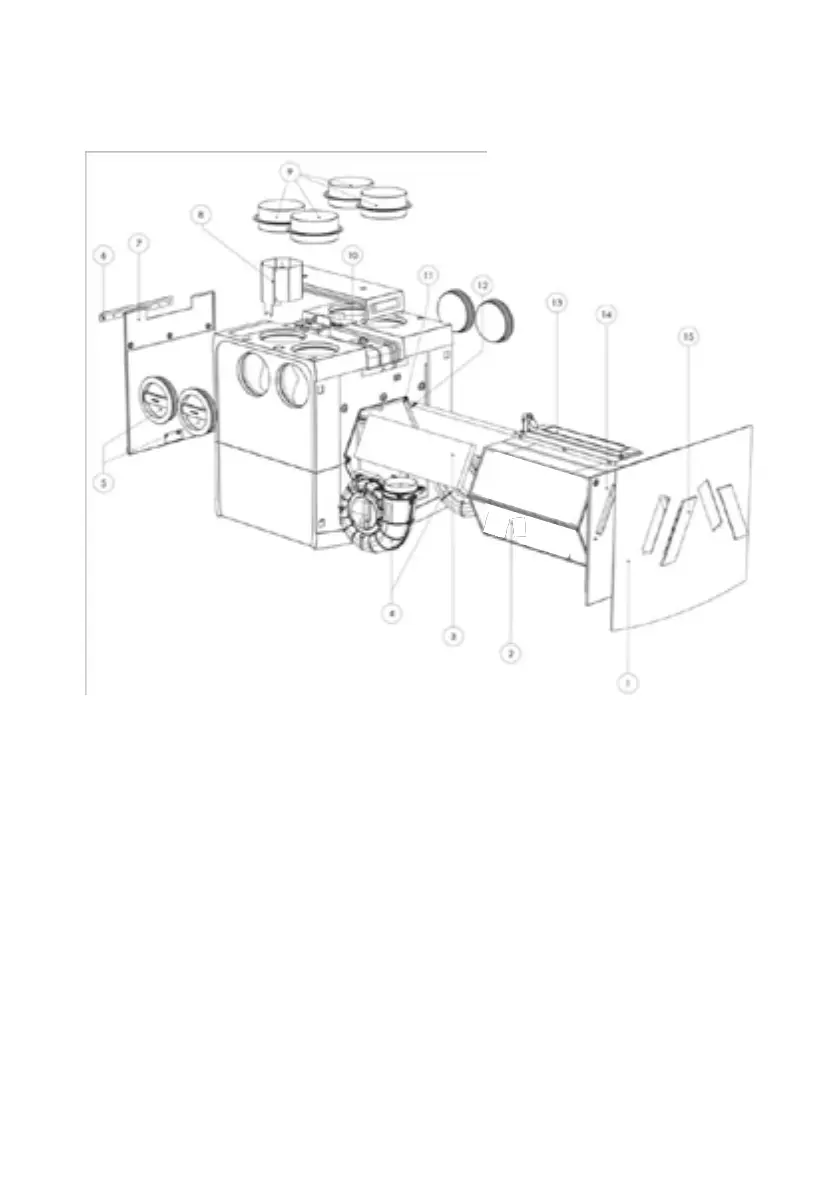

3.1 Parts
1.
Plastic front cover
9b.
Connection flange 180mm (4x)
2.
Heat exchanger
(HRC 400-EcoMax/MaxComfort)
3.
Filter (2x)
9c.
Connection flange 180mm (6x)
4.
Fan module (2x)
(HRC 500-EcoMax/MaxComfort)
5.
EPP cap (4x)
10.
Main board, RF antenna
6.
Wall bracket
11.
Temperature sensor (2x)
7.
Metal backplate
12.
Moisture sensor
8.
Pre-heater
13.
Bypass module
(only for HRC MaxComfort)
14.
Metal front panel
9a.
Connection flange 150 mm (4x)
15.
Filter handle left & right
(HRC-300-EcoMax/MaxComfort)
