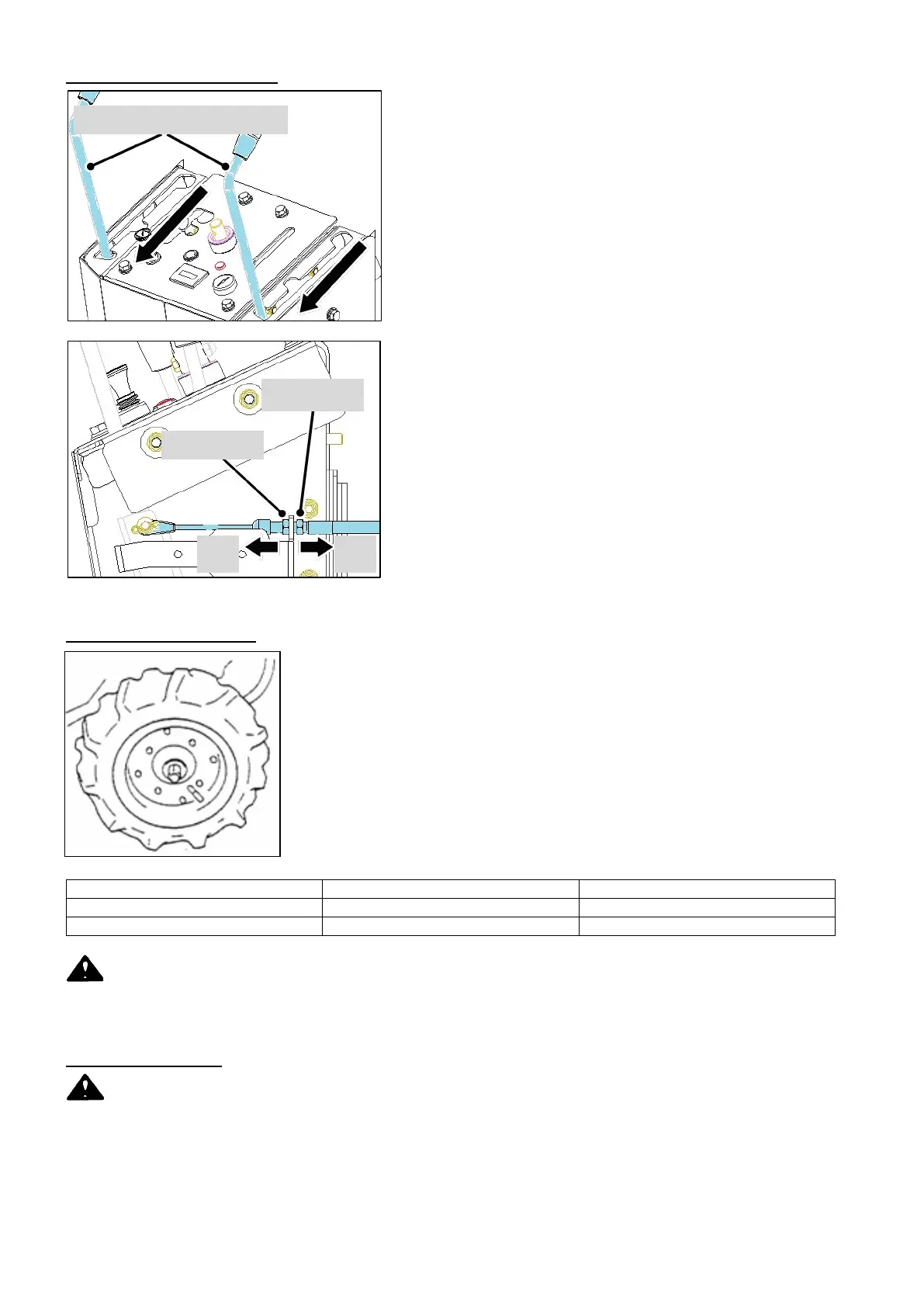

OFFSET PULL WIRE ADJUSTMENT
1) Refer to figure(left), and fix the offset open/close lever
fully toward operator(=offset at fully closed position).
2) Loosen the lock nut of offset pull wire and adjust with ad-
just nut. Take same way for both right and left side.
In order to close the offset,
-Move the adjust nut toward A.
In order to open the offset,
-Move the adjust nut toward B.
3) After this adjustment, securely tighten the lock nut.
TIRE PRESSURE ADJUSTMENT
Refer to table below to check the pressure of tires.
Tire size
Pressure(kPa)
Front wheel
3.50-7
120
Rear wheel
16x7.00-8
140
CAUTION
Pay attention to equal the pressure of R & L tires. If not, handle control may be lost during operation.
FRONT TIRE INSPECTION
CAUTION
Do not forget to remove the soil or grass which comes into tires. If they remain around the tire for a long time, tire
wheel, oil seal or bearing on the front wheel may be damaged.
Remove the mud and grass inside the tire wheel.
Offset open/close lever
Lock nut
Adjust nut
B
A
