To Clean Clogged Power Nozzle

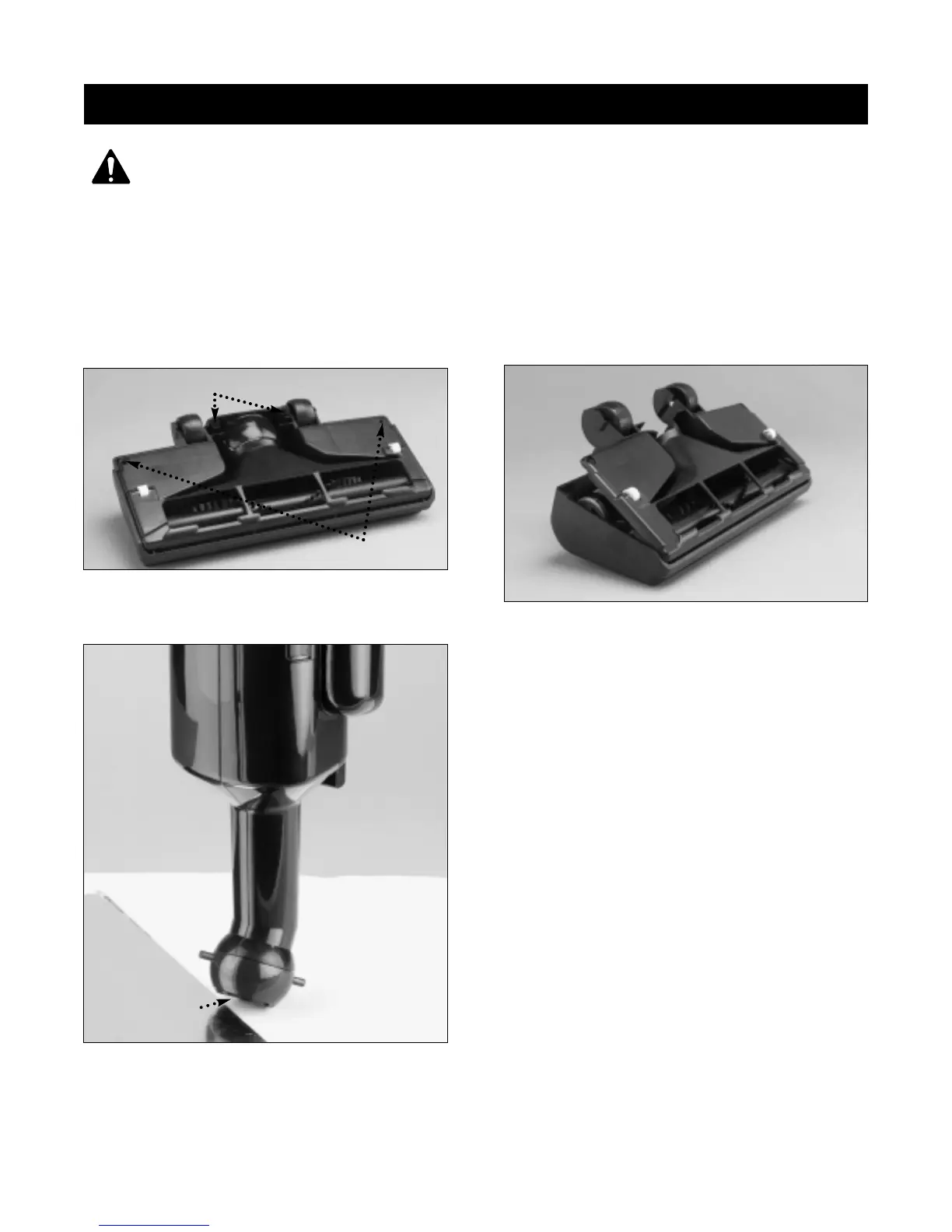

STEP 1: Remove Power Nozzle Assembly
Lay cleaner on flat surface with bottom side of nozzle
(brush side) facing you then:
A) Remove swivel clamp screws and clamp.
B) Remove the two screws at the outer rear corners of the
nozzle base plate only.
C) Lift unit body inlet section out of power nozzle base.
STEP 2: Inspect
Inspect nozzle and cleaner inlet for clogs and debris.
WARNING: Unplug cord from electrical
outlet before servicing.
STEP 3: Replace Power Nozzle Assembly
After cleaning, replace unit body inlet section into power
nozzle base. Line up tabs in front of base plate with slots
in nozzle cover. Press down on front while rocking base
back into place. Be sure front tabs are in lock position.
Replace screws at rear corners. Reattach swivel clamp to
nozzle base.
INLET
CLAMP SCREWS
SCREWS
