Introduction

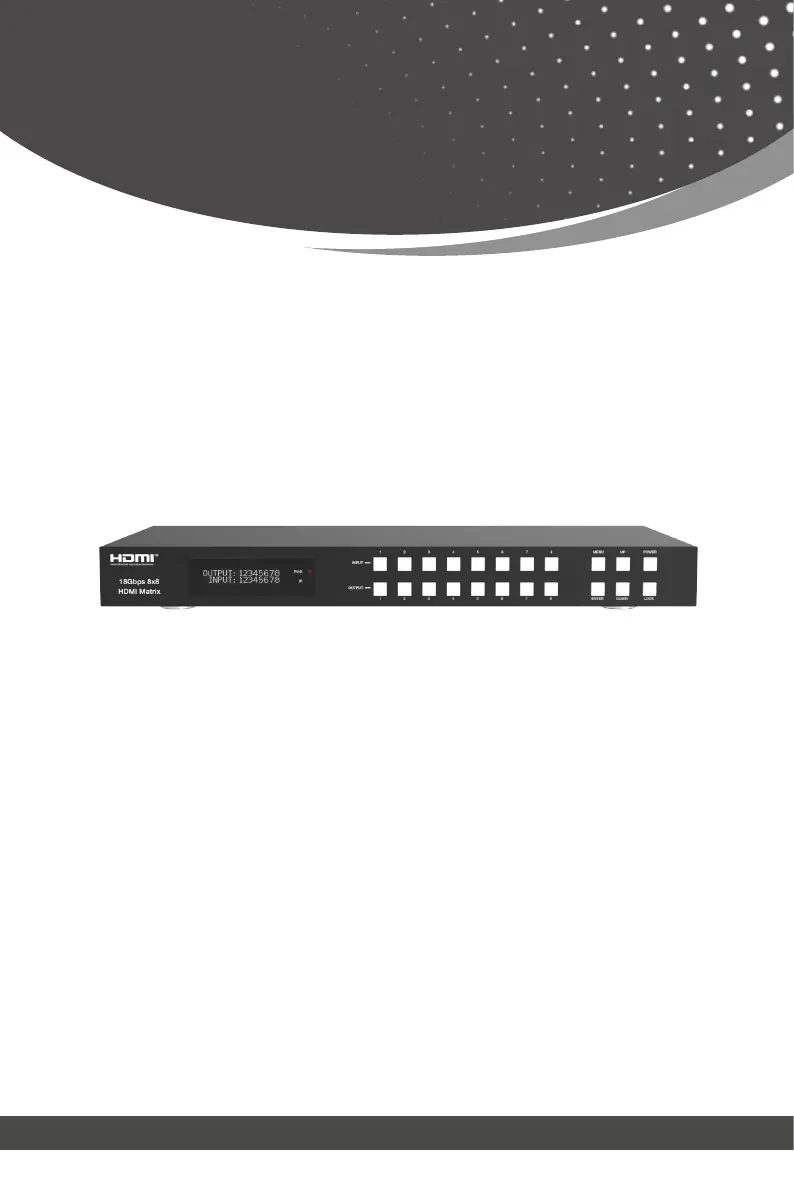

The UHD-808 Matrix supports the transmission of video (up to 4K@60Hz YUV 4:4:4) and
multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays.
Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output
ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display
devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI
Matrix supports 4K to 1080P downscaler independently. Control is via front panel but-
tons, IR remote, RS-232, LAN and Web GUI.
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
2. Video resolution up to 4K@60Hz (YUV 4:4:4) on all HDMI ports
3. Supports 18Gbps video bandwidth
4. Dolby Vision, HDR 10+ and HLG are supported
5. Supports 4K->1080P Down Scaler for each output port
6. HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)
7. Audio de-embedded output is supported via analog and coax ports
8. ARC, CEC and smart EDID management are supported
9. 1U rack mounted design with front panel OLED display
10. Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Features
