ORFELD H01 - Cleaning the Brush Roller

11
CLEAN THE BRUSH ROLLER
STEP1

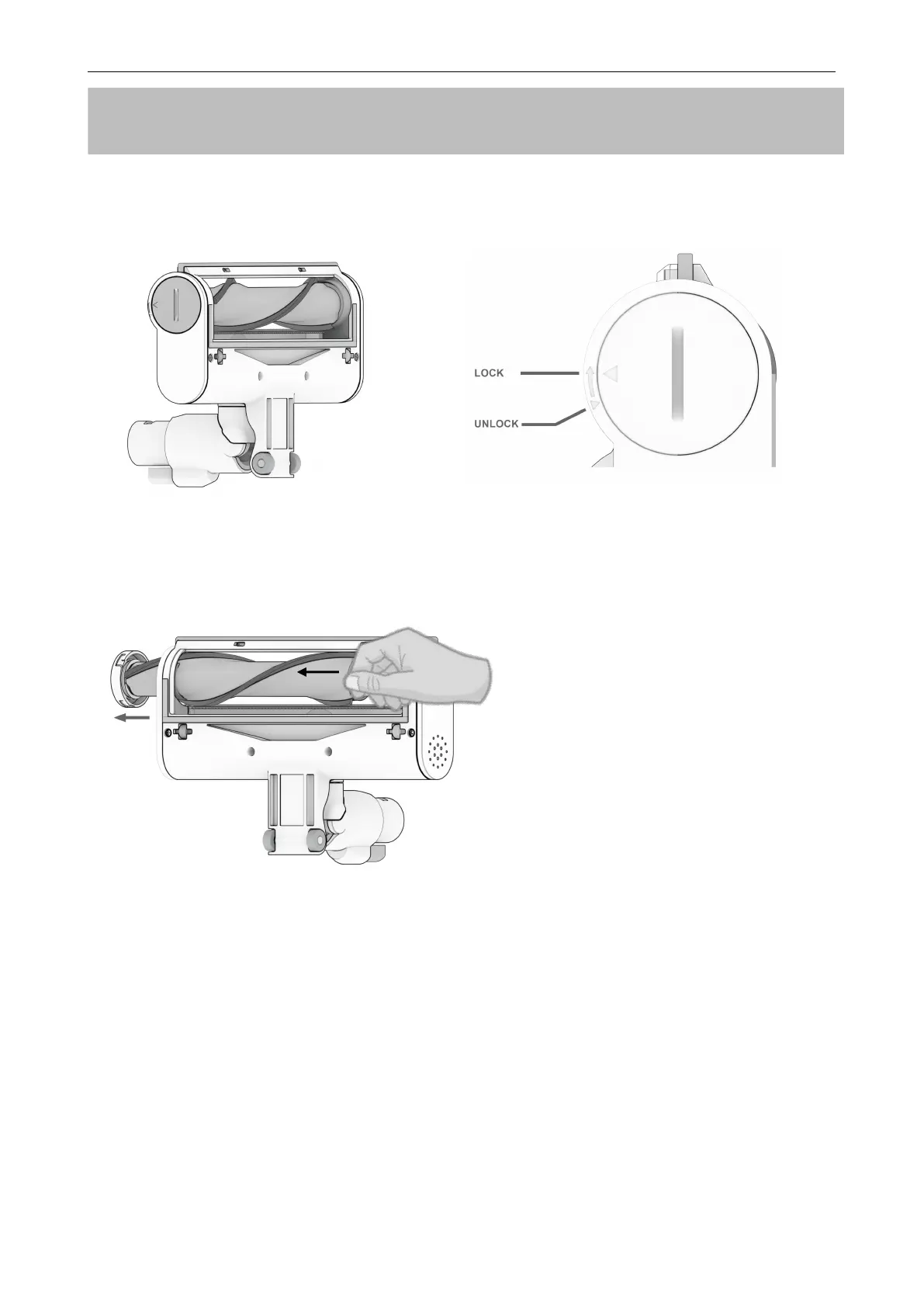

Turn the carpet nozzle over. Turn the bracket in the opposite direction of the arrow to the
alignment triangle
STEP2
Tilt the nozzle to a certain angle as shown in the picture, shake and pull out the brush
roller. Remove the hair and debris from the brush roller.
STEP3
Insert brush roller back to the nozzle by aligning triangle marks and follow the direction of
the arrow until it locks.
PUSH
