LCD Display

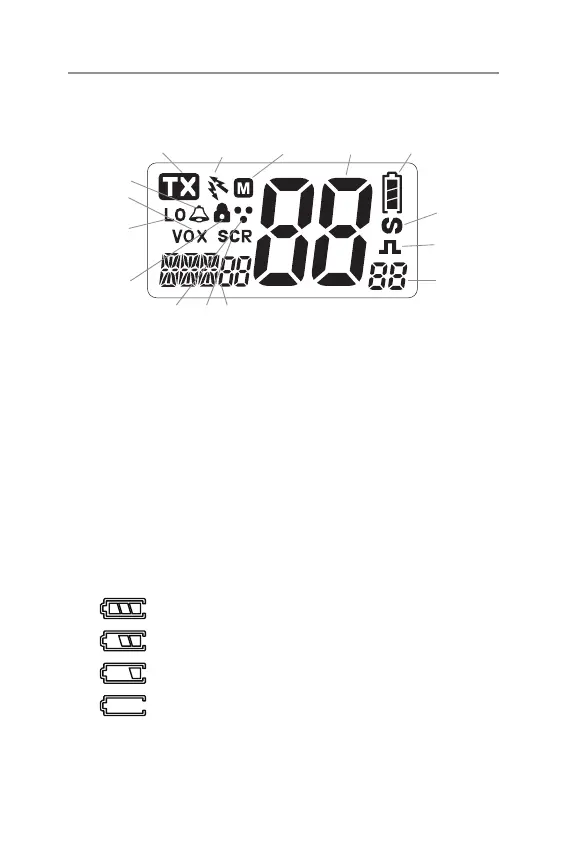

A. TX indicator H. CTCSS/DCS code
B. Duplex on I. Function
C. Memory J. Scrambler on
D. Channel display K. Tri Watch on
E. Battery indicator L. Key Lock
F. CTCSS on M. Low TX power
G. DCS on N. VOX
O. Roger Beep on
Battery Level Display
The battery icon in the top right hand corner of the LCD shows the
current battery level at all times.
The battery level is displayed in 4 levels as below.
Battery 100% fully charged
Battery approx 70%
Battery approx 30%
Low battery with alert beep tone
Battery life: Typically 15 Hours (This is based on the following duty
cycle TX 5%/RX 5%/Stand by 90%)
Controls and Indicators
O
N
M
G
K J
H
L
F
I
