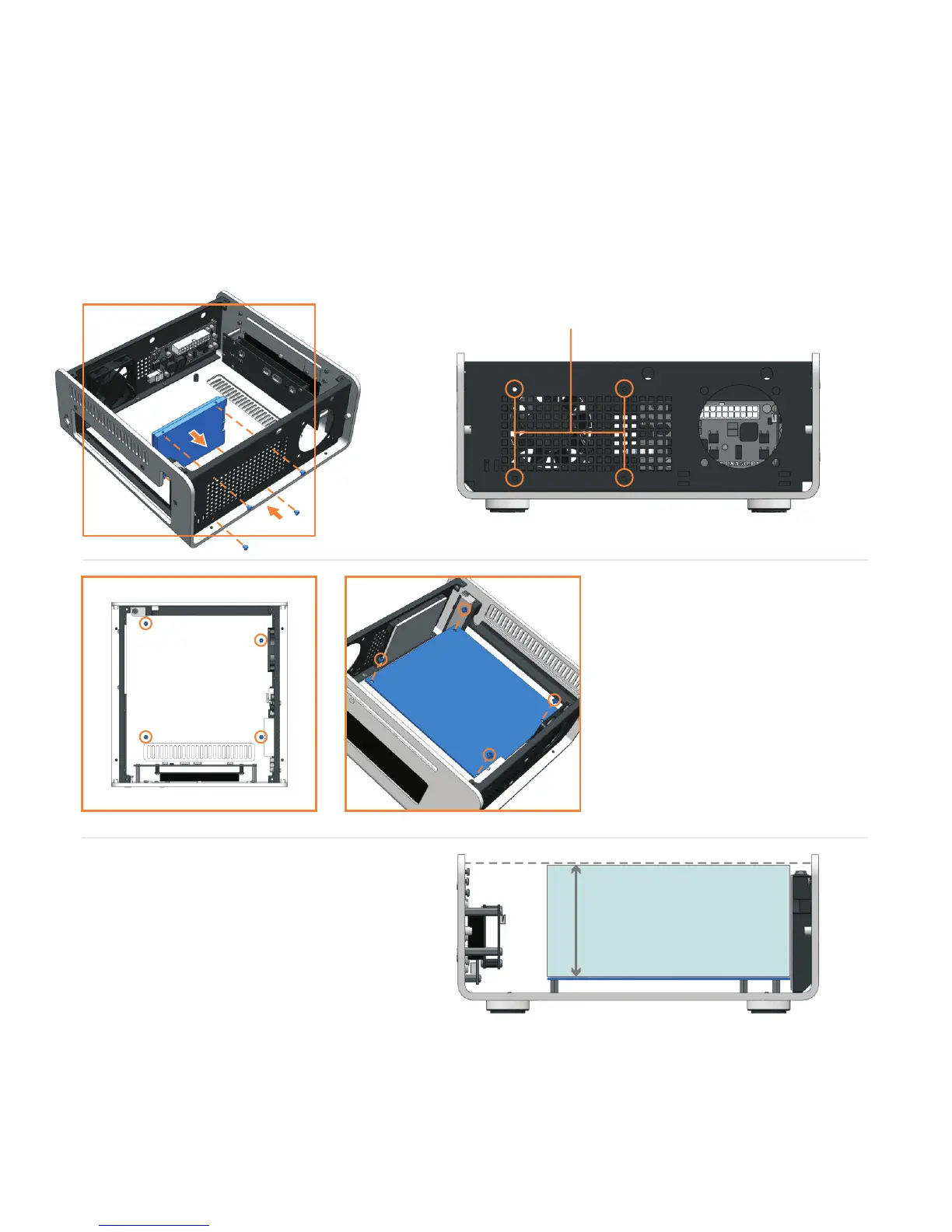

Hard Drive installation
The M10 supports a 2.5 inch HDD or SSD. A HDD or SSD requires the 4 fixing screws on the
left panel of the chassis as shown.
Left side view
Mounting holes
Max height CPU cooler
The maximum size of CPU cooler is
80mm, the standard cooler of Intel or
AMD and third part CPU cooler of
below 80mm will be fitted in M10.
Right side view
Max CPU cooler height
80mm
6
Mainboard installation
If a Mini-itx board is to be
installed in the M10, the 4
spacer bolts supplied must
be used. Screw the bolts
into the bottom of chassis as
indicated.
Mounting
holes
