10

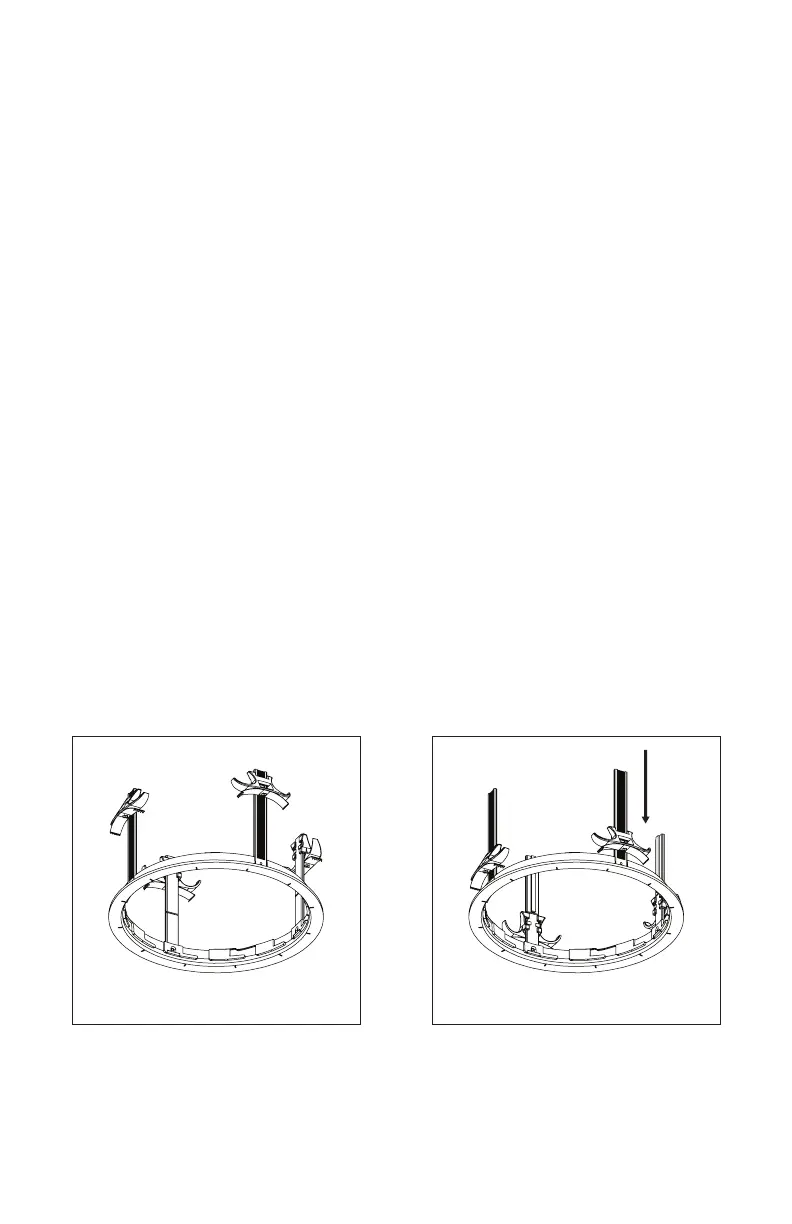

(Unlocked)
Bayonet Ring
(Locked)
Bayonet Ring
Adjust the clips so that they’re positioned at the top of the rail. If they’re not al-
ready there you can do this by pushing the release tabs (or metal “buttons”) on
the inside of the rail and pulling the clips to the top of the rails. Insert the bayonet
ring into the hole in the ceiling by gently bending the clips inward. Reach inside
the bayonet ring and push the clips down so that the InstaMount is firmly in place,
but not too tight. If for some reason the bayonet ring needs to be removed, reach
inside and push the release tabs to fully remove the clips. Aer the clips have been
removed, the bayonet ring can be taken out.
4. Installing the Bayonet Ring
plate, check the Specifications section for cutout sizes.) If you’re unsure on wheth-
er there may be obstacles (such as pipes or wires) where you plan on installing the
speaker, drill a ⅛ inch hole in the center of the circle, then put a bent coat hanger
through the hole to feel around. Use a keyhole or drywall saw to cut the hole.
