11

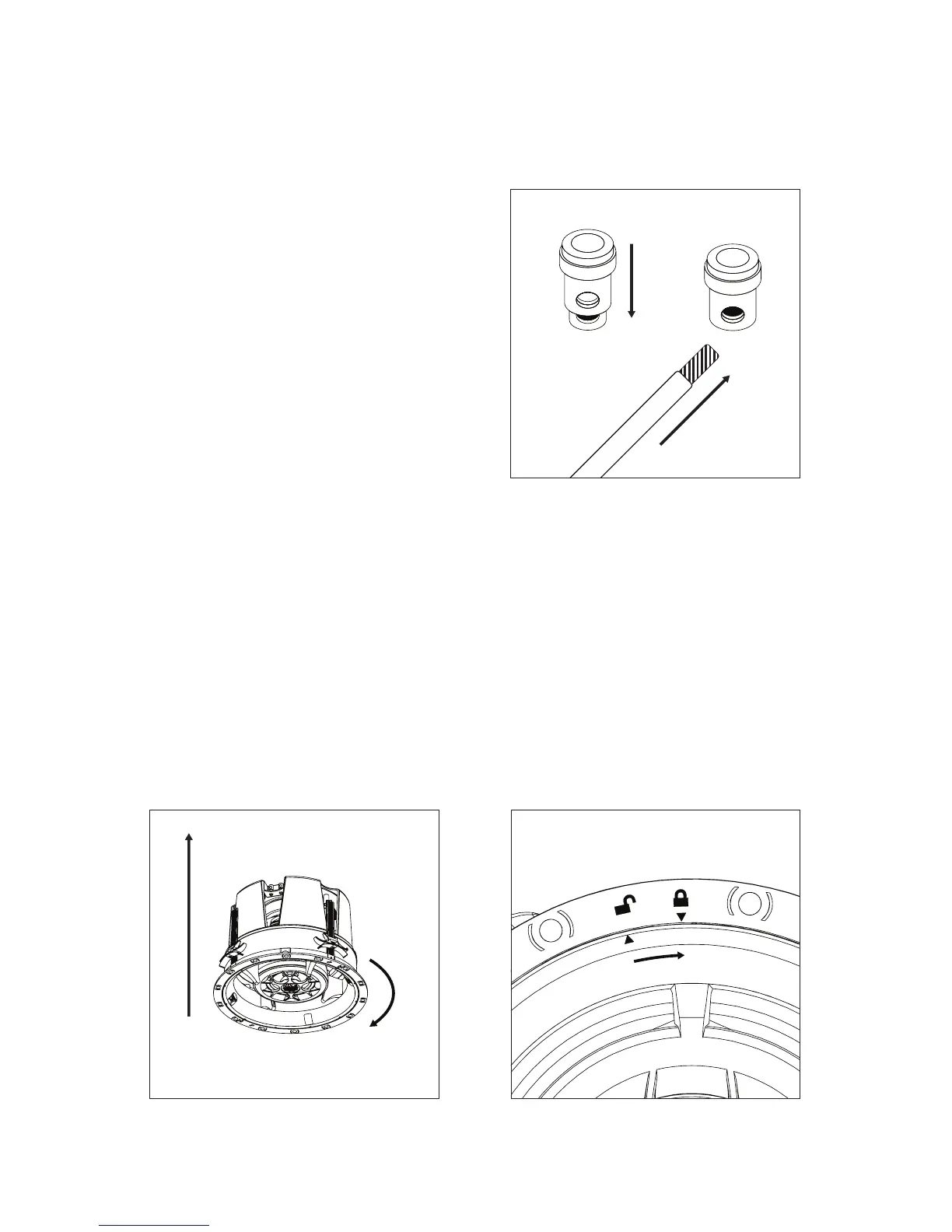

Twist Clockwise
to Lock
1. Fit into Ring
2. Twist into Ring
Fit the speaker into the bayonet ring, and twist it clockwise into place. When the
arrow on the speaker lines up with one of the arrows on the bayonet ring, that
means the speaker is tightly in place. Be sure that the arrows line up, otherwise
there’s a risk that the speaker will fall out of the ceiling.
6. Installing the Speaker
Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connec-
tion and the negative wire is being
attached to the black connection. If
the negative and positive wires are
switched, speaker performance will be
drastically impacted.
5. Connecting the Wire
Speaker
Wire
Connector
