Origin E ects Cali76 FET Compressor
The Cali76 FET Compressor can also be used with line level signals. The 9V input voltage is increased internally
to 24V, resulting in impressive headroom. This means that the Cali76 FET Compressor can be used with key-
boards, drum machines and as studio outboard. It can be connected in the insert of a mixing console or used
for re-amping tracks in the studio.
Although the pedal has plenty of headroom for dealing with higher signal levels, the circuitry is still primarily
designed for use with guitar signals, so it may be necessary to lower the IN control to accommodate line level
signals and avoid excessive compression. This will ensure that the right amount of signal is exceeding the fi xed
threshold, and this can be monitored using the 10-LED gain reduction meter.
Line Level Signals:
Routing Diagram:

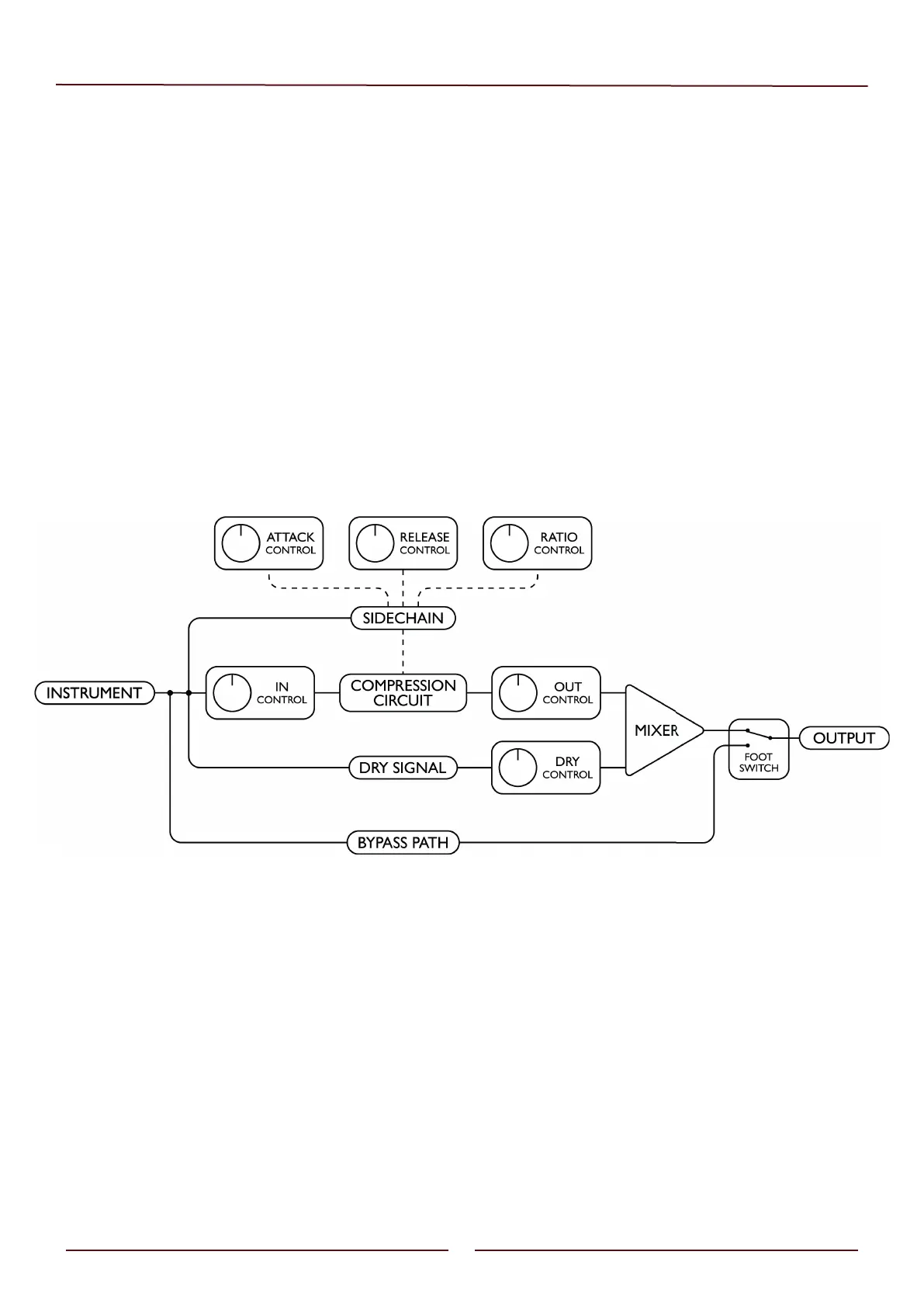

The diagram below shows the signal routing within the Cali76 FET Compressor.

Origin Effects CALI76 Specifications

General

Type	Compressor
Technology	Analog
Output Impedance	1 kΩ
Bypass	True Bypass
Power Supply	9V DC
Controls	Input, Output, Ratio, Attack, Release
Attack	Variable
Release	Variable
Circuit Type	Class-A, discrete transistor
Input Impedance	1 MΩ
Weight	620 g (1.37 lbs)
