Origin Effects RevivalDRIVE User Manual

18

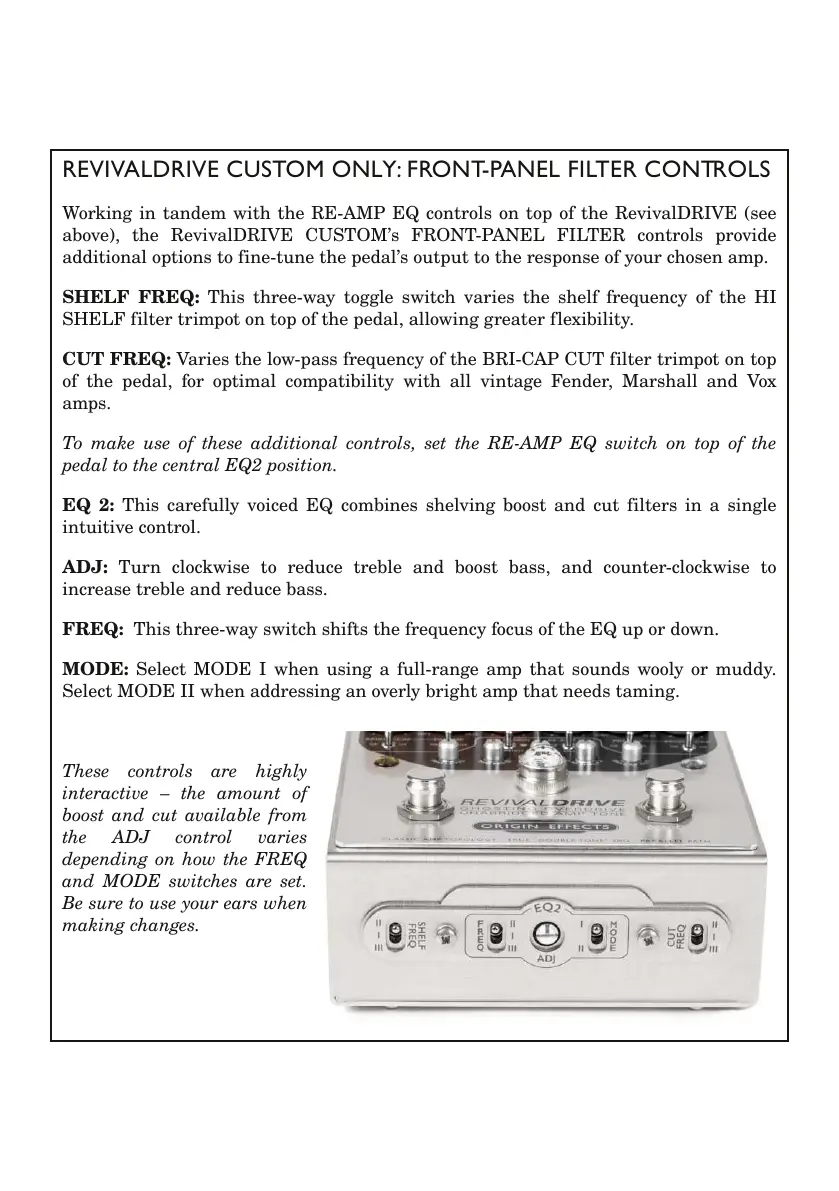

REVIVALDRIVE CUSTOM ONLY: FRONT-PANEL FILTER CONTROLS
Working in tandem with the RE-AMP EQ controls on top of the RevivalDRIVE (see
above), the RevivalDRIVE CUSTOM’s FRONT-PANEL FILTER controls provide
additional options to fine-tune the pedal’s output to the response of your chosen amp.
SHELF FREQ: This three-way toggle switch varies the shelf frequency of the HI
SHELF filter trimpot on top of the pedal, allowing greater flexibility.
CUT FREQ: Varies the low-pass frequency of the BRI-CAP CUT filter trimpot on top
of the pedal, for optimal compatibility with all vintage Fender, Marshall and Vox
amps.
To make use of these additional controls, set the RE-AMP EQ switch on top of the
pedal to the central EQ2 position.
EQ 2: This carefully voiced EQ combines shelving boost and cut filters in a single
intuitive control.
ADJ: Turn clockwise to reduce treble and boost bass, and counter-clockwise to
increase treble and reduce bass.
FREQ: This three-way switch shifts the frequency focus of the EQ up or down.
MODE: Select MODE I when using a full-range amp that sounds wooly or muddy.
Select MODE II when addressing an overly bright amp that needs taming.
These controls are highly
interactive – the amount of
boost and cut available from
the ADJ control varies
depending on how the FREQ
and MODE switches are set.
Be sure to use your ears when
making changes.

Origin Effects RevivalDRIVE Specifications

General

Bypass	True Bypass
Technology	Analog
Inputs	1 x 1/4"
Outputs	1 x 1/4"
Power Source	9V DC power supply (not included)
Input Impedance	1 MΩ
Output Impedance	1 kΩ
Type	Overdrive
Controls	Output, Blend, Highs, Lows, More/Pres, Gain
Channels	Mono
