This document serves as a comprehensive manual for the semi-assembly of the Original Prusa MINI+ 3D printer, guiding users through the process from unboxing to final setup. The manual is structured into two main sections: "Building your MINI+" which covers the step-by-step assembly, and "Manual changelog MINI+ semi-assembly" which details revisions to the manual itself.

Function Description:

The Original Prusa MINI+ is a compact, semi-assembled 3D printer designed for both beginners and experienced users. Its primary function is to create three-dimensional objects from digital designs using Fused Deposition Modeling (FDM) technology. The semi-assembled nature means that critical components are pre-built, simplifying the assembly process for the user while still providing an engaging build experience. The printer features an integrated LCD screen for user interaction, a heatbed for improved print adhesion, and the option for a filament sensor to enhance reliability during printing. The design emphasizes ease of use, maintainability, and consistent print quality, characteristic of Prusa Research products.

Usage Features:

The assembly process for the Prusa MINI+ is broken down into numerous, manageable steps, ensuring a clear and guided experience.

Initial Setup and Preparation:
- Preassembled vs. Kit Version: The manual begins by clarifying the difference between a fully preassembled unit and the semi-assembled kit, setting expectations for the user.
- Hardware Revisions: It acknowledges potential variations in hardware revisions, indicating that the manual is designed to accommodate these differences.
- Tools Included: All necessary tools for assembly are provided, eliminating the need for users to acquire additional equipment. This includes various Allen keys and an 8x10 mm wrench.
- Labels for Reference: The use of labels for identifying parts is highlighted, streamlining the component identification process.
- Support System: The manual emphasizes the availability of support resources, including online forums and a knowledge base, to assist users during assembly.
- XYZ-Axes Parts Preparation: The initial steps involve preparing the XYZ-axes components, which are crucial for the printer's movement system. This includes handling the main printer body and associated parts.
- Foam Pads Preparation and Installation: Foam pads are prepared and installed on the base of the printer, likely for vibration dampening and stability.
Electronics Integration:
- Opening the Electronics Box: Users are guided to open the enclosure housing the printer's electronics.
- Connecting the LCD Cable: The LCD cable is connected to the main electronics board, enabling the display functionality.
- Connecting Y and XZ-axis Assembly: The Y-axis and XZ-axis assemblies are connected, integrating the primary motion systems with the electronics.
- Joining Parts Together (Phases 1-3): The manual details a multi-phase process for physically joining the main printer components, ensuring proper alignment and secure connections.
- Protecting the LCD Cable: Instructions are provided to protect the LCD cable, likely involving routing or securing it to prevent damage during operation.
- Aligning the XZ-axis Assembly: Precise alignment of the XZ-axis is a critical step to ensure accurate printing.
- Final Tightening: After initial assembly, a final tightening step ensures all connections are secure.
User Interface and Peripheral Connections:
- LCD Parts Preparation and Mounting: The LCD screen components are prepared and then mounted onto the printer frame.
- Connecting and Guiding the LCD Cable: The LCD cable is connected to the mounted screen and carefully guided to prevent interference or damage.
- Connecting Y-axis Motor: The motor responsible for Y-axis movement is connected to the electronics.
- Connecting the Heatbed Cable: The heatbed cable is connected, enabling the heated print surface.
- Filament Sensor (Optional) Installation and Connection: For users opting for the filament sensor, detailed steps are provided for its installation and connection, enhancing print reliability by detecting filament run-out.
- Covering the Electronics: The electronics enclosure is closed and secured, protecting the internal components.
Spool Holder Assembly:
- Spool Holder Parts Preparation: Components for the filament spool holder are prepared.
- Assembling the Spool Holder Base(s): The base structure of the spool holder is assembled.
- Adding Spool Holder Rails: The rails, which support the filament spool, are attached to the base.
- Adjusting Spool Holder Width: The width of the spool holder can be adjusted to accommodate different filament spool sizes.
- Attaching Anti-slip Pads: Anti-slip pads are attached to the spool holder, ensuring stability during filament unwinding.
Final Steps:
- Finalizing the Assembly: This step encompasses any remaining minor adjustments or checks to complete the physical assembly.
- Connecting the PSU: The Power Supply Unit (PSU) is connected to the printer, providing power to the system.
- What is Next?: The manual concludes by directing users to further resources, such as the 3D Printing Handbook and the Prusa Knowledge Base, for post-assembly setup, calibration, and printing guidance.

Maintenance Features:

While the manual primarily focuses on assembly, several steps implicitly or explicitly contribute to the maintainability of the device:

Clear Component Identification: The use of labels for reference during assembly aids in future troubleshooting and part replacement, as components are clearly identified.
Structured Wiring: Steps like "Protecting the LCD cable" and "Guiding the LCD cable" ensure that wiring is neatly routed and secured, reducing the risk of wear, damage, and making future access for maintenance easier.
Modular Design: The breakdown of the printer into distinct assemblies (e.g., XYZ-axes, electronics box, spool holder) suggests a modular design. This modularity simplifies maintenance and repair, as individual components or assemblies can be more easily accessed, diagnosed, and replaced without disassembling the entire printer.
Optional Filament Sensor: The optional filament sensor is a maintenance-enhancing feature, as it prevents failed prints due to filament run-out, thereby reducing material waste and the need for reprinting.
Access to Electronics: The "Opening the box with the electronics" step implies that the electronics are designed to be accessible for potential upgrades, diagnostics, or repairs.
Adjustable Spool Holder: The ability to adjust the spool holder width allows for compatibility with various filament spools, which can be seen as a maintenance feature that extends the printer's versatility and reduces the need for custom spool solutions.
Anti-slip Pads: The anti-slip pads on the spool holder contribute to the overall stability of the printer, which can indirectly reduce wear and tear on components that might otherwise be subjected to excessive movement or vibration.
Haribo Time!: The inclusion of "Haribo time!" at various stages serves as a lighthearted break, but also implicitly encourages users to take their time and avoid rushing, which can lead to errors and potential damage requiring maintenance.
Documentation and Support: The emphasis on the "3D Printing Handbook" and the "Prusa Knowledge Base" provides users with comprehensive resources for ongoing maintenance, troubleshooting, and optimal operation of their printer. This includes guides on calibration, cleaning, and general upkeep.
Manual Changelog: The "Manual changelog MINI+ semi-assembly" section is a direct maintenance feature for the documentation itself, ensuring that users always have access to the most up-to-date and accurate assembly instructions, which is crucial for correct initial setup and subsequent adjustments.

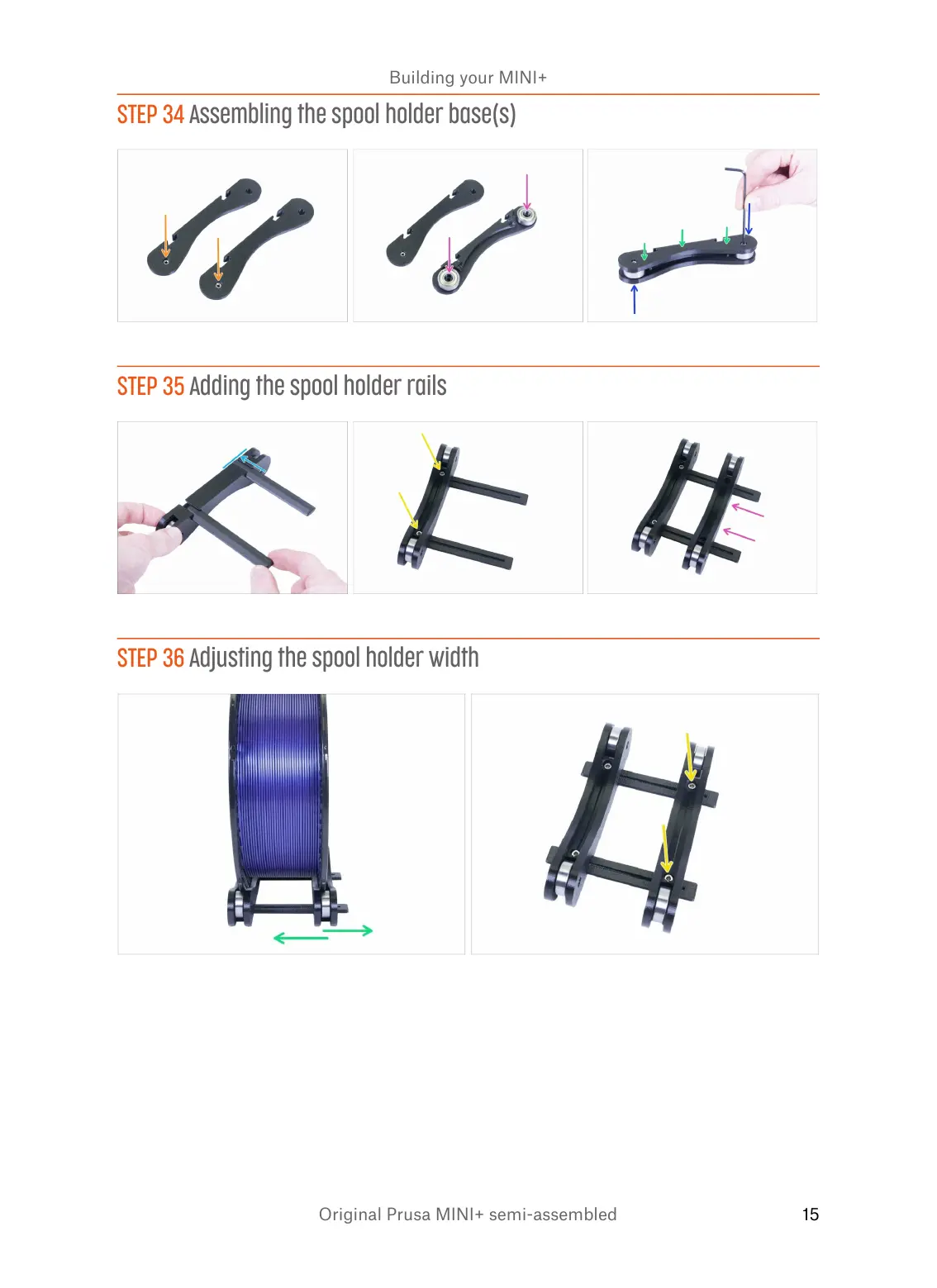

Original Prusa MINI+ - Step 34 Assembling the spool holder base(s); Step 35 Adding the spool holder rails; Step 36 Adjusting the spool holder width
