Orion HCCA BLACK COIL Series User Manual

15

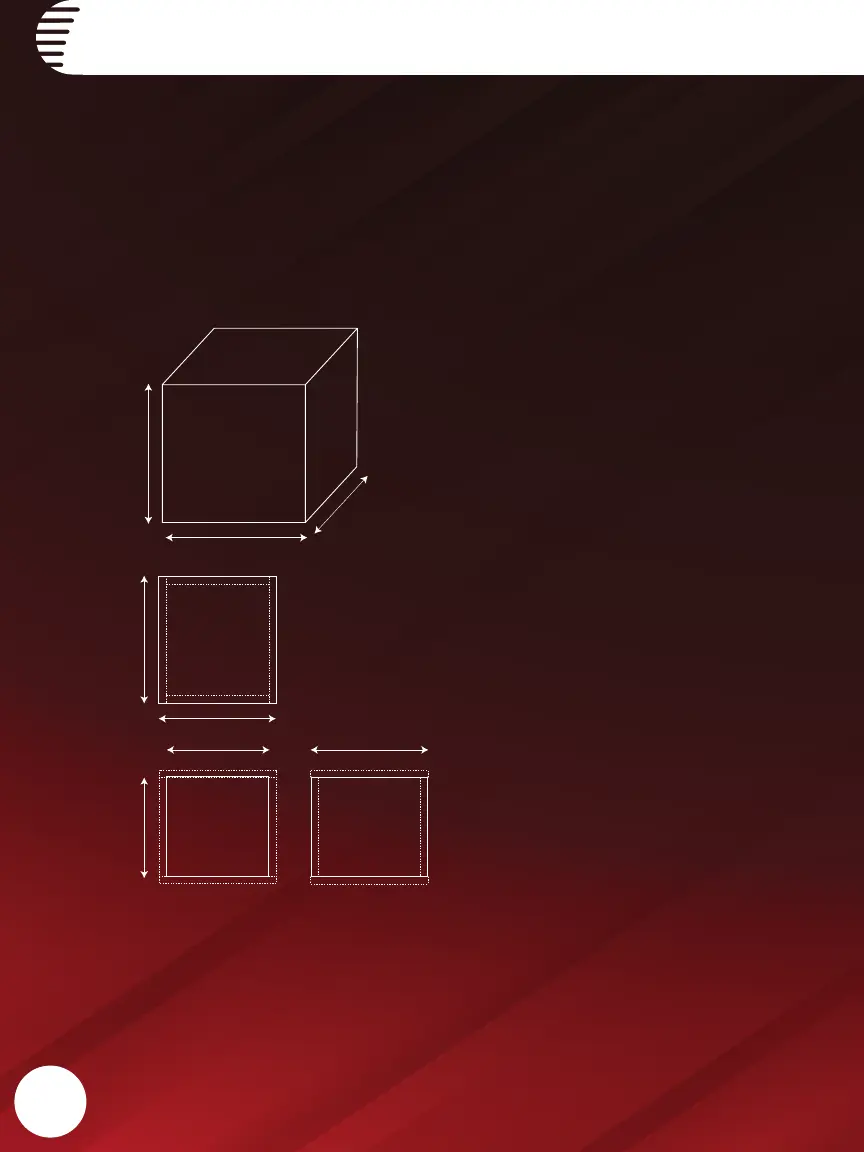

HCCA102 & HCCA104 SEALED ENCLOSURE
ENCLOSURE RECOMMENDATION
c
b
—Box Parts—
Box Shape – Square Prism
1 Top, 1 Bottom
depth (c) = 14 in. (356 mm)
width (b) = 14 in. (356 mm)
thickness = 1.0 in. (25.4mm)
1 Front, 1 Back
height (a) = 12 in. (305 mm)
width (d) = 12 in. (305 mm)
thickness = 1.0 in. (25.4mm)
2 Sides
height (a) = 12 in. (305 mm)
depth (c) = 14 in. (356 mm)
thickness = 1.0 in. (25.4mm)
— Driver Mounting —
Mounting: Front
Top &
Bottom
a
d
Front &
Back
c
Sides
A
B
C
— External Dimensions —
A = 14 in (356 mm)
B = 14 in (356 mm)
C = 14 in (356 mm)
— Internal Dimensions —
A = 12 in (305 mm)
B = 12 in (305 mm)
C = 12 in (305 mm)
— Wall Thickness —
Front = 1 in. (25.4mm)
Sides = 1 in. (25.4mm)
Box Properties
— Description —
Type: Closed Box
Shape: Prism, Square
— Box Parameters —
Vb = 0.913 cu.ft
V(total) = 1 cu.ft
Qtc = 0.537
QL = 20
F3 = 67.85 Hz
Fill = none
