Orion XTR102D User Manual

10
WIRING CONFIGURATION

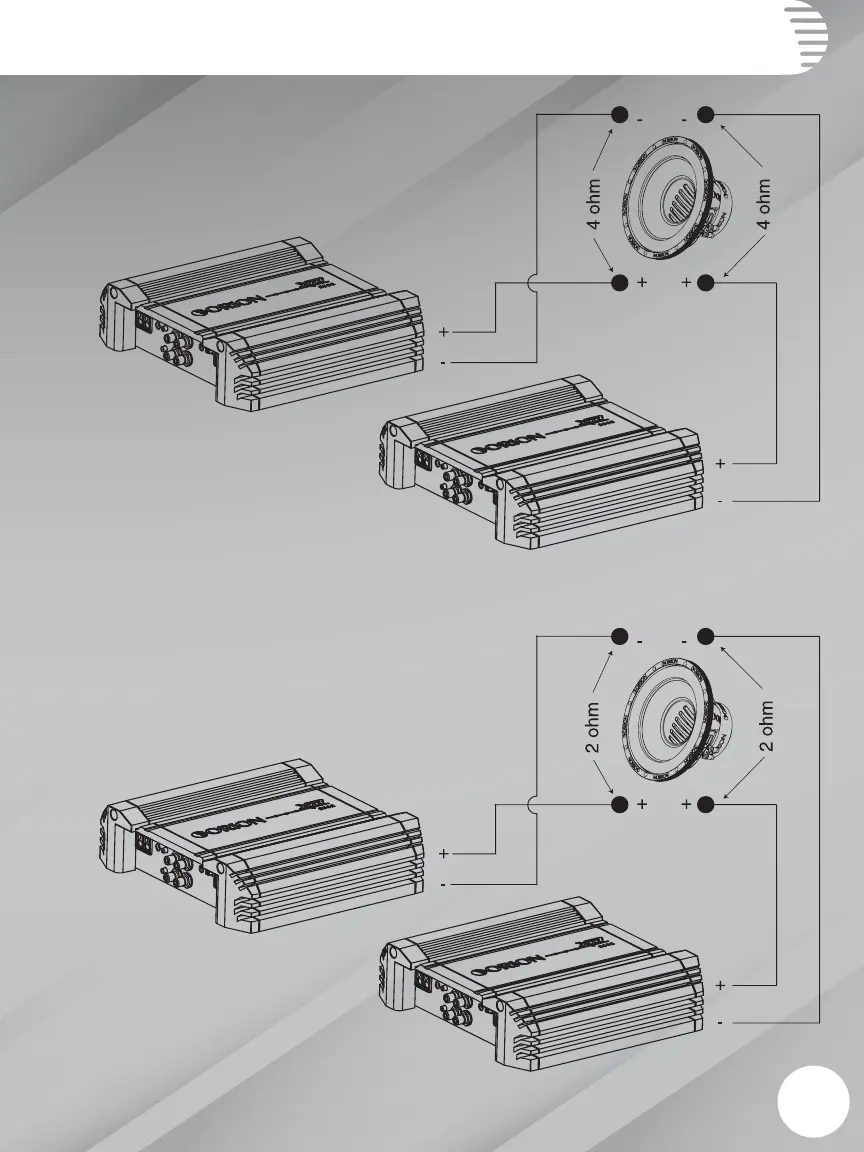

2 Amplifiers - One Speaker (Dual 2 ohm voice coils)
One dual 2 ohm voice coil woofer with each voice coil
connected to an individual amplifier, resulting in a
2 ohm load to each amplifier
2 Amplifiers - One Speaker (Dual 4 ohm voice coils)
One dual 4 ohm voice coil woofer with each voice coil
connected to an individual amplifier, resulting in a
4 ohm load to each amplifier

Orion XTR102D Specifications

General

Brand	Orion
Model	XTR102D
Category	Subwoofer
Language	English
