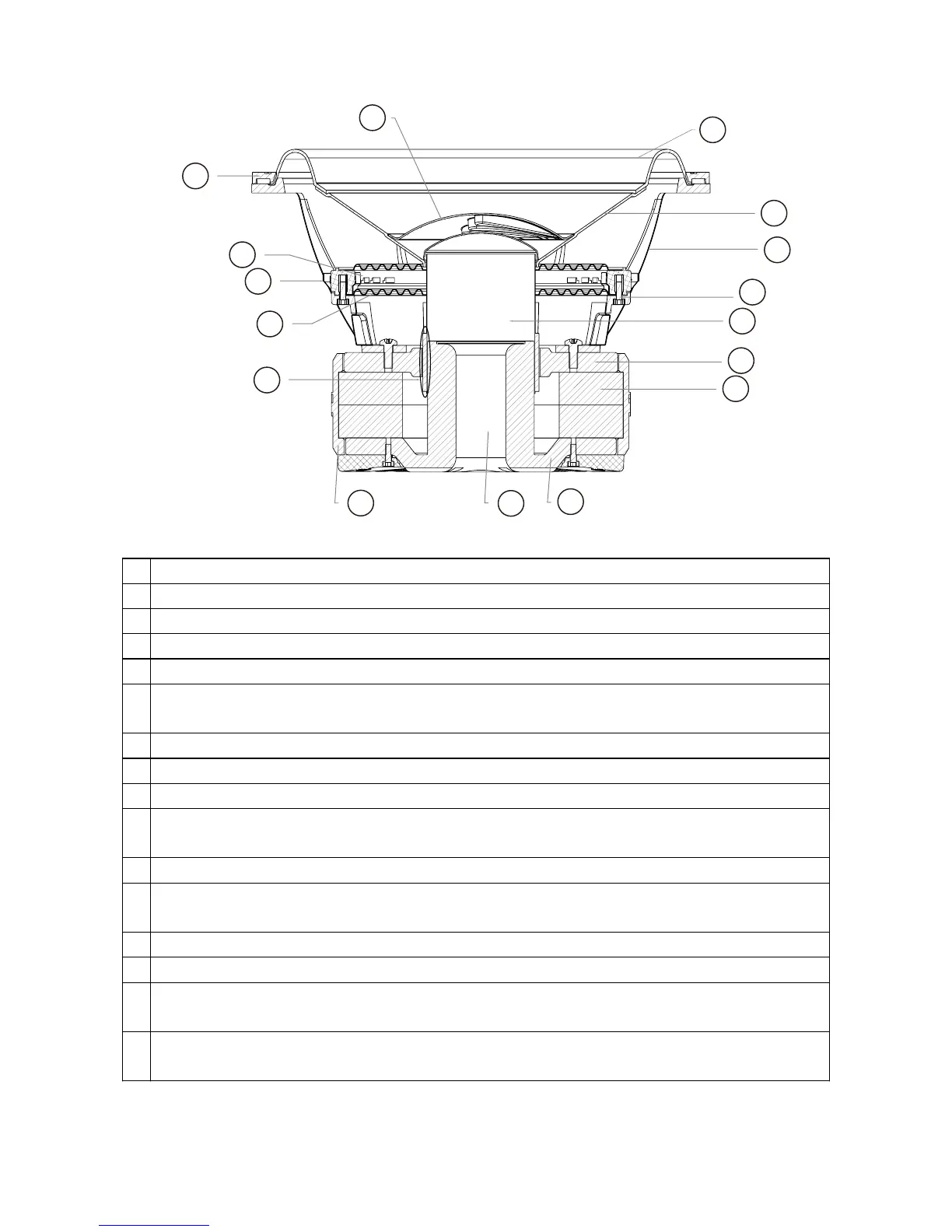

1 Polypropylene dust cap - moisture and UV resistant.
2 Oversized Santoprene surround for linear controlled long excursion.
3 Vented paper cone - moisture and UV resistant.
4 Custom stamped aluminum frame.
5 Spider ring attachment screws.Part of re-cone feature (8 hex screws)
6 Vented Kapton voice coil former (10” uses 2.5" voice coil former, 12” & 15" use a 3"
voice coil former).
7 20mm H type steel front plate
8 Large 2 stack ceramic magnets (15” use large 3 stack ceramic magnets).
9 12mm steel back plate/pole piece T yoke assembly.
10 1.2"(10” speaker) & 1.4”(12” & 15" speaker) vent. Part of the enhanced voice coil
cooling system (forced convection).
11 PVC magnet protector.
12 High temperature Aluminum voice coil wound.Dual 2 and 4 ohm voice coils
available.
13 Dual Interlaced Conex spider with stitched and looped tinsel leads attached.
14 Custom allen head screw terminals.A pair on each side(one pair for each voice coil).
15 Spider space and spider mounting ring assembly part of field re-cone kit attachment
method.(eight allen head screws).
16 Surround clamp ring,part of fiele re-cone kit attachment method.(10” & 12” use
eight allen head screws, 15” use twelve allen head screws).
