ORKEL MP 2000 - 4.3 DRIVING ON ROAD; 4.3.1- Preparation before transport

40
 



- 
1. Turn the un-loader (fork) backwards against the wrapper table. Rise the wrapper table (control box),
to allow free movement of the drag bar. The drag must be fully extended by maneuvering the handle
nr 3, unl the transport safety lock engages. See chapter 4.3.2

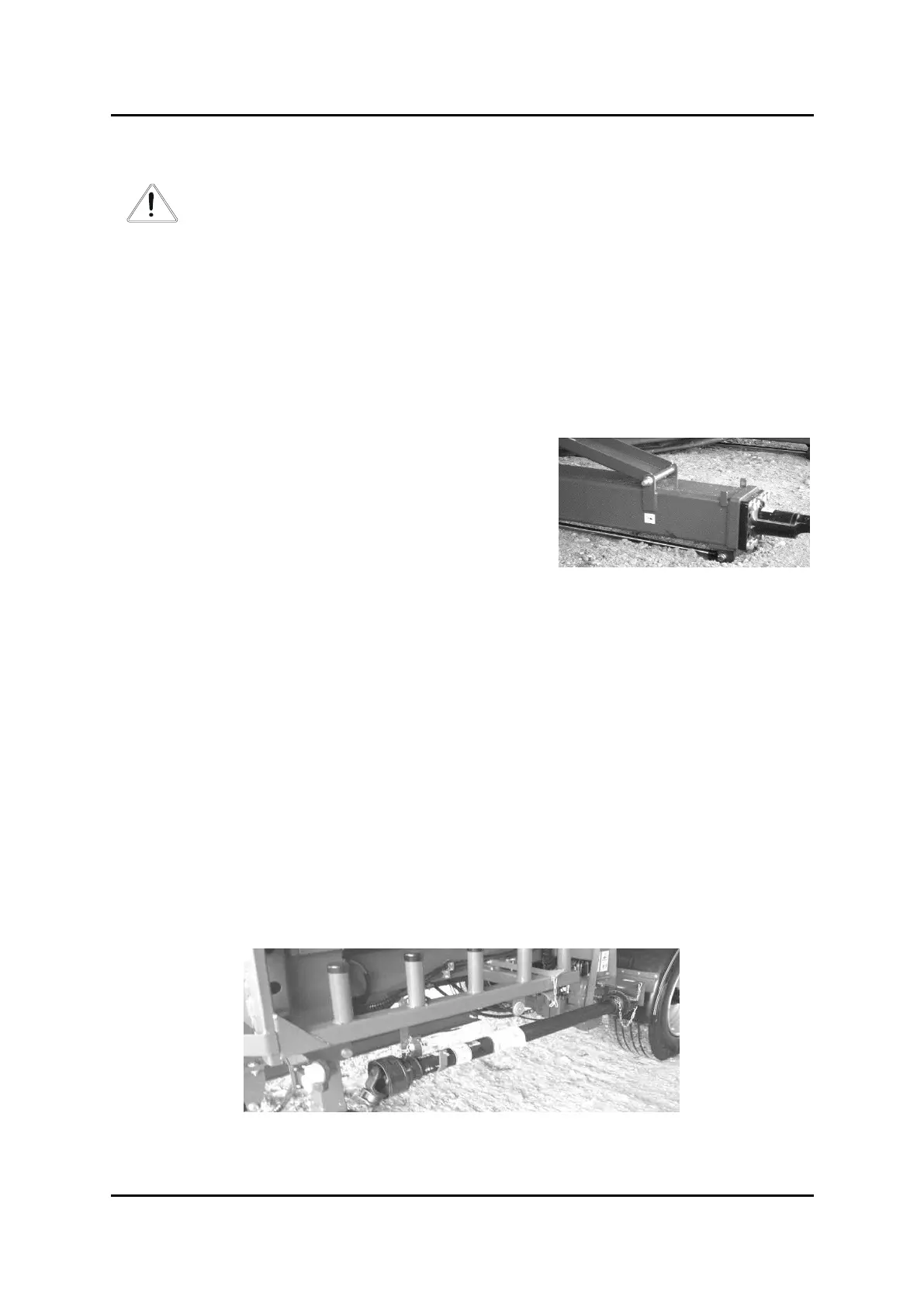

2. Pull the belt tensioner backwards. (Picture to the right)
3. Disconnect the PTO axle from tractor and secure it in
transport mode. Se picture below.
4. Dismount the side covers between feeder table and elevator.
Put the feeder table’s side covers on to feeder table. Secure
the covers along with earlier dismounted covers onto the feeder table. Also dismount the bannister
and put stairs in transport mode.
5. Rise the feeder table into transport posion, using maneuvering handle nr 6. Se chapter 4.8
6. Secure the feeder table in transport mode, by closing the valves on the feeder tables liing cylinders.
Handle nr.67 og 68 on each side. See chapter 4.9
7. Rise the four hydraulic operated jack stands completely by using the maneuvering handles nr. 1,2,4
and 5. See chapter 4.8
8. Disconnect the baery cable, hydraulic couplings and control cable. Secure all the cables and hydrau-
lic hoses from possible transport damages.
9. Connect the tractor to the drag bar.
10. Connect the light cable and the hydraulic brake hose to tractor. Perform a brake -test and check all
lights is working properly before driving o.

PTO - axle in transport mode
