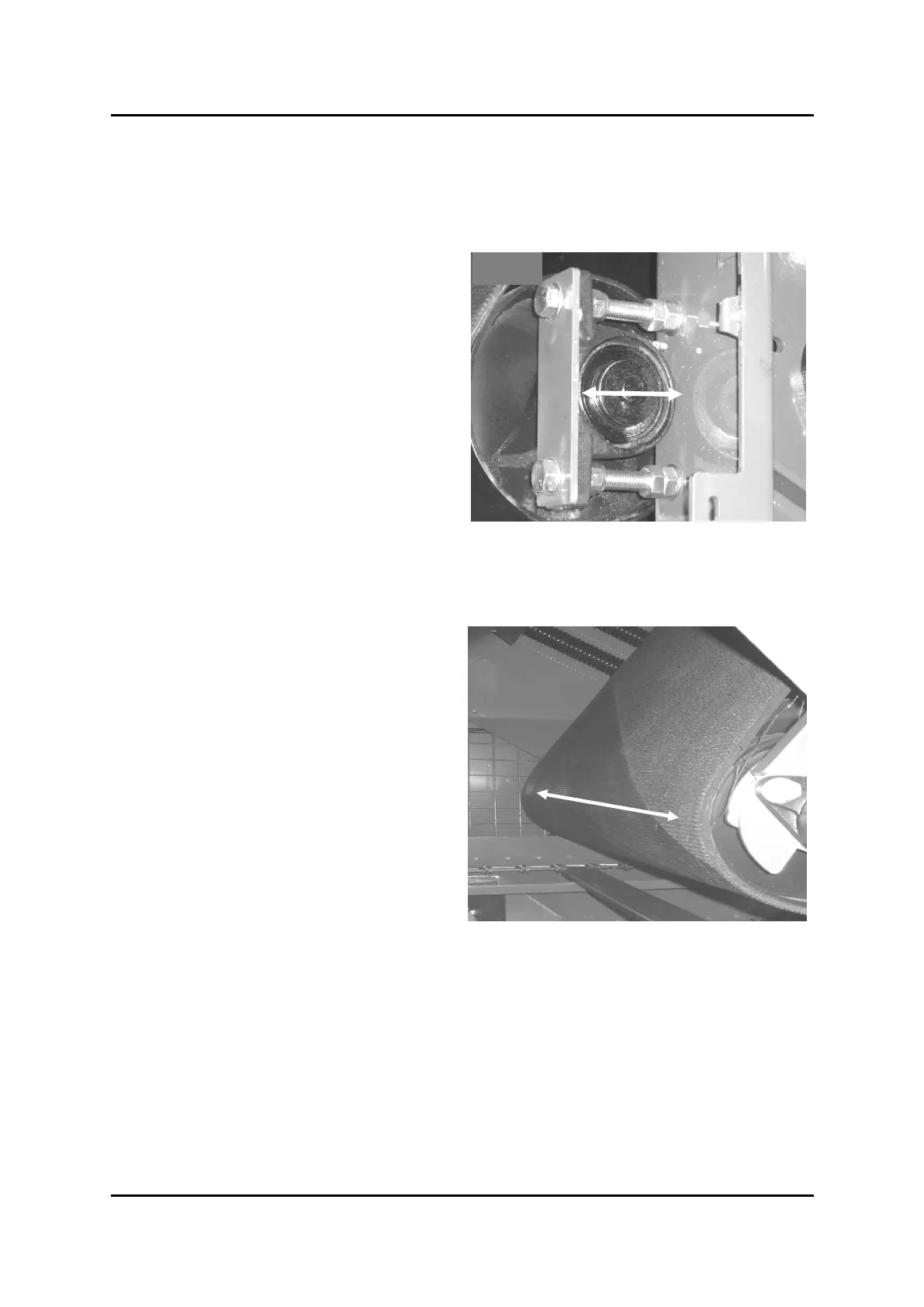

Adjusng the belt tracking is performed by changing
the distance on the roller Preferably on the right
side bracket.
By increasing the distance , the belt will enter to-
wards (picture 2) in the chamber. If decreasing the
distance the belt will enter towards (picture 2) in
chamber.
If the tracking of the belt is sll entering one of the
sides, the similar operaon must be carried out on the
le side, but in .
If increasing the distance (picture 1), the belt track-
ing will enter towards in picture 2.
Adjusng bracket, top roller
