61

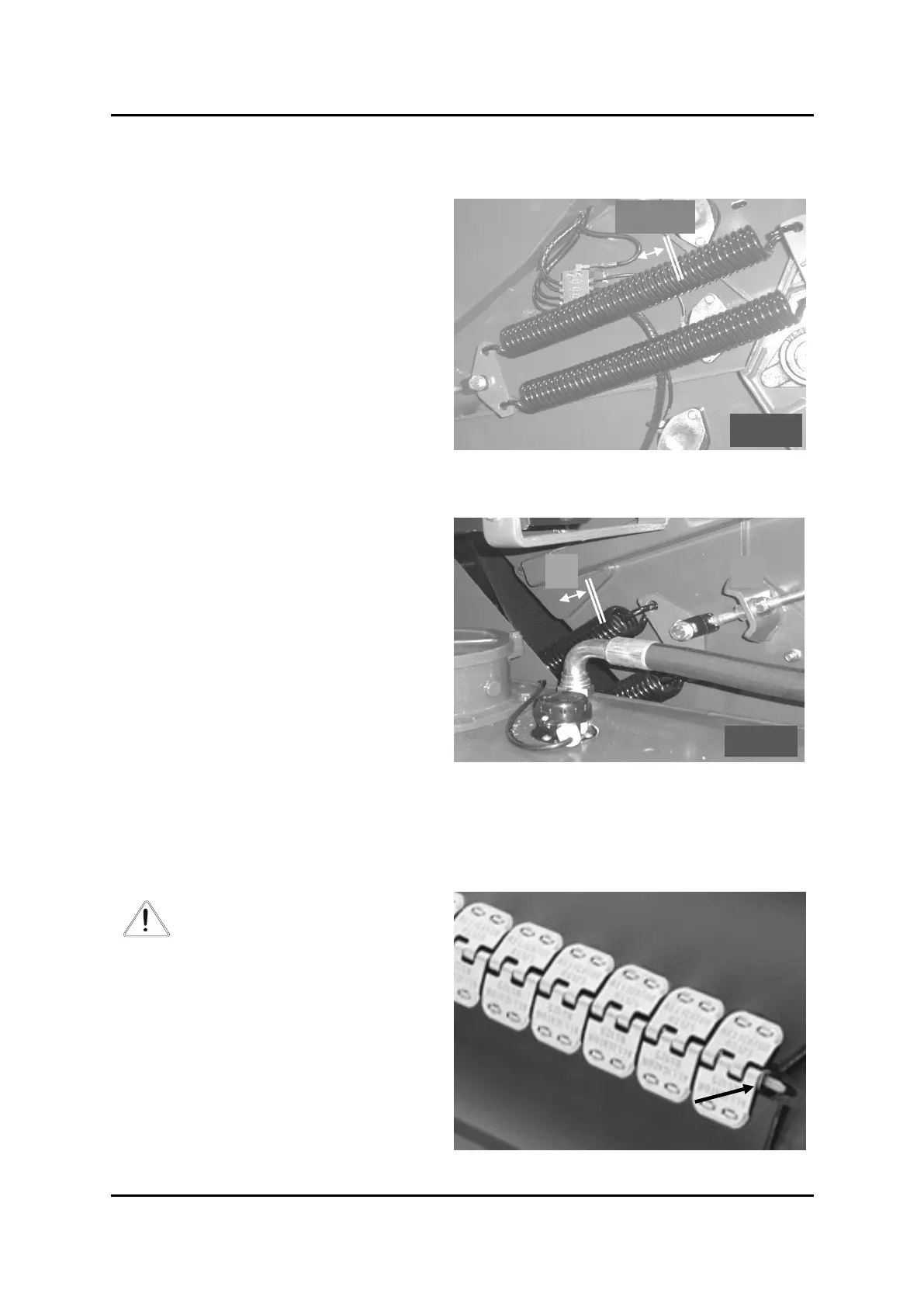

The tension of the belts is under the inuence by
the force from the twin springs on the both sides.
See picture 1
Turn the nut , (picture 2) unl there’s a clearance
of between the coils. See picture 1.
When pressing very light and dry materials,
such as hay and wooden chip, the bale might have
some problems start rotang. If such problem oc-
curs, the clearance must be reduced. A = 0 - 1mm.
Remove the damaged belt using a knife and cut the
belt crosswise. Fit the new belt into place and push
the locking rod in, to complete the belt. Secure the
locking rod by mounng the two washers on each
side. See picture 3.
Check the tracking of the belt in chamber and adjust
if necessary as described earlier in this chapter.
Belt tensioner, front. Right side.
Locking washer
Belt tensioner, rear. Le side.
