8. Maintenance and cleaning.
Use a soft cloth to remove dirt etc. from the lens.
Do not clean this product with aggressive chemicals
or abrasive cleaning agents.
The filling valve may ONLY be used by the manufacturer.
Do not remove the blue seal. See figure 9. The warranty expires when
the blue seal is broken!
Installation Manual
Figure 10
Maximum deflection turning 315
Maximum height 392
Tilt
Pan
141
261,5
Tilt 90˚ up
Tilt 90˚ down
307
299,4
112
P
a
n
3
6
0
˚
Base plate
Base
∅180
150
Base plate
Base
Base plate
Units in mm
10. Dimensions
Camera
PTZ Alu NTSC 0506961
Camera PTZ Alu NTSC 0516961 RS485
9.4. Zoomcamera
CCD sensor: 1/4 type IT CCD (EX view HAD).
Picture elements: 768 (H) x 494 (V) (ca. 380 000 pixels NTSC).
Resolution: 470 TV lines (WIDE end).
Lens: 18x zoom, F = 4,1 mm (WIDE) to 73,8 mm (TELE),
216x with optical zoom, 12x digital.
Lens speed: From wide optical to tele optical 2,1 sec. (F1,4 to F3,0
zoom movement speed).
Angle of view (H): 48° (WIDE end) to 2,8° (TELE end).
Min. working distance: 290mm (WIDE end), 800 mm (TELE end).
Min. illumination: 0,7 Lux (F1.4,
1
/60 sec. NTSC) 0,1 Lux (F1.4,
1
/4
sec. NTSC).
S/N ratio: 50 dB or more.
Power consumption: Camera unit; Temperature <0°C (heater on):
5,6W, Temperature >0°C (heater off): 3,6 W.
9.5. PTZ
Pan angle: Total 360°, 180° left, 180° right.
Tilt angle: Total 180°, 90° up, 90° down.
Backlash PTZ:1°.
Presets: 128 presets Visca and 255 presets Pelco-D.
Controls: The PTZ camera can be controlled by means of the Monitor
7” RLED Serial; article no. 0208232 or the Monitor 12” Serial art. no.
0207910.
Pan & Tilt speed: 12,5°/sec.
Power consumption: Pan & Tilt; 24V. Heating on; 12W, heating off;
8,4W (Automatic heating).
9.6. General
Housing Alu: anodised aluminium housing corrosion proof accord-
ing IEC 60068-2-52 salt mist, cyclic.
Weight Alu: 5kg, including 3,5 metre cable for installation (total 5m).
Protection: IP 69K according IEC 60529, 1,4 Bar overpressure filled
with dry nitrogen.
Operating temperature: -40°C to +85°C.
Communication: Communication via serial interface, Visca-, Pelco-D
protocol (RS232 or RS485) 9,6 Kbps.
Power input: 18...30V/DC
Fall protection: Steel cable, 2mm, including Steel cable U clamps.

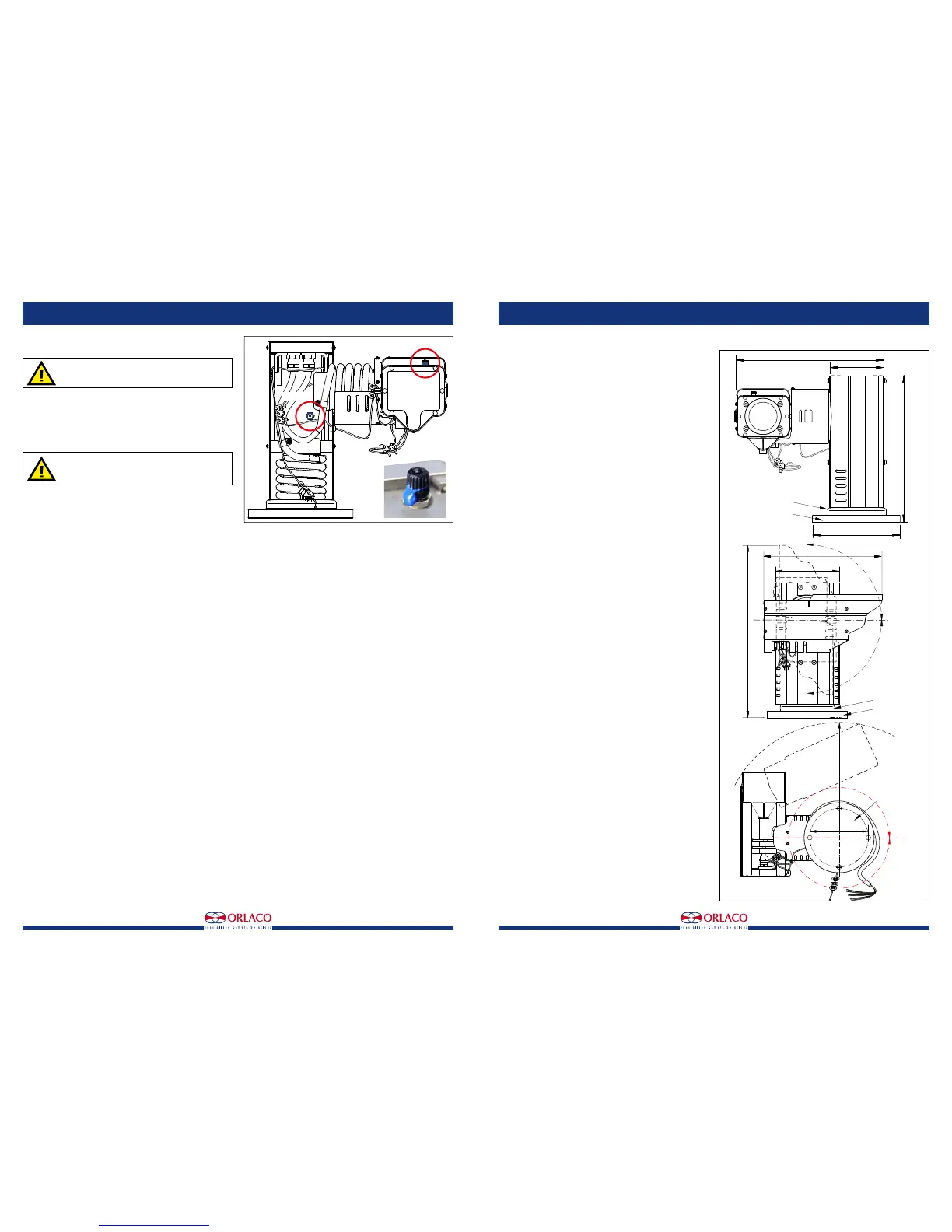

Figure 9
The warranty expires when the user does not act
according the instructions and warnings in this
manual.
Filling valve
Filling valve
9. Product specifications
Camera PTZ Sst PAL 0506911
Camera PTZ Sst PAL 0516911 RS485
Camera PTZ Alu PAL 0506952
Camera PTZ Alu PAL 0516951 RS485
9.1. Zoomcamera
CCD sensor: 1/4 type EX view HAD CCD.
Picture elements: 752 (H) x 582 (V) (ca. 440 000 pixels PAL).
Resolution: 550 TV lines (WIDE end).
Lens: 36x zoom, F = 3,4 mm (WIDE) to 122,4 mm (TELE),
432x with optical zoom, 12 x digital.
Lens speed: From wide optical to tele optical 4,0 sec. (F1,6 to F4,5
zoom movement speed).
Angle of view (H): 57.8° (WIDE end) to 1,7° (TELE end).
Min. working distance: 320mm (WIDE end), 1500 mm (TELE end).
Min. illumination: 1,4 Lux (
1
/50 sec. PAL Typical) 0,1 Lux (
1
/3 sec.
PAL Typical).
S/N ratio:50 dB or more.
Power consumption: Camera unit; Temperature <0°C (heater on):
5,6W, Temperature >0°C (heater off): 3,6 W.
9.2. PTZ
Pan angle: Total 360°, 180° left, 180° right.
Tilt angle: Total 180°, 90° up, 90° down.
Backlash PTZ:1°.
Presets: 128 presets Visca and 255 presets Pelco-D.
Controls: The PTZ camera can be controlled by means of the Monitor
7” RLED Serial; article no. 0208232 or the Monitor 12” Serial art. no.
0207910.
Pan & Tilt speed: 12,5°/sec.
Power consumption: Pan & Tilt; 24V. Heating on; 12W, heating off;
8,4W (Automatic heating).
9.3. General
Housing Sst: stainless steel 316
Housing Alu: anodised aluminium housing corrosion proof accord-
ing IEC 60068-2-52 salt mist, cyclic.
Weight Sst: 16 kg, including 3,5 metre cable for installation (total
5m).
Weight Alu: 5kg, including 3,5 metre cable for installation (total 5m).
Protection: IP 69K according IEC 60529, 1,4 Bar overpressure filled
with dry nitrogen.
Operating temperature: -40°C to +85°C.
Communication: Communication via serial interface, Visca-, Pelco-D
protocol (RS232 or RS485) 9,6 Kbps.
Power input: 18...30V/DC
Fall protection: Steel cable, 2mm, including Steel cable U clamps.
