Orlaco CCC - Page 11

11
4
1
2
3
Crimp side
6p male connector
1
2
3
4
5
6
NOTE: The camera can operate in mirror-mode.
Mirror-mode: Connect the orange wire to pin 3 red (+ 12V/DC).
Normal-mode: Connect the orange wire to pin 4 white (0V).
1 = Coax core
2 = Coax screen
3 = Red
4 = White
Shielding
(Video signal)
(Video GND)
(12V/DC )
(0V)
N.C.

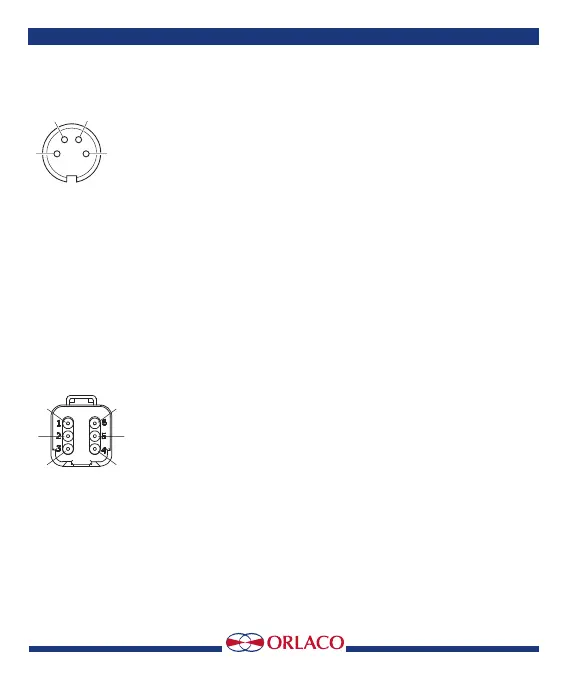

Soldering side of 4 pins male connector (1312001) (Camera with 4p connector):
1 = Coax core
2 = Coax screen
3 = Red
4 = Black
5 = Green
6 = Orange
(Video signal)
(Video GND)
(12V/DC)
(0V)
(Overall shielding)
(Mirror)
Crimp side of 6 pins male connector (1391180) (Camera with 6p connector):
Installation manual
