Orlaco CCC - Pin Connection

IM0973060 R2-6
10
4
1
2
3
4
1
2
3
1 = Coax core
2 = Coax screen
3 = Red
4 = White
Shielding
(Video signal)
(Video GND)
(12V/DC )
(0V)
connected to connector*
CCC

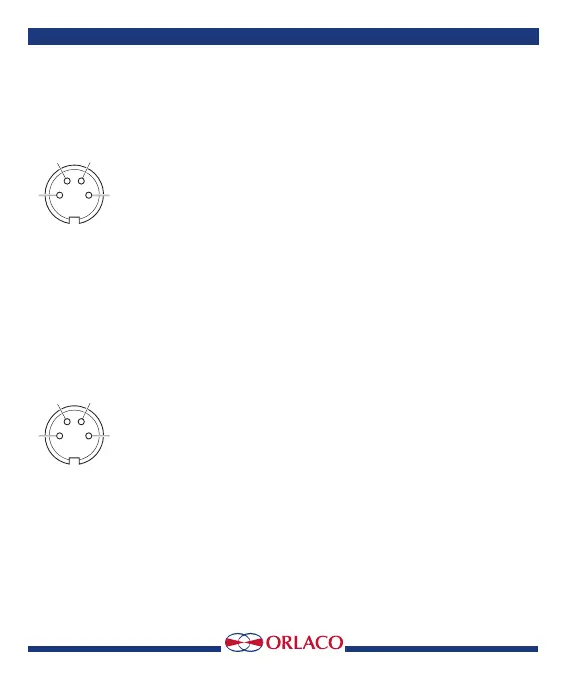

Front side of 4 pins male molded connector:
2. Pin connection
*Shielding connected to Connector housing and Camera housing:
AMOS, AMOS IR LED, MILMOS.
*Shielding connected only to connector housing:
CCC, CMOS.
1 = Coax core
2 = Coax screen
3 = Red
4 = White
Shielding
(Video signal)
(Video GND)
(12/24V/DC )
(0V)
connected to connector*
AMOS, AMOS IR LED, CMOS and MILMOS
Front side of 4 pins male molded connector:
Installation manual
