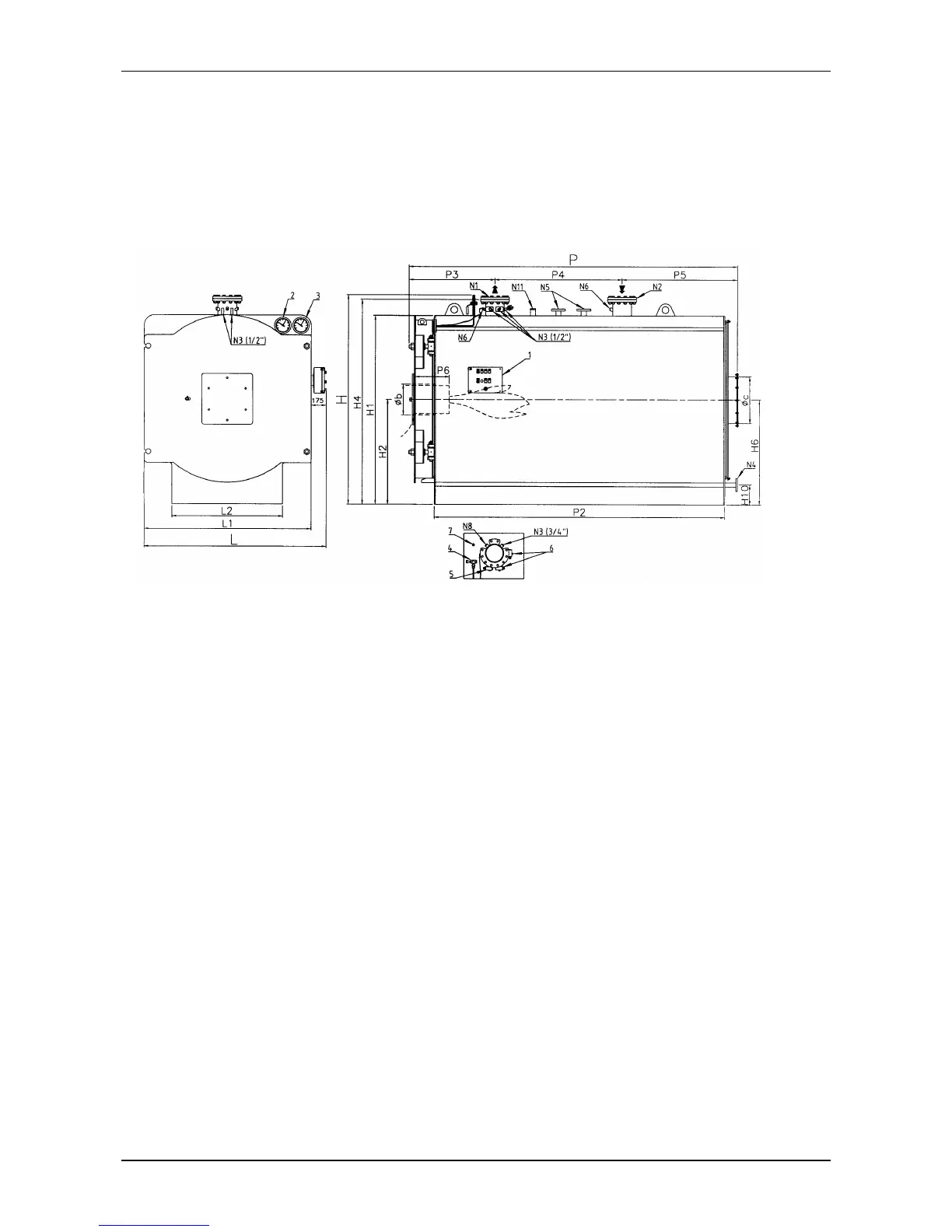

2.2 DATA DRAWING
KEY
1 Electrical panel
2 Manometer
3 Thermometer
4 Manometer holder tap
5 Regulation thermostat
6 Safety thermostats
7 Fitting for safety pressure switch (not supplied)
N1 Flow
N2 Return
N3 Fitting for instruments
N4 System filling/drainage
N5 Connections for safety valves
N6 Bulb wells
N8 Inspection well
N11 Fitting for level minimum probe
SCP PLUS 3000 - 7000
NOTE: drawing, legend and data refer to standard models. For specific models, please refer to the
provided accessory drawing.
