Orwak MULTI 9020 - Technical Specifications

8
A=2470
B=2480
C= 968
D=1135
E=1380
F=2175
A
E
F
B
C
D
A=2470
B=2480
C= 968
D=1135
E=1380
F=2175
A
E
F
B
C
D
SWEDEN
BALER
9020ORWAK
ON
SWEDEN
BALER
9020ORWAK
ON
SWEDEN
BALER
9020ORWAK
ON
581 kg1010 kg
SWEDEN
BALER
9020ORWAK
ON
Orwak 9020 (divided)
91 316-02
SWEDEN
BALER
9020ORWAK
ON
SWEDEN
BALER
9020ORWAK
ON
SWEDEN
BALER
9020ORWAK
ON
581 kg1010 kg
SWEDEN
BALER
9020ORWAK
ON
Orwak 9020 (divided)
91 316-02
1057 kg 528 kg
A
E
B
C
D
F
A=2470
B=2480
C= 968
D=1135
E=1380
F=2175
A
E
F
B
C
D
English
Transport height:
~1900 mm / 6’3’’

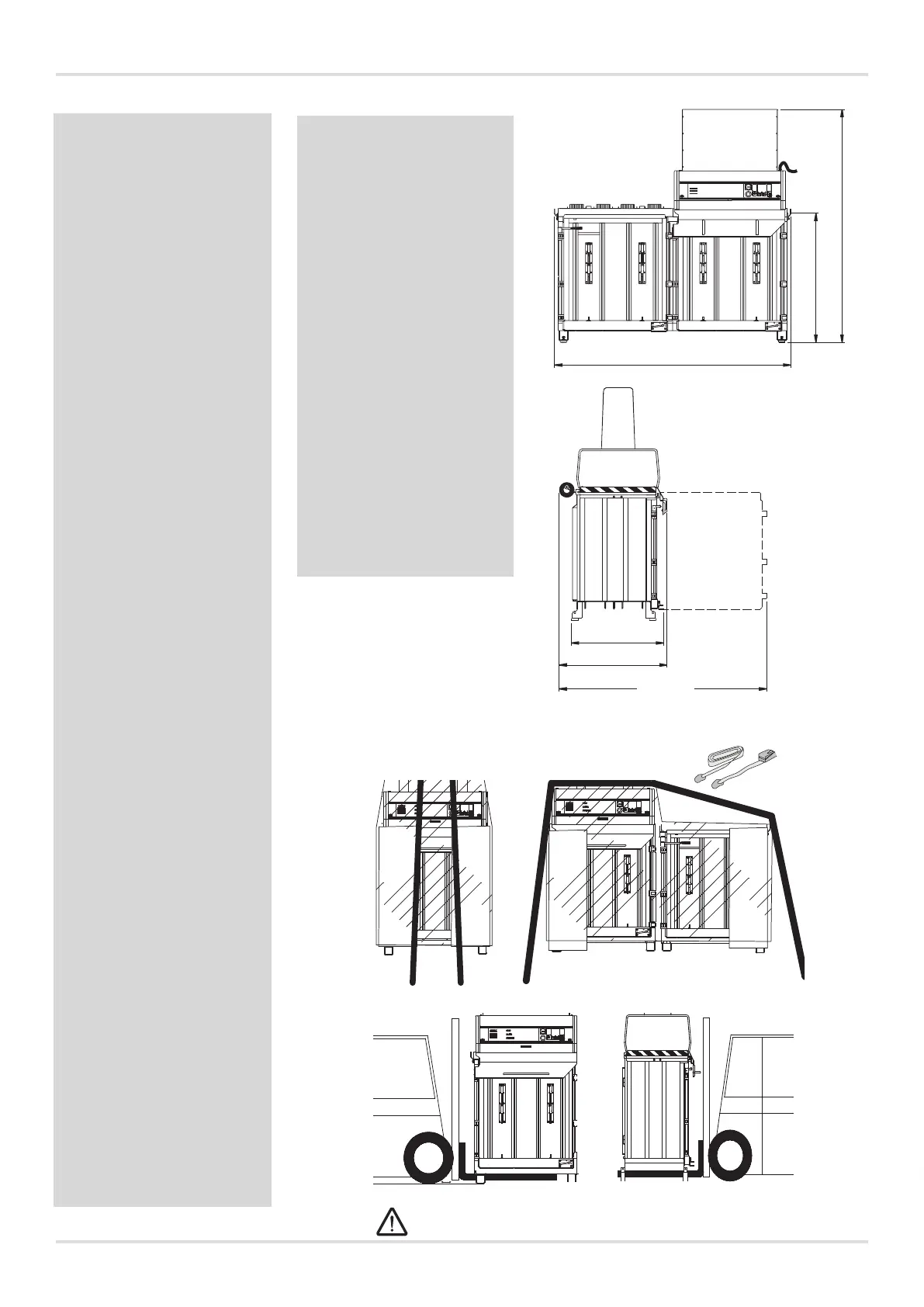

DIMENSIONAL DRAWING
TRANSPORT
The machine has a high centre of gravity. The press plate
must be fully lowered when the machine is moved.
GENERAL DATA
Total weight 1585 kg/3495 lb
Chamber 528 kg/1165 lb
Press unit 529 kg/1166 lb
Dimensions
Transport height 1900 mm/6’3’’
Height 2470 mm/8’2’’
Width 2480 mm/8’2’’
Depth 1135 mm/3’3’
Recommended oor space for a
machine in operation
Height 2470 mm/8’2’’
Width 3680 mm/12’
Depth 2775 mm/9’
Loading aperture
Depth 700 mm/27’’
Width 1100 mm/43’’
Chamber dimensions
Height 1120 mm/44’’
Width 1100 mm/43’’
Depth 700 mm/27’’
Bale size
Height approx. 800 mm/31’’
Width 1100 mm/43’’
Depth 700 mm/27’’
Weight, plastic Up to
300 kg/664 lb
Weight, cardboard Up to
200 kg/440 lb
Bale strap
(corrugated
cardboard)
VG13,
4872248-00
Bale strap
(plastic)
VG13HD,
4872305-00
Noise level 72 dB (A)
Paint: Two-part paint and powder
coat with phosphating as base.
ELECTRICAL DATA(50Hz)
Operating
voltage
3x400-415V, 50Hz
3x230V, 50Hz
3x200V, 50/60Hz
Control voltage 24V DC
Electrical
connection
5-pin CEE plug.
5 m power
supply cable
Fuse, plug 16 A
Electric motor 3 kW, ~2850 rpm
Rated current Please refer to the
label on the motor
ELECTRICAL DATA (60Hz)
Operating
voltage
3x208V, 60Hz
3x440/460V, 60Hz
Control
voltage
24V DC
Electrical
connection
5-pin CEE plug.
5 m power
supply cable
Fuse, plug 16 A
Electric motor 3.6 kW, ~3420 rpm
Rated current Please refer to the
label on the motor
TECHNICAL SPECIFICATIONS
HYDRAULIC DATA
Working pressure 100/200 bar
Overload pressure 230 bar
Regenerative
load relief
100 bar
Press force 12/20 tons
(120/200 kN)
Compaction
pressure/cm²
1.6 kg (12 tons)
2.6 kg (20 tons)
Cycle time, total 35 secs
Piston stroke 710 mm
Oil volume, tank 12 L/3.17 gal.
Oil volume, total 16.5 L/4.36 gal.
Recommended oil
+5°C to + 60°C
(41°F to 140°F)
ISO VG 32-68,
Mineral oil
Below 5°C
(Below 41°F)
A special oil
may be needed
at lower
temperatures.
Protection class IP55
Baling mechanism
Gas type: Nitrogen N
2
