Installation and Operation Manual - Osburn 1700-I
ENGLISH
1
7
1
/4
"
4
38
m
m
8
3
/4
"
2
2
1m
m

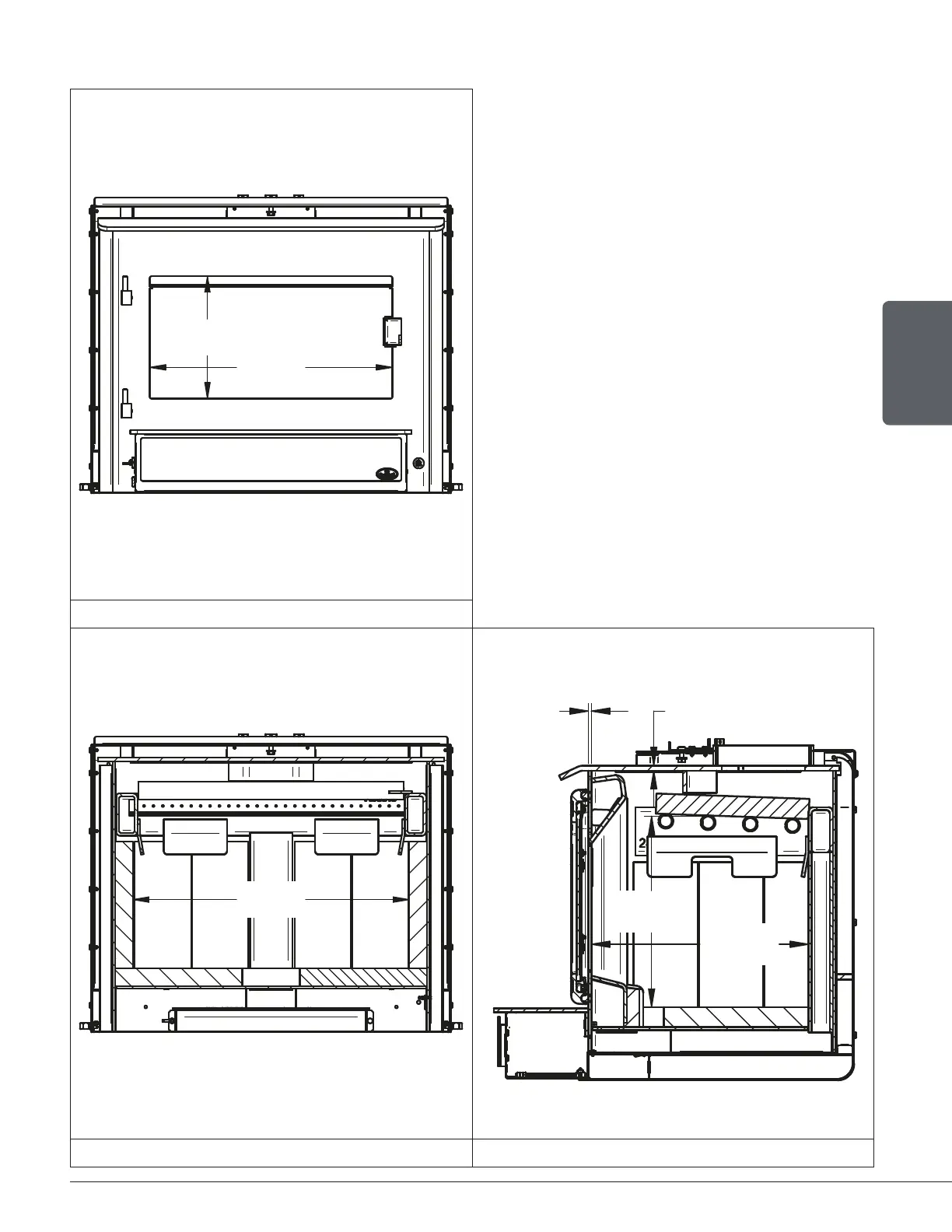

Figure 5: Door Opening
19
5
/8
"
4
9
8m
m
1
1
7
/8
"
3
01
m
m
1
3
1
/2
"
34
3
m
m
5
/1
6
"
8
m
m
3
/
16
"
5
m
m
Figure 6: Front View - Combustion Chamber
Figure 7: Side View - Combustion Chamber
10
12
Table of Contents
Default Chapter
4
Table of Contents
4
1 Safety Information
7
Part a - Operation and Maintenance
7
2 General Information
8
Performances
8
Specifications
9
Dimensions
10
Materials
12
Zone Heating
12
Emissions and Efficiency
13
3 Fuel
13
Tree Species
14
Log Length
14
Piece Size
14
Compressed Wood Logs
14
Drying Time
15
4 Operating the Insert
16
Blower
17
Fire Screen
17
5 Burning Wood Efficiently
18
First Use
18
Lighting Fires
18
Combustion Cycles
19
Rekindling a Fire
20
Removing Ashes
20
Air Intake Control
21
Fire Types
21
6 Maintenance
23
Insert
23
Glass Door
23
Door
25
Exhaust System
26
7 Masonry Fireplace Requirements
28
Fireplace and Chimney Condition
28
Chimney Caps
28
Adjacent Combustibles
28
Opening Size
28
Masonry Fireplace Throat Damper
28
Part B - Installation
28
8 Safety Information and Standards
29
Regulations Covering Insert Installation
29
Certification Label
29
9 Clearances to Combustible Material
30
Installation of a Combustible Mantel Shelf
30
Floor Protection
30
Minimum Masonry Opening and Clearances to Combustibles
33
10 The Venting System
34
General
34
Block-Off Plate
34
Suitable Chimneys
34
Chimney Liner Installation
35
Liner Connection
35
Minimum Chimney Height
37
Chimney Location
37
Supply of Combustion Air
38
Appendix 1: Blower and Ash Lip Installation
39
Appendix 2: Door Overlay Installation
40
Appendix 3: Optional Fresh Air Intake Kit Installation
41
Appendix 4: Faceplate and Trims Installation
42
Appendix 5: Optional Fire Screen Installation
46
Appendix 6: Air Tubes and Baffle Installation
47
Appendix 7: Removal Instructions
49
Appendix 8: Exploded Diagram and Parts List
50
