Page 39
Installation and Operation Manual - Osburn 1700-I
ENGLISH

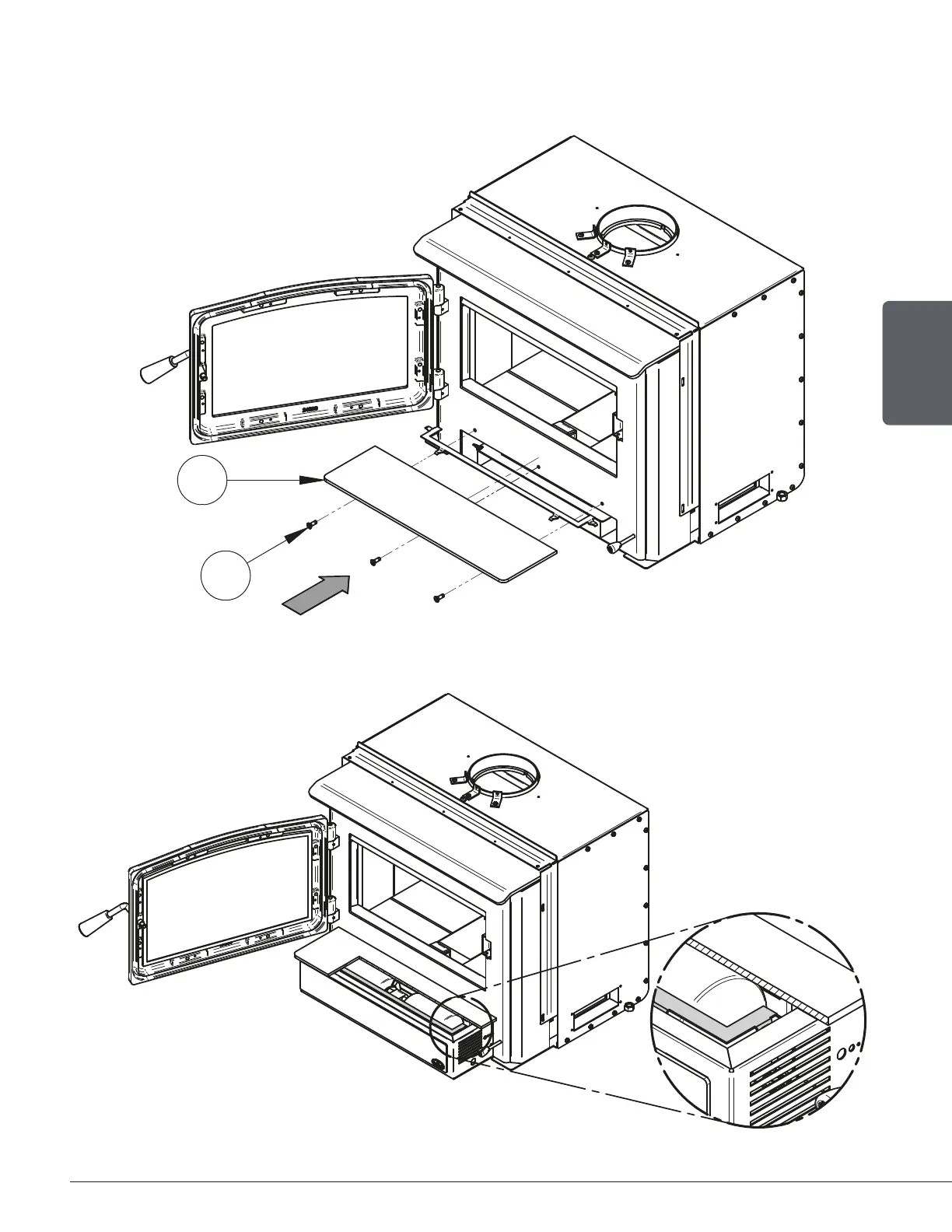

APPENDIX 1: BLOWER AND ASH LIP INST
ALLA
TION
1.
Install the ash lip
(A)
on the insert with three scr
ews
(B)
.
A
B
2.
Center the blower on the ash lip and push it against the firebox. Then push it until it clips.
38
40
