OSD Audio SRT4 GEN2 User Manual

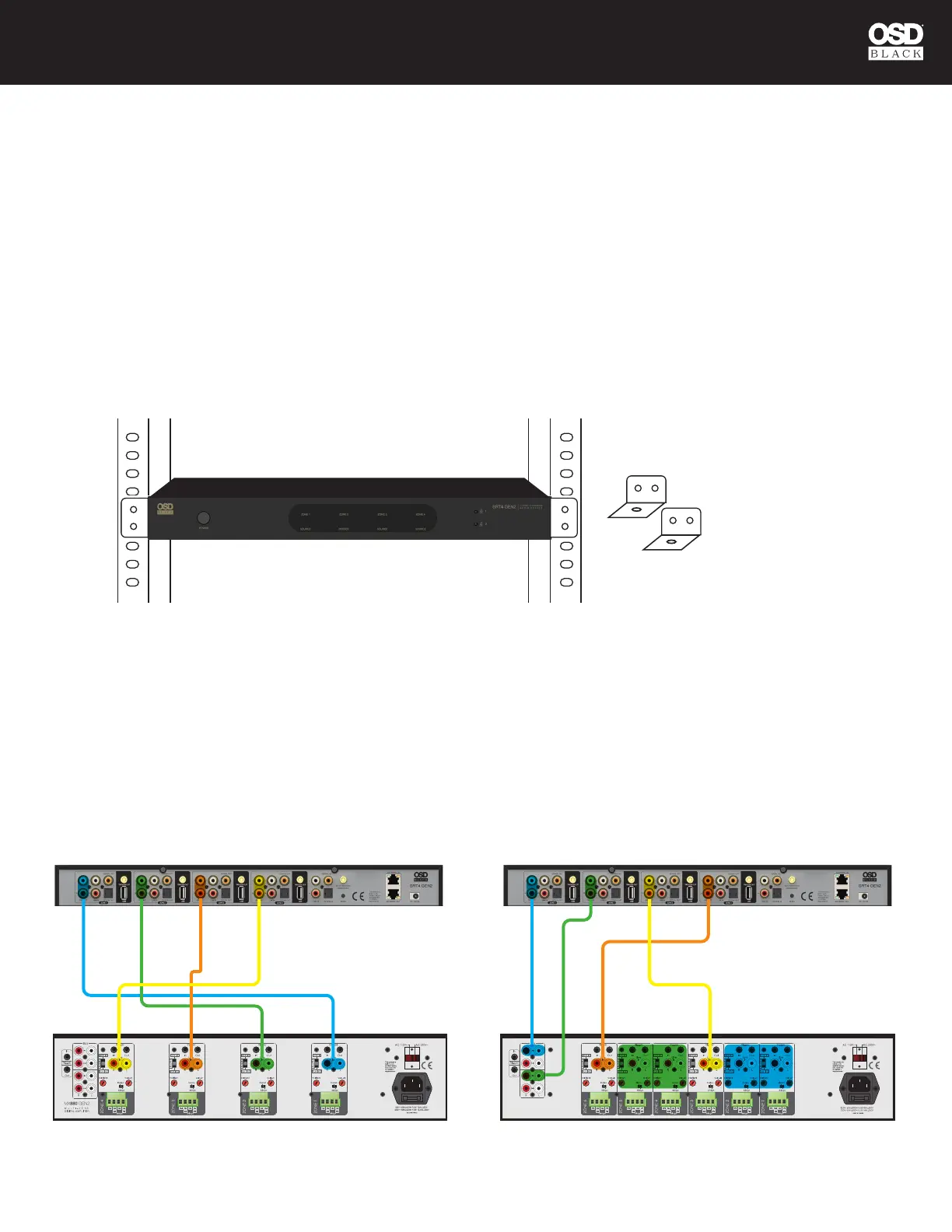

CONNECTION
The SRT4 Gen2 is a Four Zone Preamp Audio Streamer that works well with our MX Gen2 Series of Multi-
ChannelPowerAmpliers.TheSRT4Gen2shouldbeplacedclosetotheMultiChannelPowerAmplier.
TheSRT4Gen2isdesignedtota1Uequipmentrackforeasyinstallation.AttachtheoptionalRackMount
Earsincludedintheboxonbothsidesofthemainchassis.ItisdesignedtomountinastandardEIAcertied
equipment rack.
Remove the two screws on each side of the SRT4 Gen2. Align the rack mounts with the screw holes and
make sure the screw are tightly secured.
The following two wiring diagrams features a straight Four Zone to Four Zone connection utilizing our MX880
Gen2 Power Amp with the SRT4 Gen2. And a second diagram featuring a Four Zone to our Six Zone MX1280
Gen2 Multi-Zone Power Amp with two direct Zone connections and Two Zones Connecting to Four Zones
utilizing the Dual Universal Bus Inputs.
Rack Mount Ears
Included
Placement
Connecting with Multi Channel Options
MX1280 GEN2
MULTI-ZONE
DIGITAL AMPLIFIER
MX1280 GEN2
MULTI-ZONE
DIGITAL AMPLIFIER
BUS 1
Input
BUS 2
Input
BUS 2
Input
BUS 1
Input
SRT4 GEN2 SRT4 GEN2
MX880 4-ZONE AMP
Input 4 Input 3 Input 2 Input 1 Input 6 Input 3
MX1280 6-ZONE AMP

OSD Audio SRT4 GEN2 Specifications

General

Brand	OSD Audio
Model	SRT4 GEN2
Category	Media Player
Language	English
