OSD Audio SRT4 GEN2 User Manual

CONNECTION
Connect to Audio Playback Devices

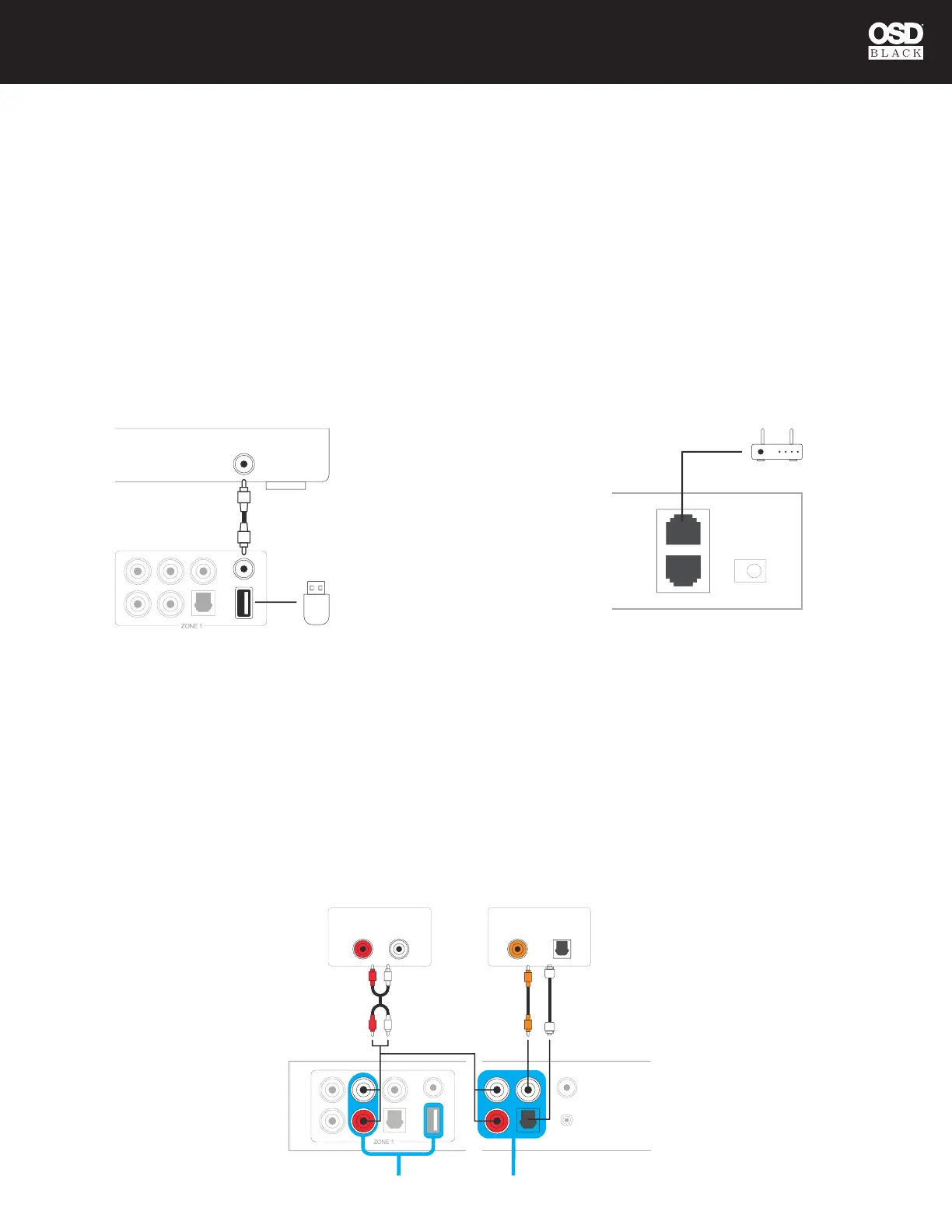

Connect the LINE IN in each zone or LINE IN, COAXIAL IN, OPTICAL IN in the Universal bus Input area to an
audio playback device, it can be a CD Player, portable Music Player or any device with Audio Output using the
same connector.
In the APP, LINE IN in each zone is represented as Line in 1, LINE IN in the Universal input area is noted as
Line in 2.
Trigger Control
Connect to USB Device Connect to a Network / or Slect Smart Home Control
IftheaudioamplierconnectedtotheSRT4Gen2hasatriggerinputconnector,youcanconnectittothe
TRIGGER OUT of the SRT4 gen2 using a 3.5mm cable (not included). A 12V150mA signal is output from
the TRIGGER OUT port. Use a monaural mini-plug cable for connecting the TRIGGER OUT port. Do not
use a stereo (AUX) mini-plug cable.
To play music stored in a USB storage device, just plugin a USB
Jump/PendrivestoragedevicecontainingmusiclestotheUSB
port of the Zone you want them to play through.
Connect SRT4 Gen2 to your home router using a LAN network
cable. Wi-Fi not supported. You can use the NETWORK OUT port
to connect another device to the same network.
TRIGGER IN
USB memory
device
ROUTER
Analog Device
Zone Inputs BUS Inputs
Digital Device
R L
———— AUDI
O
O
UT ———
—
———— AUDI
O
O
UT ———
—
COAXIAL OUT OPTICAL OUT
