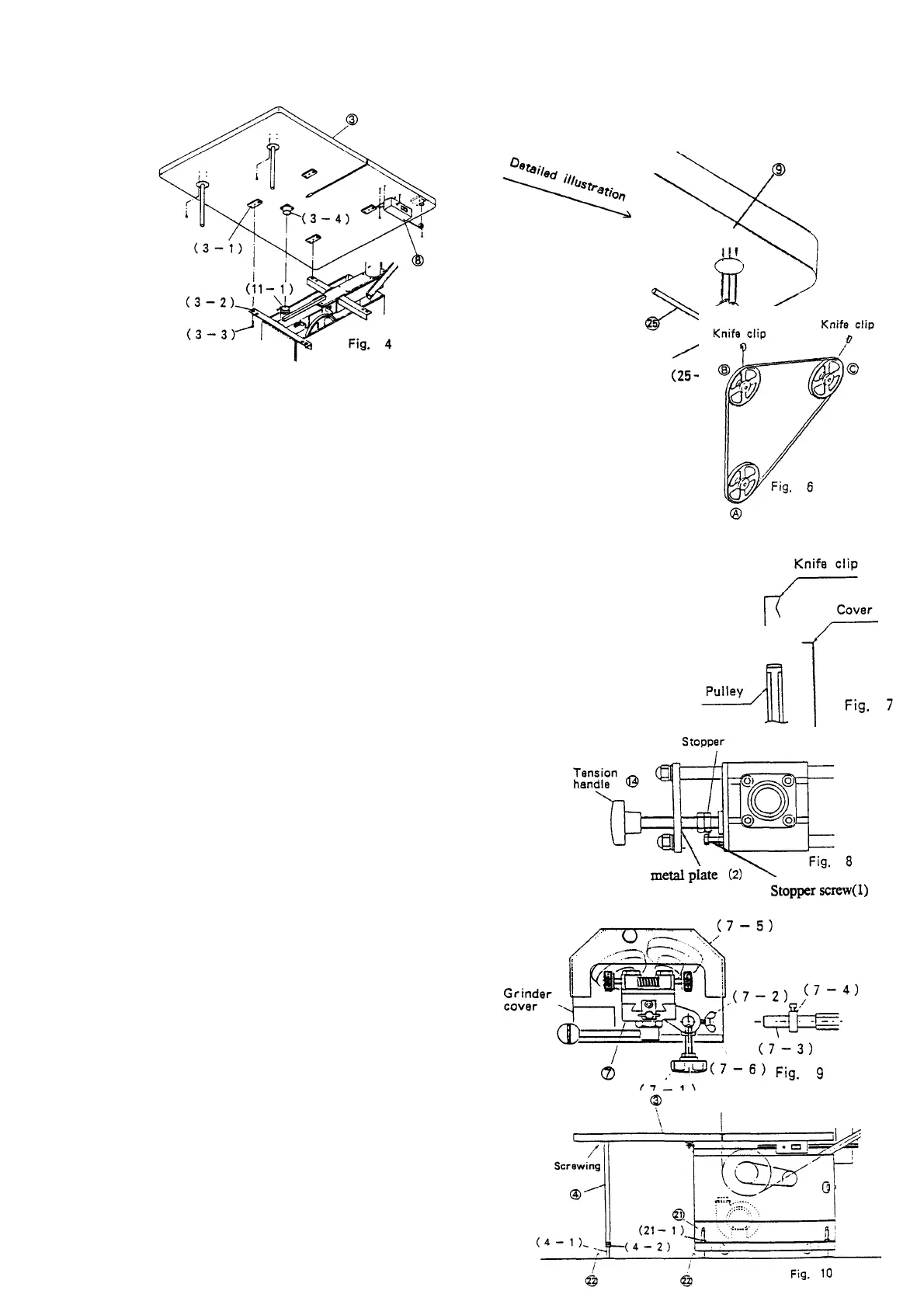

3 Assembly of knife (see fig.6.7.and
8.)
A new knife is coiled. Uncoil the knife carefully.
Install the knife to the pulley (B) and hold the knife on the pulley
with the knife clip. Install the knife similarly on the pulley (C).
4 Finally install the knife on the pulley (A). Turn the tension
handle (14) till stopper screw comes into contact with metal
plate (2) to stretch the knife. On completion of stretching,
remove the knife clips and turn the pulleys by hand.
The knife will be naturally settled in the middle of the pulleys.
(Caution)
Disconnect the power supply plug for safety prior to installing
the knife. It is recommended to put on stainless
steel mesh gloves (safety gloves) for installing
the knife.
5 Assembly of grinder (see fig. 9)
Set the grinding stone grit tray (6-7) to the
grinder cover.
Slip the grinder unit (7) onto the shaft
(7-3) and push the unit inwards till it
comes into contact with the
positioning collar (7-4).
Align the point of the knob (7-1) with
the V-groove of the shaft (7-3) and
screw in the knob.
Screw in the wing screw (7-2) too.
Finally attach the front cover (7-5).
