Step 2 Adjust your cable length
g. Thread fittings into bung hole of tank and tighten with
a wrench. Note: Be careful not to over-tighten as the
plastic fittings can get damaged;
h. On the final torque, ensure the cable is facing towards
the communicator;
i. Carefully push the cable through the elbow to ensure
you leave a little extra cable inside (3-4 inches for tanks
shorter than 6 feet. 5-10 inches for tanks taller than 6 feet);
Note: DO NOT leave too much cable inside as it could skew
level readings. Guidelines above must be followed closely.
Step 3 Secure lead in place
j. Tighten the cover nut at the elbow to fix cable in place.
Step 4 Connect
k. Connect cable to communicator.

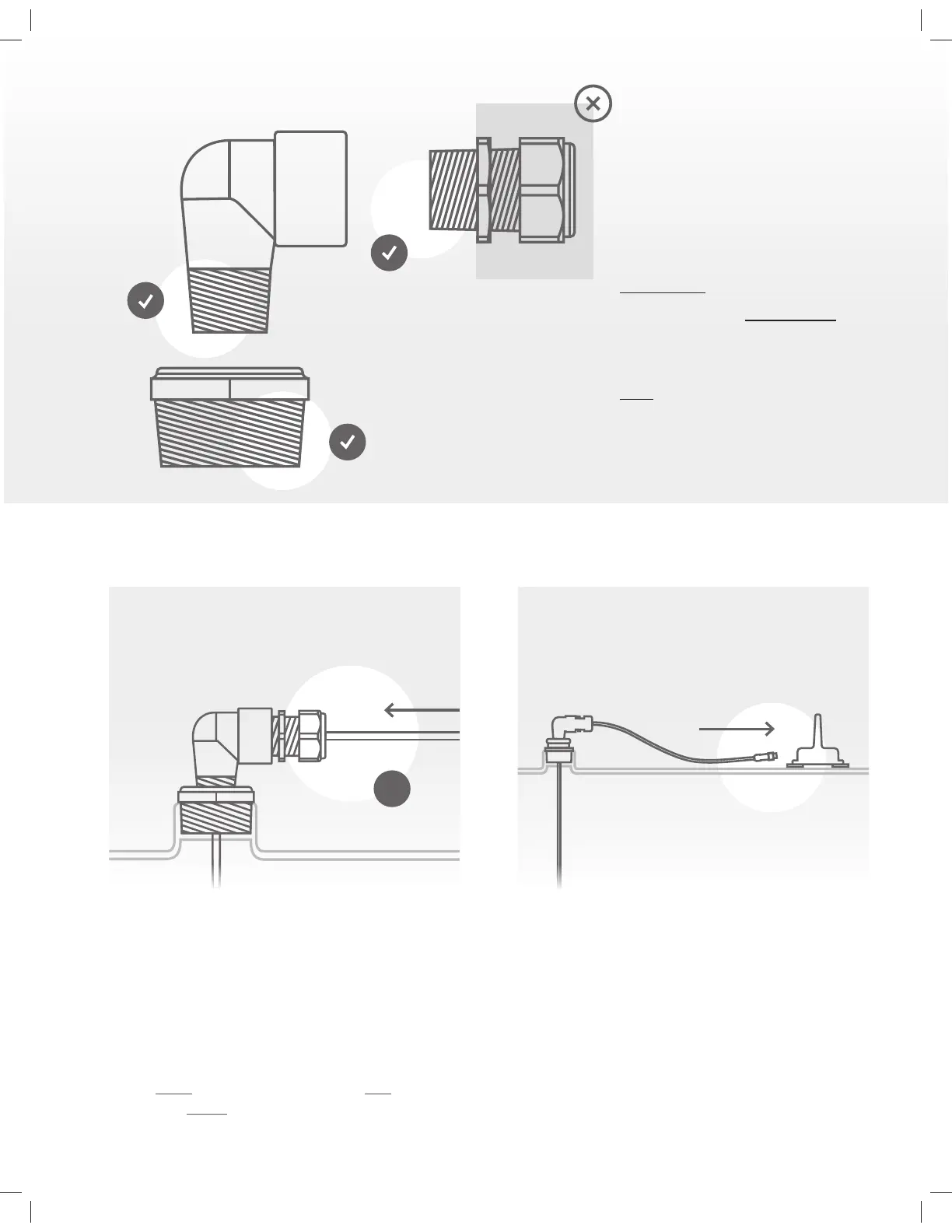

Preparation
DO NOT apply Teflon
tape on the front nut
of the cord grip.
DO apply Teflon tape
on the NPT connections.
