PREPARATION BEFORE INSTALLATION

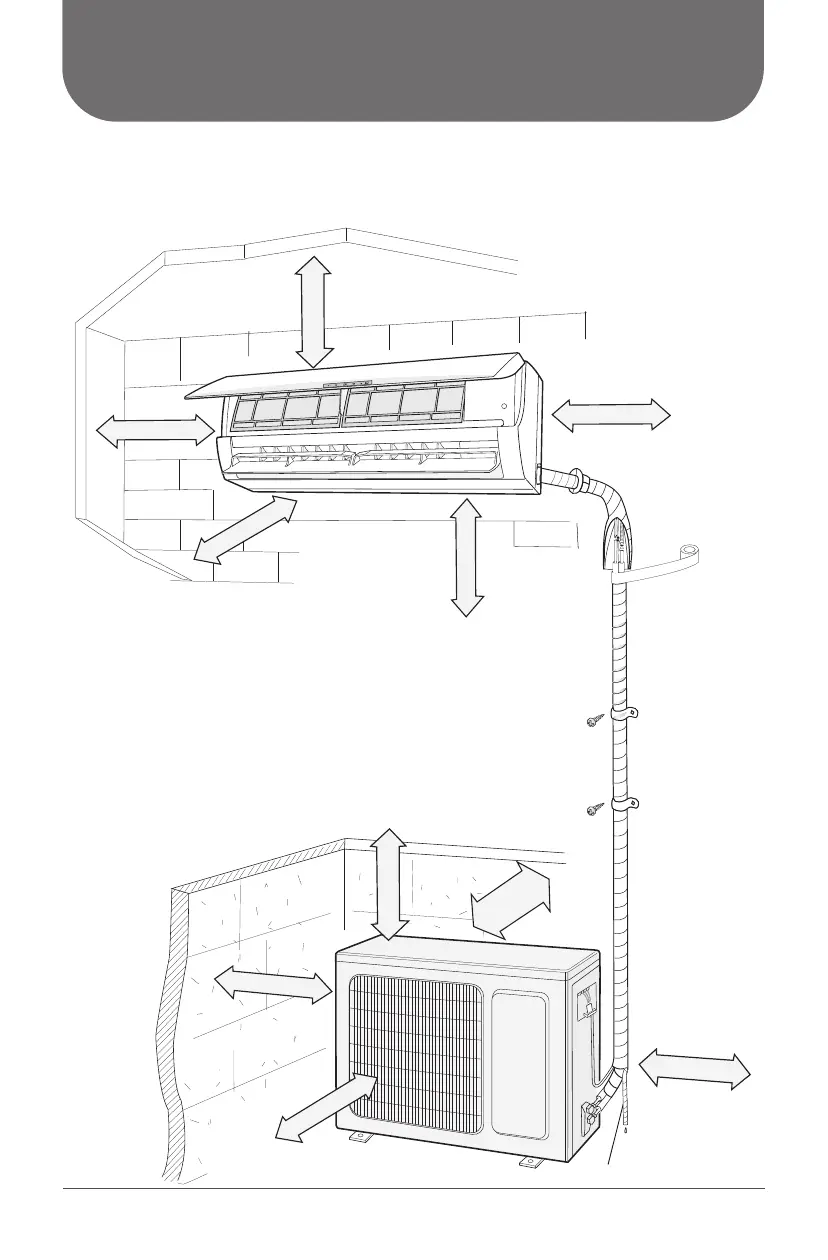

REQUIRED INSTALLATION CLEARANCE DISTANCES DIAGRAM
At least 15 cm
Space to the ceiling
Space to the wall
Space to the wall
At least 15 cm
At least 15 cm
At least 183 cm
Space to the floor
At least 300 cm
Space to the obstruction
Space to the obstruction
Space to the obstruction
Space to the
obstruction
Drainage pipe
Space to the obstruction
At least 50 cm
At least 30 cm
At least 200 cm
At least 50 cm
At least 30 cm
Space to the wall
