Installation
900-0021-01-00 Rev B 23

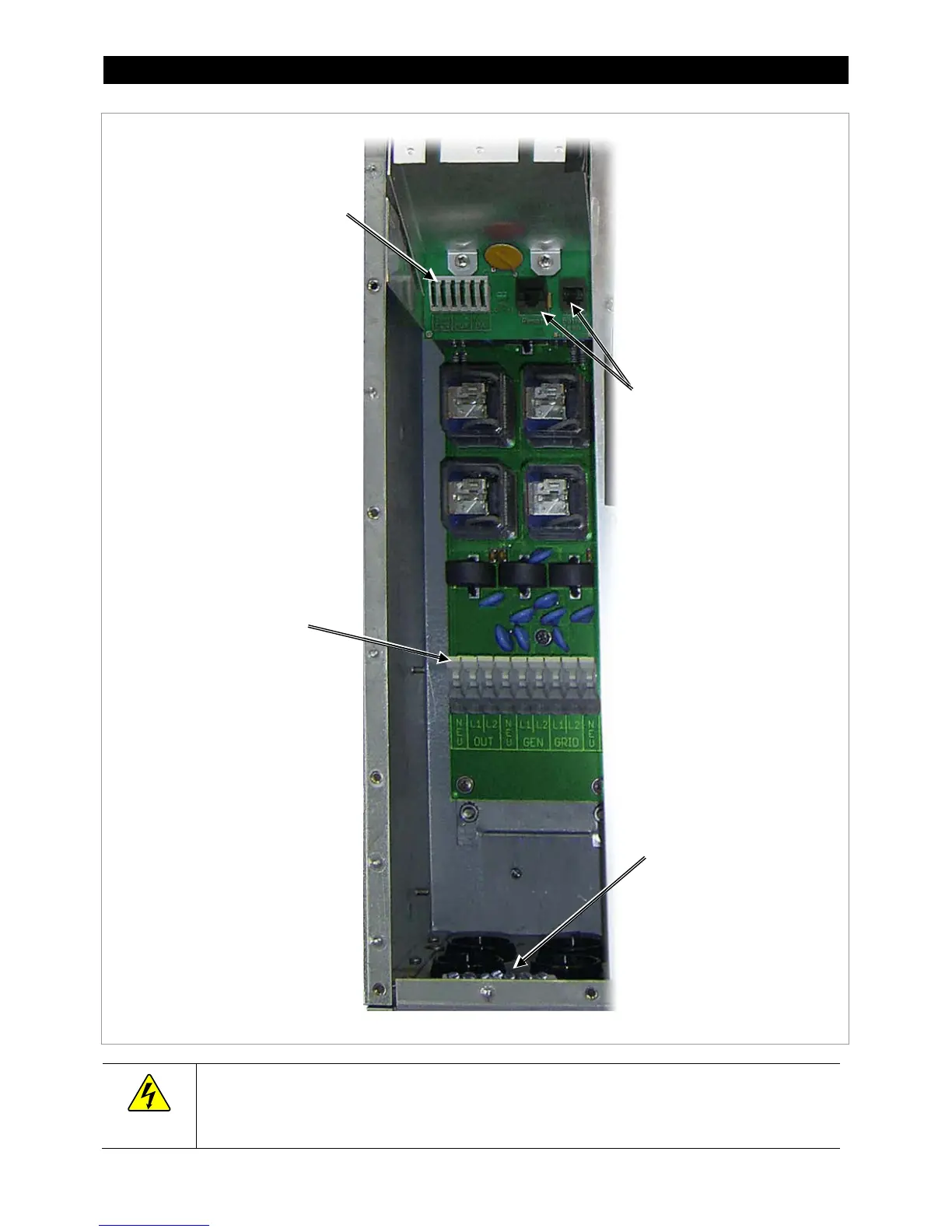

Figure 12 AC Terminals, Ports, and Ground Bus
WARNING: Shock Hazard
After installation, do not remove the covers while the inverter has any source of power. See the Operator’s
Manual for the shutdown procedure before removing the covers.
REMOTE and BATTERY TEMP
JACKS: Receive the RJ45 and RJ11
plugs from the MATE3 system display
and Remote Temp Sensor. See page
28 for instructions.
AC TERMINAL BLOCK : Receives AC
input wires for two input sources (L1, L2
and neutral for each). Also receives AC
output wires (L1, L2, and neutral). All
neutral wires are electrically common.
See page
26 for instructions.
CONTROL WIRING TERMINAL BLOCK:
Receives control wires for a variety of
functions
, including generator control.
S
ee facing page for terminal descriptions.
GROUND BUS : Receives ground
wires from multiple locations.
See page
24 for instructions.
