Single-Inverter AC Installations
When installing an inverter AC system, the following rules must be observed.
All overcurrent devices in building-based installations must be sized for 50 Aac or less.
All wiring in building-based installations must be sized for 50 Aac or more.
All output circuit breakers must be sized appropriately for loads and inverter wattage.

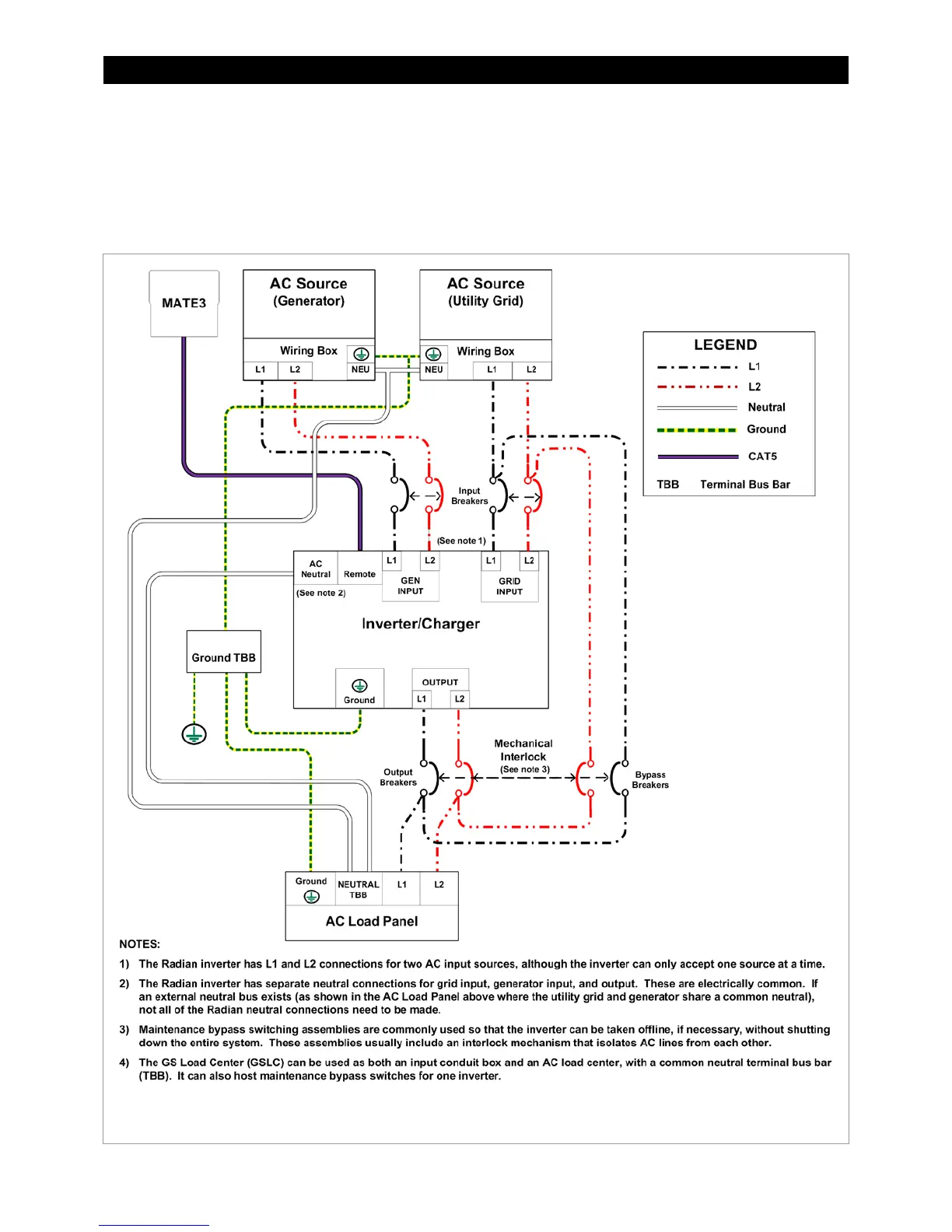

Figure 24 Single-Inverter Wiring
