S3 User Guide 28 PN 875-0196-000 Rev C1
Chapter 3: Basic Operation

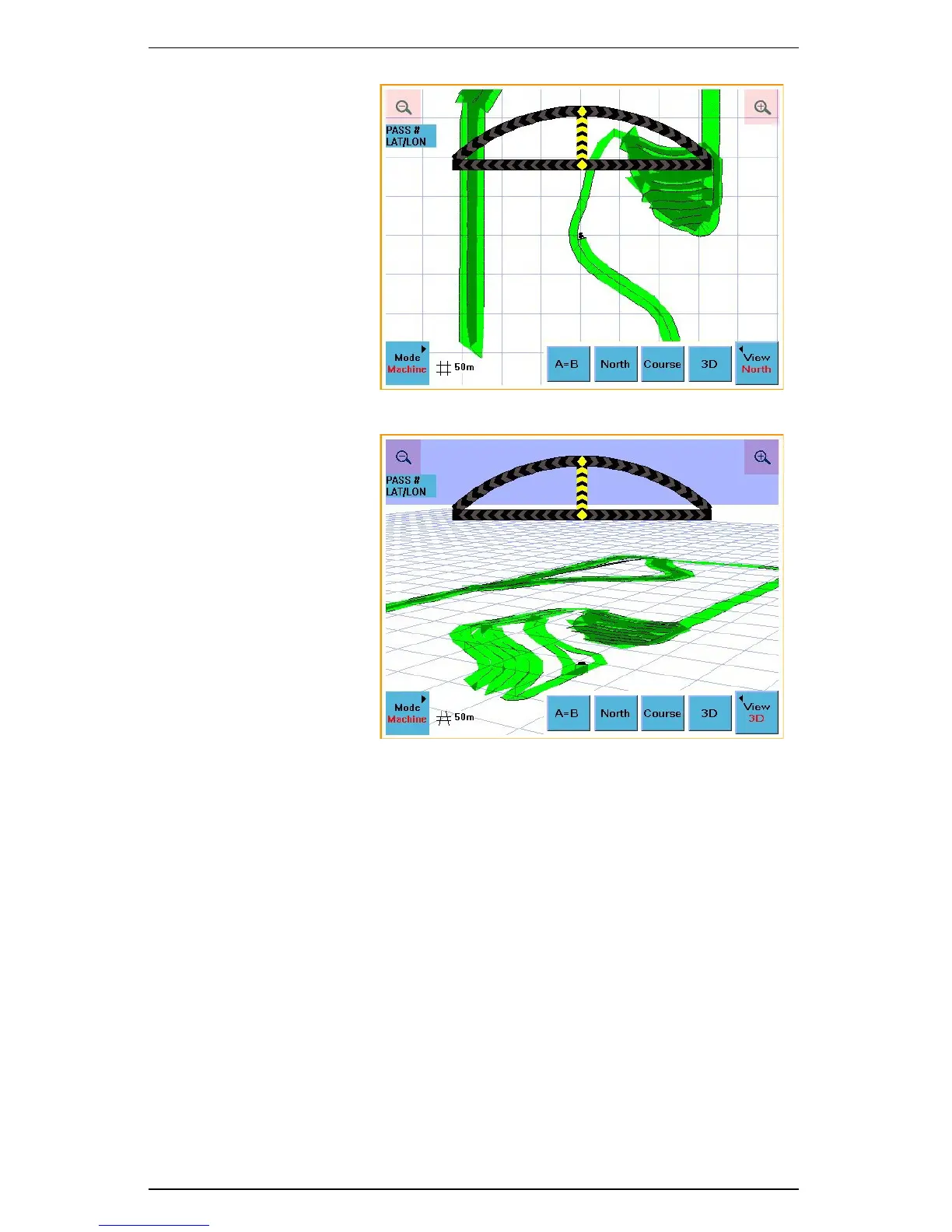

As the name indicates,
North is always at the top
of the screen, regardless
of the vehicle’s direction of
travel.
Figure 3-4: North perspective
The 3D perspective gives
a three-dimensional view
down the field in the
direction of travel.
Figure 3-5: 3D (down field) perspective
