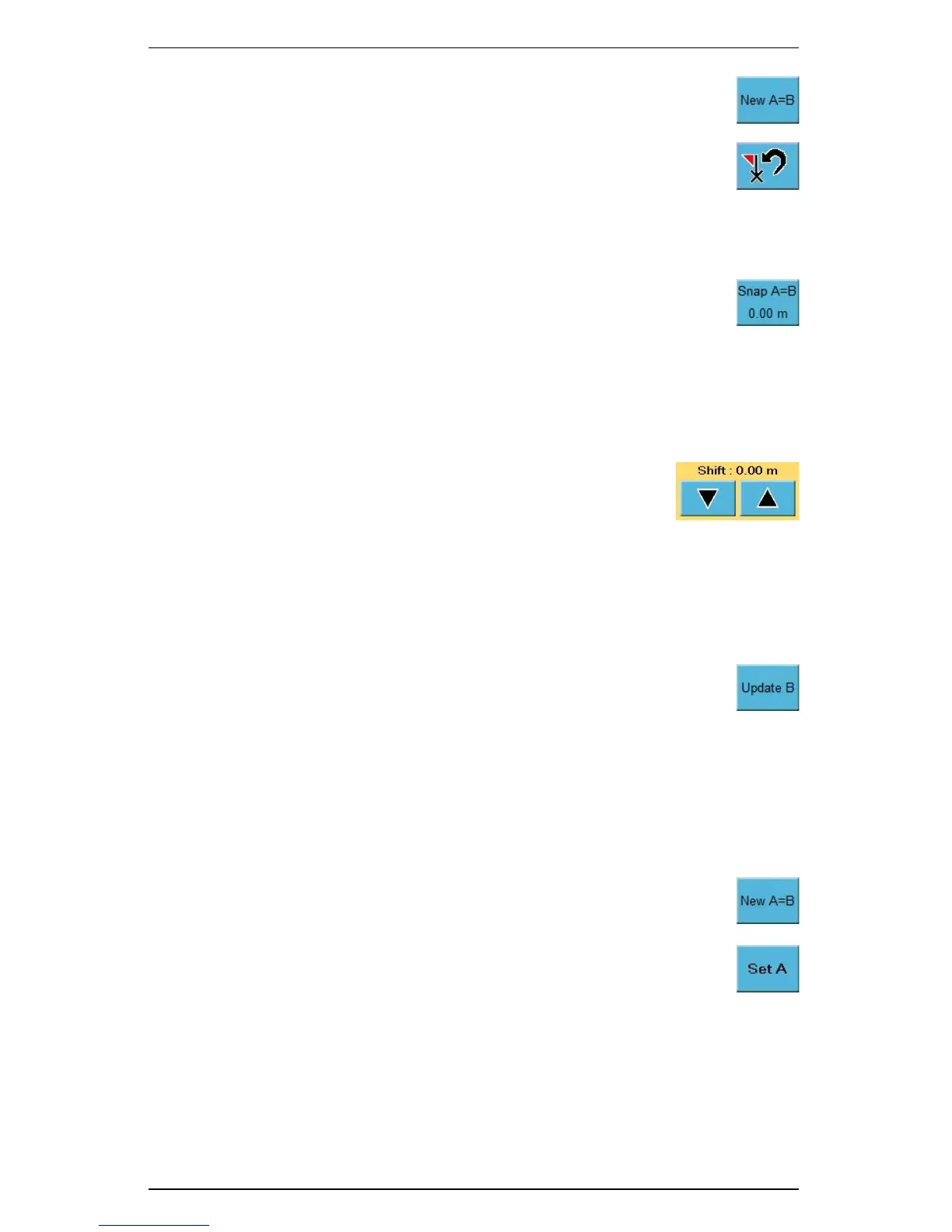

• New A=B / Previous A=B: You can set a new A-B line at any
point during the job and use a previously defined A-B line for
guidance.
• Return Points: You can return to a previously recorded point,
including any A or B point in the current job.
Snapping the A-B Line to the Current Location
1. While in Straight Guidance mode, touch the Straight Guidance control
button. The Straight Guidance window appears.
2. Touch the Snap A=B button. This aligns the nearest A-B guide
line with the current vehicle position (snap A-B to here).
3. Touch the Straight Guidance control button to close the Straight
Guidance window.
Shifting the A-B Line
1. While in Straight Guidance mode, touch the Straight Guidance control
button. The Straight Guidance window appears.
2. Touch the appropriate Shift button to nudge the A-B line
left (down arrow button) or right (up arrow button)
relative to the direction of travel.
3. Touch the Straight Guidance control button to close the
Straight Guidance window.
Updating Point B
1. While in Straight Guidance mode, touch the Straight Guidance control
button. The Straight Guidance window appears.
2. Touch the Update B button to set a new Point B.
3. Touch the Straight Guidance control button to close the Straight
Guidance window.
Defining a New A-B Line
If you have previously defined an A-B line and want to define a new A-B line, the Set A
button in the Straight Guidance window displays as New A=B.
1. While in Straight Guidance mode, touch the Straight Guidance control
button. The Straight Guidance window appears.
2. Touch the New A=B button to set a new A-B line. The button text
changes to Set A.
3. Touch the Set A button to mark Point A.
4. Drive the new pass.
5. At the end of the pass, touch the Set B button to mark Point B.
