Overhead door legacy 650 Operation & Maintenance Manual

7
+
PRGM
SET
+
–
PRGM
SET
+
–
PRGM
SET
+
–
+
PRGM
SET
+
–
PRGM
SET
+
–
PRGM
SET
+
–
Programming Information

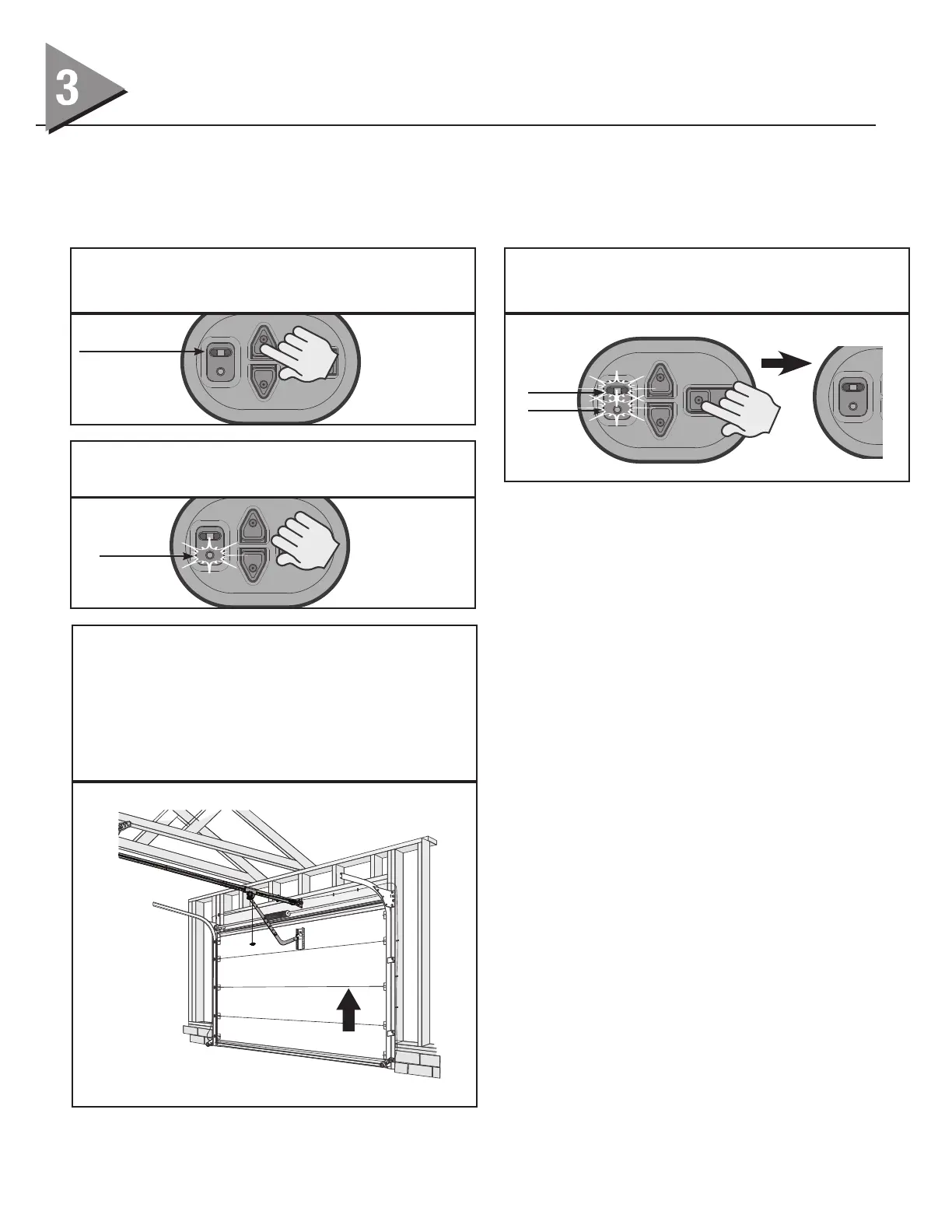

Opening Garage Door (Up Limit)
NOTE: Beginning with garage door closed is recommended but not necessary.
READ AND UNDERSTAND STEPS 6-9 BEFORE
PROCEEDING
6. Press and hold the UP arrow button (+) for two seconds
or until the long LED comes on blue. (The round LED
stays o.)
Steady Blue
Flashing Blue
7. Release UP arrow button (+) and the round LED will
begin ashing blue. (the long LED will go o).
9.Pressandreleasetheprogram/setbutton—bothLEDs 
ash blue and then go o.
The UP (OPEN) TRAVEL LIMIT IS NOW PROGRAMMED.
8. Press and hold the up arrow button (+) to begin opening
the garage door. When the garage door is fully opened,
release the up button (+). If it has gone too far press
and release the down button (–) to move the door down
slightly. The door can be moved up or down with the
arrow buttons. Stop the carriage short of the opener
powerhead. It is important for the red cord to be clear of
the powerhead to allow for manual door operation.
+
PRGM
SET
+
–
PRGM
SET
+
–
PRGM
SET
+
–
Flashing
Blue
+
PRGM
SET
+
–
PRGM
SET
+
–
PRGM
SET
+
–

Overhead door legacy 650 Specifications

General

Drive Type	Chain Drive
Horsepower	1/2 HP
Voltage	120V
Frequency	60 Hz
Speed	7 inches per second
Battery Backup	No
Warranty	5 years on parts
Motor Type	AC Motor
