RELEASE
111066.0001
WASHER
110819.0001.S
DOWEL PIN
110881.0001.S
E-RING
080415.0022.S
SPRING
110545.0001.S
DENTIL, HOIST
111110.0001.S
SLEEVE, DENTIL
070040.0000.S
HANDWHEEL
EXTENSION
SHAFT

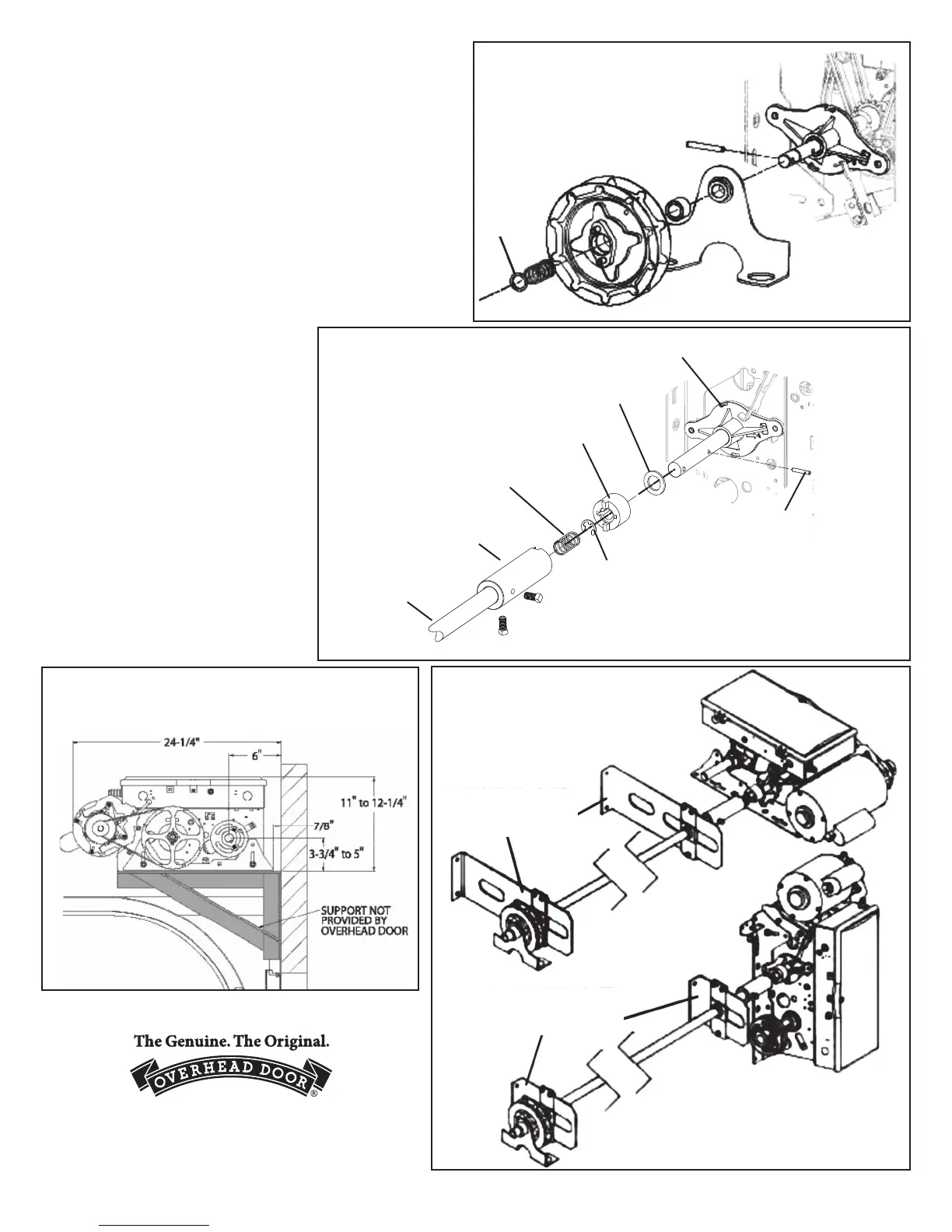

HOIST SHAFT INSTALLATION
1) Drive spring pin out of the intermediate shaft
(handwheel) and remove all items up to the
handwheel release, retaining the washer. FIGURE 1.
2) Place the washer back onto the shaft and insert the
new dowel pin. FIGURE 2.
3) Next slide the short half of the dentil coupling, the
spring and finally snap the e-ring type retainer
into place.
4) Insert the handwheel extension shaft into the dentil
sleeve coupler and secure with the set screws.
5) Slide shaft support bracket(s) onto the extension
shaft. Check that the bearing bracket are free to slide
back and forth. FIGURE 3.
6) Mount the support bracket(s) to the wall or
support pad. Use a level.
7) Adjust the bearing brackets to
make the extension shaft
parallel with the wall and tighten
down the brackets.
8) Slide the handwheel, chain guard
and set collar up against the
support bracket and tighten the
set screws on the collar
and handwheel.
9) Install hand chain.
(See Owner’s Manual)
FIGURE 1
FIGURE 2
FIGURE 3
TYPICAL HORIZONTAL
MOUNTING SETUP
Access Systems Division
a Division of Overhead Door Corporation
22790 Lake Park Blvd.
Alliance, Ohio 44601
SUPPORT BRACKET/
BEARING BRACKET
P/N 108227.0002
SUPPORT BRACKET/
BEARING BRACKET
P/N 108227.0001
HORIZONTAL MOUNT
VERTICAL MOUNT
RE-USE
