● Mixer matrix with DRY/EQ, COMPRESSOR, and full wet path SATURATED faders with
mute switches allow for series and parallel routing and composited mixing
FRONT PANEL

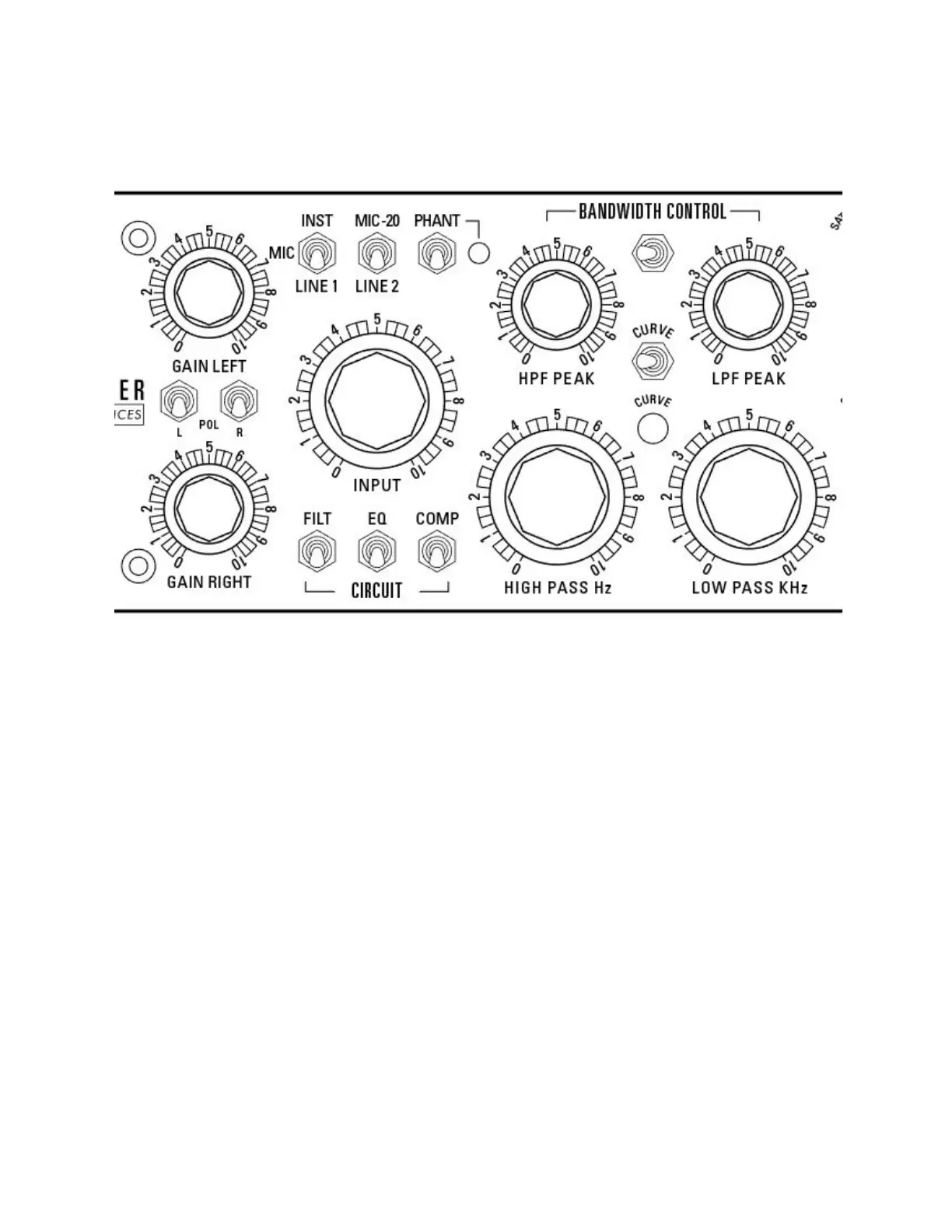

INPUT SECTION
GAIN LEFT/GAIN RIGHT controls - Independent controls set the gain of the discrete input
amp before the stereo INPUT control. These controls are active on instrument, mic, Line 2 and
line-to-pre inputs. They are not active on the Line 1 input.
POL LEFT/POL RIGHT switches - Sets the polarity of the microphone and line 2 input signals.
Default/unchanged position is down. Engaging will invert the polarity of the signal.
INST/PRE/LINE switch (8755DS version) - Selects the input signal. Selecting PRE, the LINE
input signal is fed through the preamps. This allows the balanced line input to be controlled
(and driven) with the GAIN controls at the front of the signal path.
INST/MIC/LINE 1 switch (8755DM version) - Selects the input signal, INST and MIC signals
are fed through the preamps, so the GAIN controls are active.
MIC-20/MIC/LINE 2 switch (8755DM version) - This switch only has effect when ‘MIC’ is
selected on the input toggle
Up - MIC input, -20dB pad engaged
Mid - MIC input, no pad
