OWC DIGITAL - MERCURY HELIOS
DEVICE SETUP
5

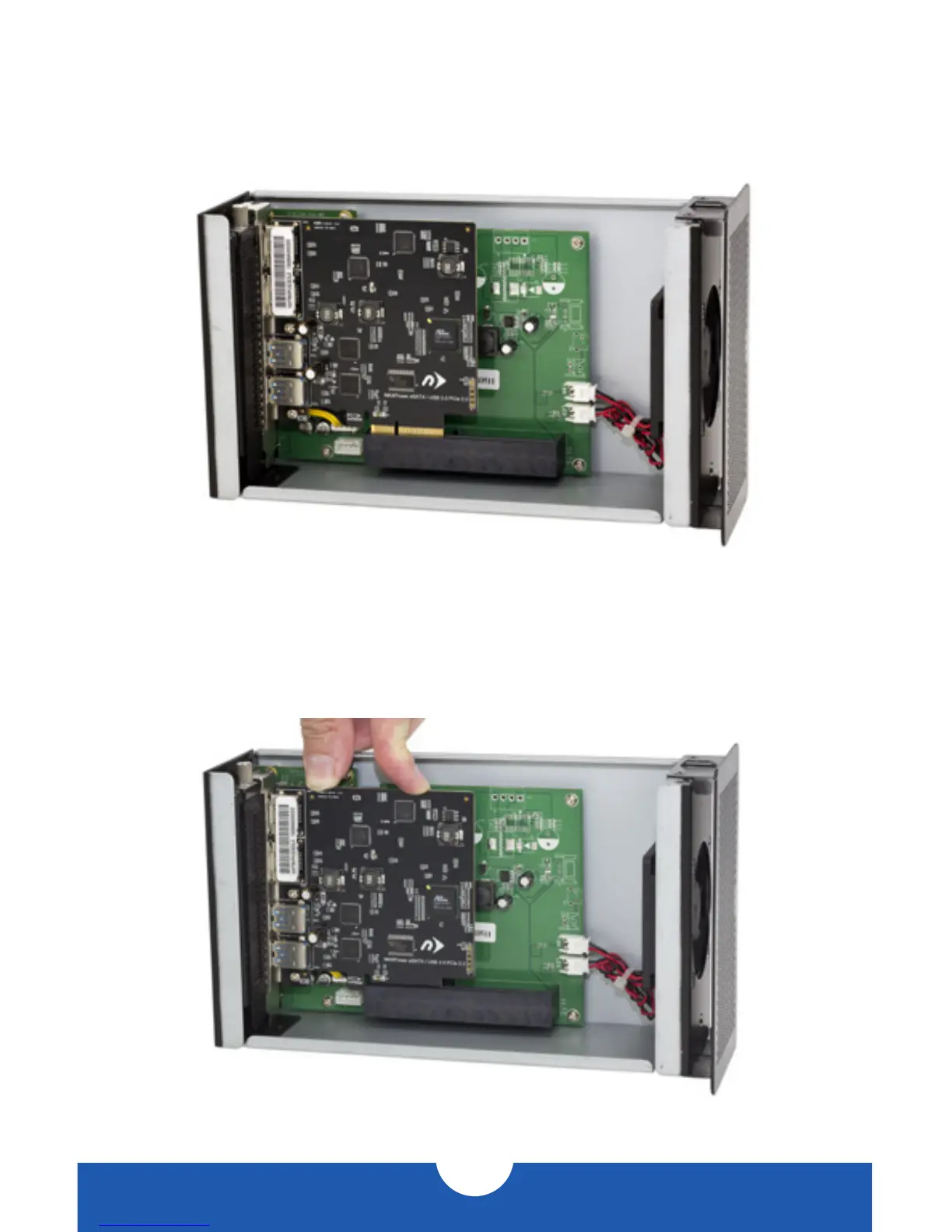

5 Install the PCIe card as shown below. Line up the connectors on the PCIe card with the
PCIe slot, and make sure that the edge of the metal bracket on the PCIe card lines up with
the slot in the bottom of the Helios.
NOTE: Handle the PCIe card only by its edges. Do not touch any of the components on
the face of the PCIe card or the golden connectors.
6. Press down on the PCIe card to seat the connectors into the PCIe slot, as shown below.
Press staight down; do not twist or rock the card. If the card does not seat fully, do not
force it in. Remove the card, check to make sure that there is no damage to the card or the
slot and that the bracket is not bent, then try again.
