OXE 30-0101-200 - Propeller Shaft Bearing Replacement; 800 H Service; Remove the Propeller Shaft Bearing

190
OXE 150/200 HP SERVICE MANUAL
PROPELLER SHAFT BEARING
REPLACEMENT
800 H SERVICE
Remove the propeller sha bearing
Refer to Lower belt replacement.

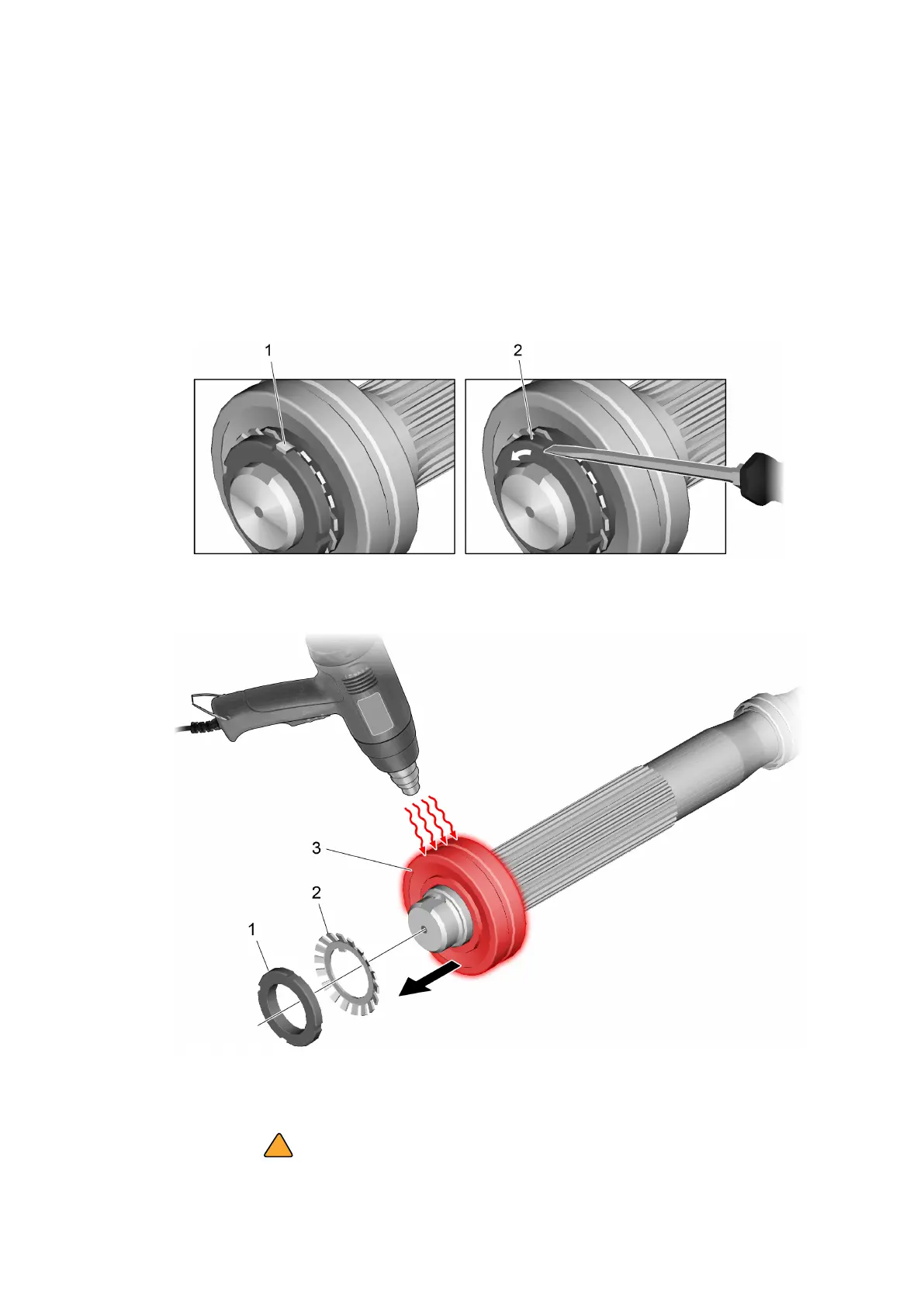

10. Bend up the tab of the lock washer (1) and loosen the nut (2) from the
propeller sha.
1. Take off the nut (1) and lock washer (2).
2. Heat up the spherical bearing (3) until it comes off.
!
DANGER
Risk of burns.
LOWER BELT REPLACEMENT
