OXE 30-0101-200 - Feed Pipe Installation (Rail to Injectors)

71
OXE 150/200 HP SERVICE MANUAL
FUEL INJECTOR FEED PIPE REPLACEMENT

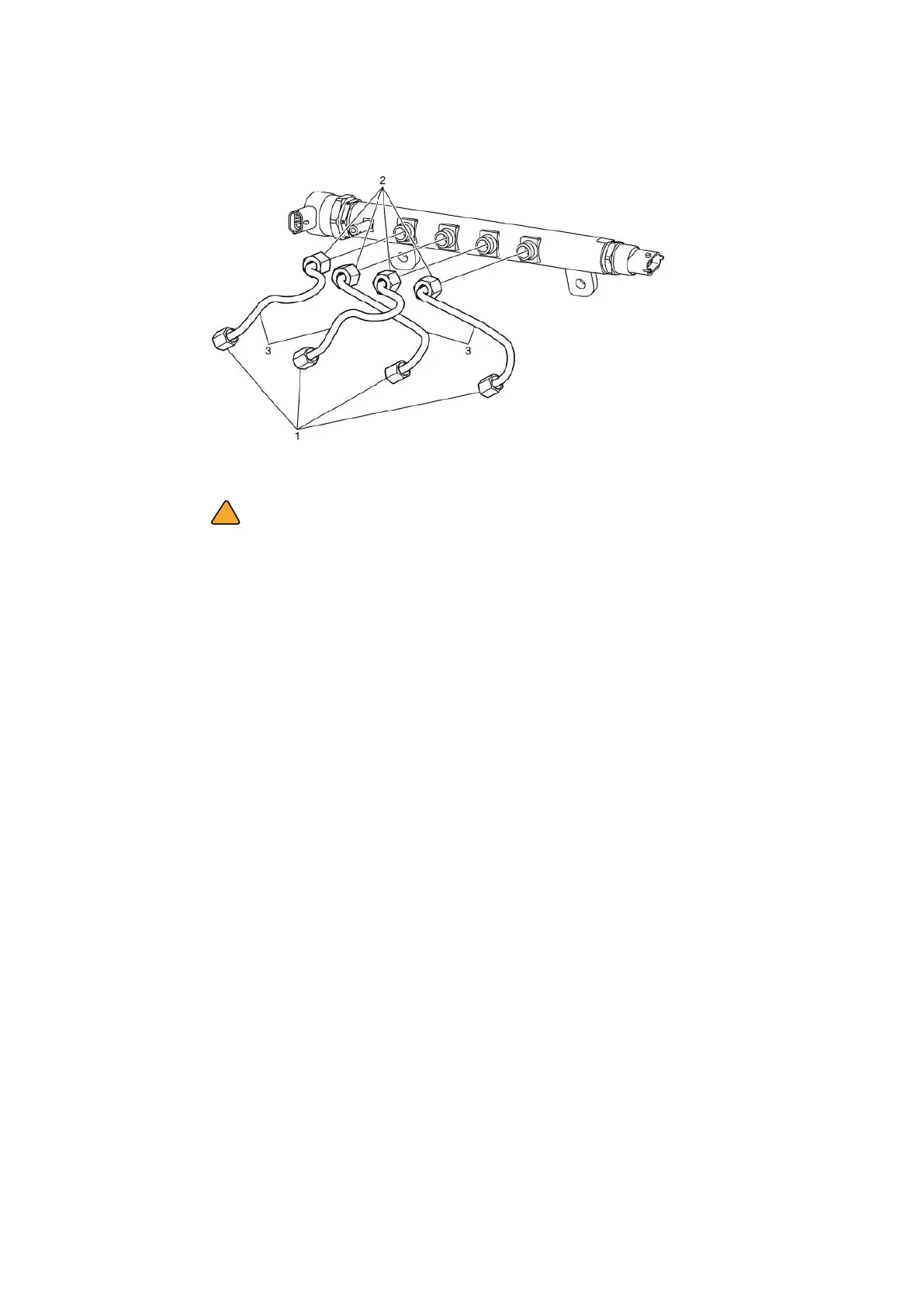

FEED PIPE INSTALLATION (RAIL TO INJECTORS)
1. Install 4 new fuel injector fuel feed pipes (3). Do not reuse!
!
WARNING
See Fastener.
2. Install the 8 fuel injector fuel feed pipe nuts (1, 2) and hand tighten.
3. Tighten the 4 fuel injector fuel feed pipe nuts (1) to 25 Nm (18 lb ) .
4. Tighten the 4 fuel injector fuel feed pipe nuts (2) to 19 Nm (14 lb ).
