Ozito ECOMOW - KNOW YOUR PRODUCT; SETUP & PREPARATION; 1. ASSEMBLY Procedures

1
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

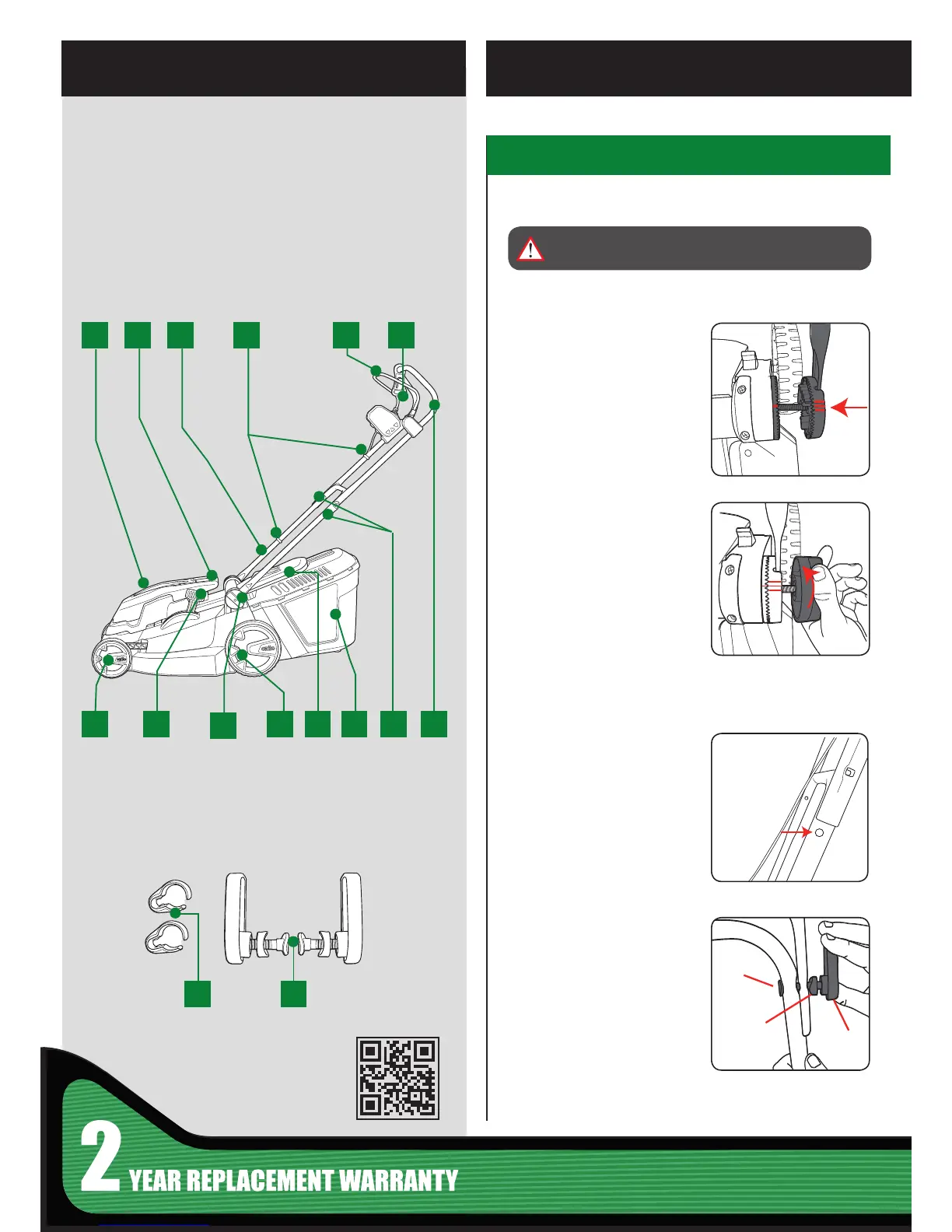

KNOW YOUR PRODUCT
SETUP & PREPARATION
1 Motor cover
2 Lifting handle
3 Lower handle
4 Cord clips
5 Start/stop lever
6 Cord retainer
7 Front wheel
8 Height adjustment lever
9 Quick adjustment knob
10 Rear wheel
11Grasscatcherap
12 Grass catcher
13 Handle securing set
14 Upper handle
1. ASSEMBLY
ECOMOW ELECTRIC MOWER
1
9
10 11 12 13
2 3 4 6
7 8 14
5
WARNING!: ENSURE THE TOOL IS DISCONNECTED
FROM THE POWER SUPPLY BEFORE ASSEMBLY.
Fitting the Lower Handle to Mower Body
1. Unscrew quick adjustment
knobonbothsides,tthelower
handle onto the threaded ends.
2. By using the lines as a guide
for correct alignment, adjust
the lower handle to the correct
position for comfortable height,
thentandsecureinplacewith
the quick adjustment knobs.
1. Place the upper handle over
the upper ends of the lower
handle. From the handle
securingset,tthebolts
through the inner side of the
lower handle and then through
the hole in the upper handle.
2. Place the plastic spacer onto
the protruding thread, then
secure in place by screwing
the supplied handle securing
knobs over the protruding
ends of the bolts.
Fitting the Upper Handle to the Lower Handle
Bolt
Plastic
Spacer
Knob
4 Cord clip 13 Handle securing set
4 13
