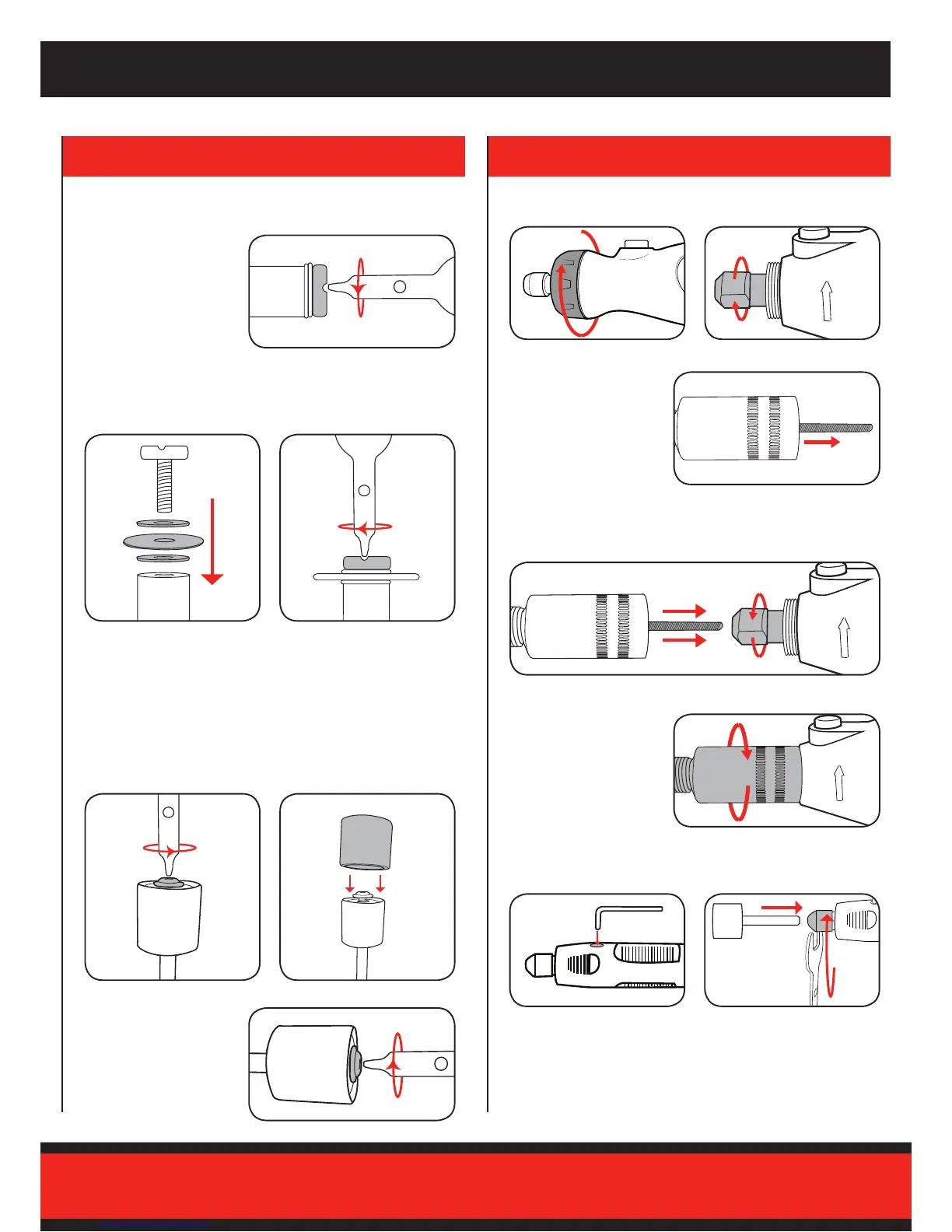

2. CHANGING ACCESSORIES CONT. 3. FLEXIBLE SHAFT
Locating a cutting/sanding disc
Locating a sanding drum
2 Fitthebreangeeitherside
of the cutting disc, then insert
the screw.
1 Loosen the screw on the top
of the sanding drum holder.
3 Tighten the cutting disc onto
the cutting disc holder.
2 Slide the sanding drum onto
the sanding drum holder.
1 Remove the screw from
the end of the disc holder.
Note: Do not over-tighten the screw as it could result in damage to the
cutting disc.
3 Tighten the screw until
the sanding drum sleeve
is secured.
1 Remove the shaft collar.
6 Insert the spindle lock key into
the hole on the handle.
2 Loosen the collet nut.
7 Loosen collet nut then insert
shank of accessory into collet.
3 Raise the handle end of
theexibleshaft&shake
gently until the inner
exibleshaftprotrudes
fromthettingcollaror
use a pair of pliers.
5 Screwtheexibleshaft
ttingcollarontothe
rotary tool.
8 Tightencolletnutandcheckallttingstoensuretheyaresecurely
fastened.
4 Inserttheinnerexibleshaftintothecolletthentightenthecollet
nut.
a
b
a
b
