Ozito LTM-3000 - KNOW YOUR PRODUCT; LAMINATE TRIMMER; ACCESSORIES; SETUP & PREPARATION

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
9 10
11 12 1413
1 On/O󰀨Switch
2 Base Locking Knob
3 Collet Nut
4 Spindle
5 Depth Adjusting Screw
6 Trimmer Guide Base
7 Fence/Guide Locking Screw

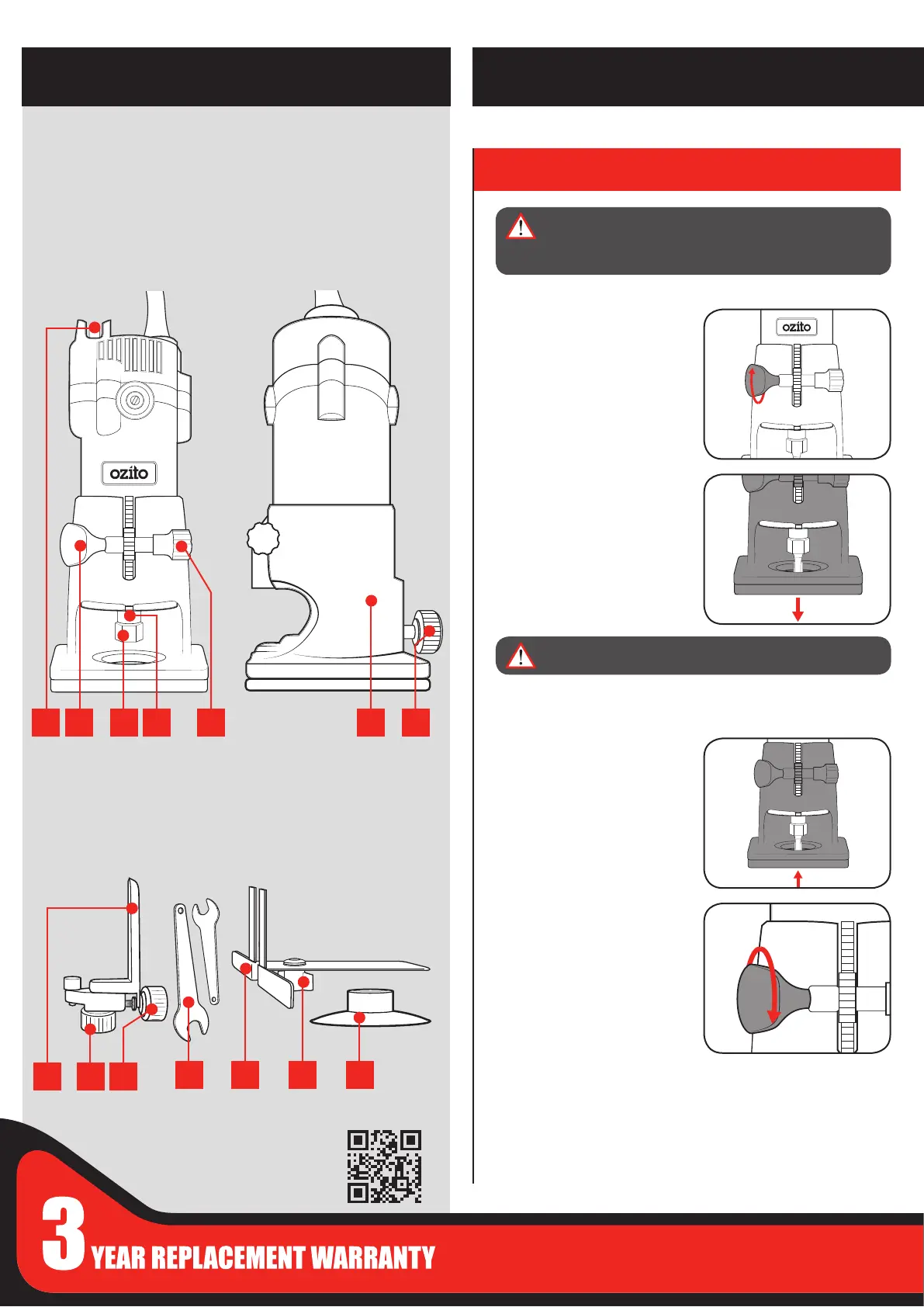

LAMINATE TRIMMER
KNOW YOUR PRODUCT
1 2 3 4 5 6 7
8
1. SETUP
8 Trimming Guide
9 Trimming Locking Knob
10 Trimming Adjustment Knob
11 Collet Spanners x 2
12 Straight Fence
13 Fence Locking Knob
14 Template Guide
ACCESSORIES
SETUP & PREPARATION
Removing the Trimmer Guide Base
Fitting the Trimmer Guide Base
FRONT VIEW
SIDE VIEW
1 Loosen the base locking knob
by rotating anti-clockwise.
1 Slide the trimmer guide base
onto the housing.
2 Slide the trimmer guide base
o󰀨thehousing.
2 Secure in place by fastening
the base locking knob.
WARNING! ENSURE THE TOOL IS SWITCHED OFF
AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING
OPERATIONS.
WARNING! NEVER USE THE LAMINATE TRIMMER
WITHOUT THE SAFETY GUARD FITTED.
