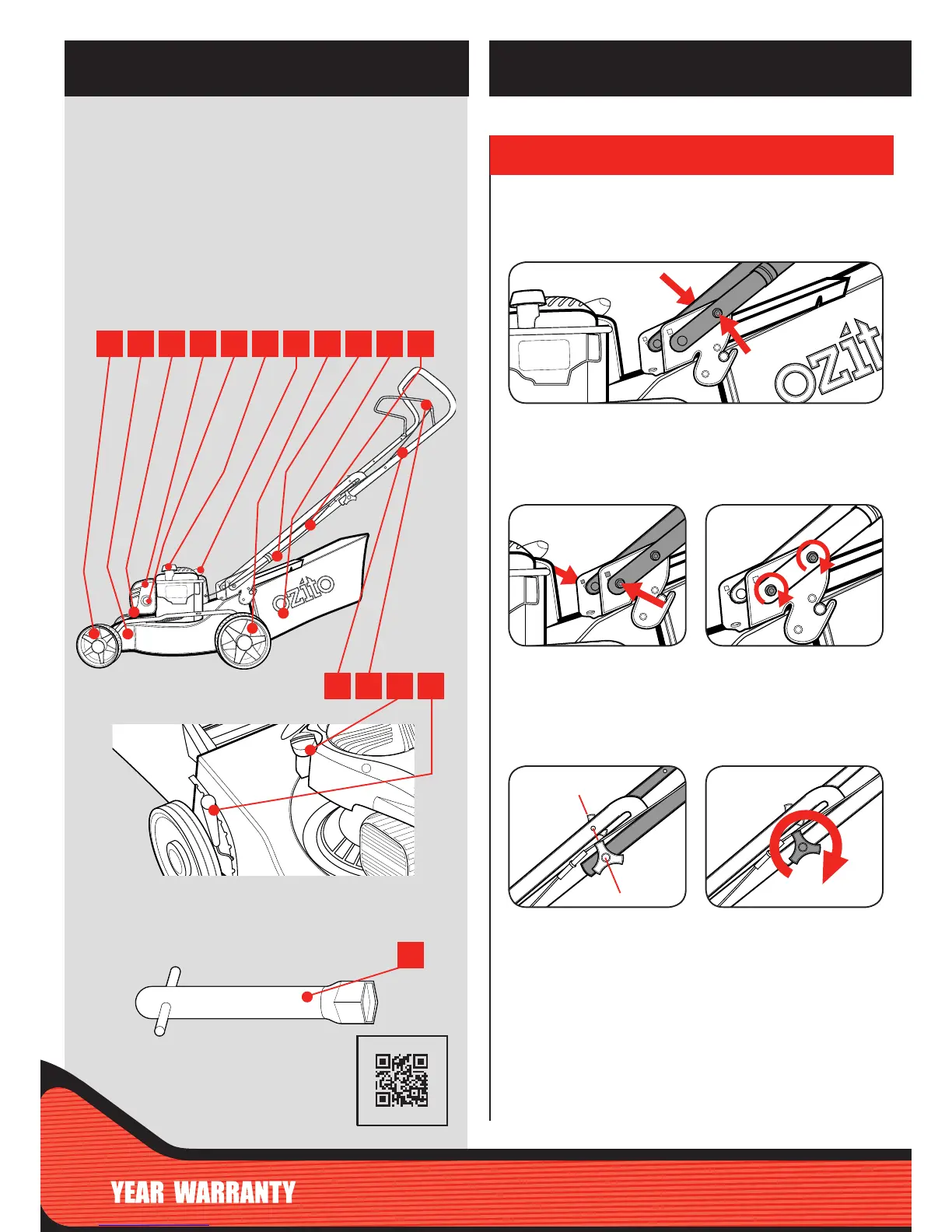

KNOW YOUR PRODUCT
SETUP & PREPARATION
1 Front Wheel
2 Housing
3 Spark Plug Cover
4 Air Filter
5 Priming Button
6 Petrol Tank Cap
7 Starter Cable
8 Rear Wheel
9 Cord Clip
10 Grass Catcher
11 Lower Handle
12 Upper Handle
13 Start/Stop Lever
14 Oil Filler Cap
15 Height Adjustment Lever
1. HANDLE ASSEMBLY
PETROL LAWN MOWER
12
1
13
2
14
3
15
16
4 5 6 7 8 9 10 11
16 Spark Plug Wrench
17 2x Hex Screws
18 2x Phillips Head Screws
19 4x Nuts
20 2x Screws (with 3 Point
Securing Nut)
1 Align the lower handle with the holes on the support bracket
and loosely fasten with the upper phillips head screws and
nuts using a #3 phillips screwdriver and 13mm spanner.
1 Align the upper handle with
the desired holes on the
lower handle.
3 Tighten both bolts to
secure the lower handle to
the support bracket using a
13mm spanner.
2 Align the lower holes in 1
of 3 positions to obtain the
required height. Place the
domed head bolt into the
lower holes.
2 Secure using the 2
supplied screws with 3
point securing nut.
Fitting the Lower Handle
Fitting the Upper Handle
