-4-
AIO-OZONE Installation & Programming Guide
Power Supply Jack
Installation of EOG Unit continued
Photo R
Thumbs
Here
Photo P
Photo Q

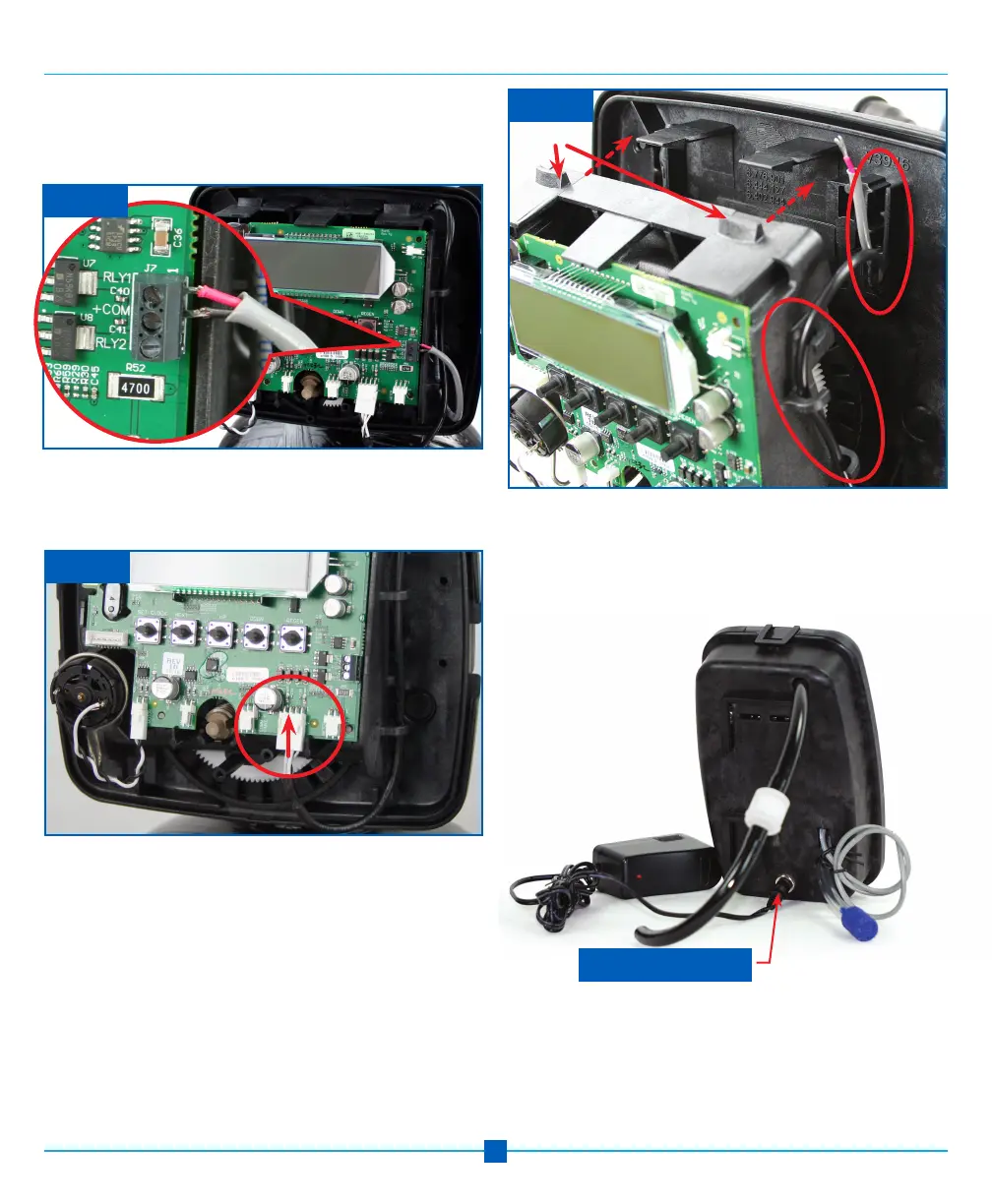

Step 13: Make sure the EOG unit is not plugged in, con-
nect the EOG unit’s 2 wire leads to Relay 1 on the control
valve. The black wire connects to COM and the red wire
connects to RLY1. See Photo P inset.
Step 14: Connect power supply to the control board if not
already connected as when using Ozotech Model,
Photo Q.
Step 15: Both the gray wire and power supply must fit
into the wire chases. Snap the bracket back into place.
(Do Not Press on Control Board, use the bracket to snap
into place.) Photo R.
Step 16: For the Ozotech EOG Unit reconnect the control
valve power supply to the wall outlet. Connect the EOG
power supply cord to power supply jack and plug the EOG
into the wall outlet. Skip to Step 17 if using Nelsen Unit
with optional integrated power supply cord.
Ozotech EOG Model
Wire
chases
To Next Page
