1.3 Names
Chapter1:BriefIntroduction
Powersupplysocket
COlineports(RJ11)01and02
Extensionportsfrom01to08
( Theactualvoltageisaccordingto
labeldatawhichuponpowersocket.)

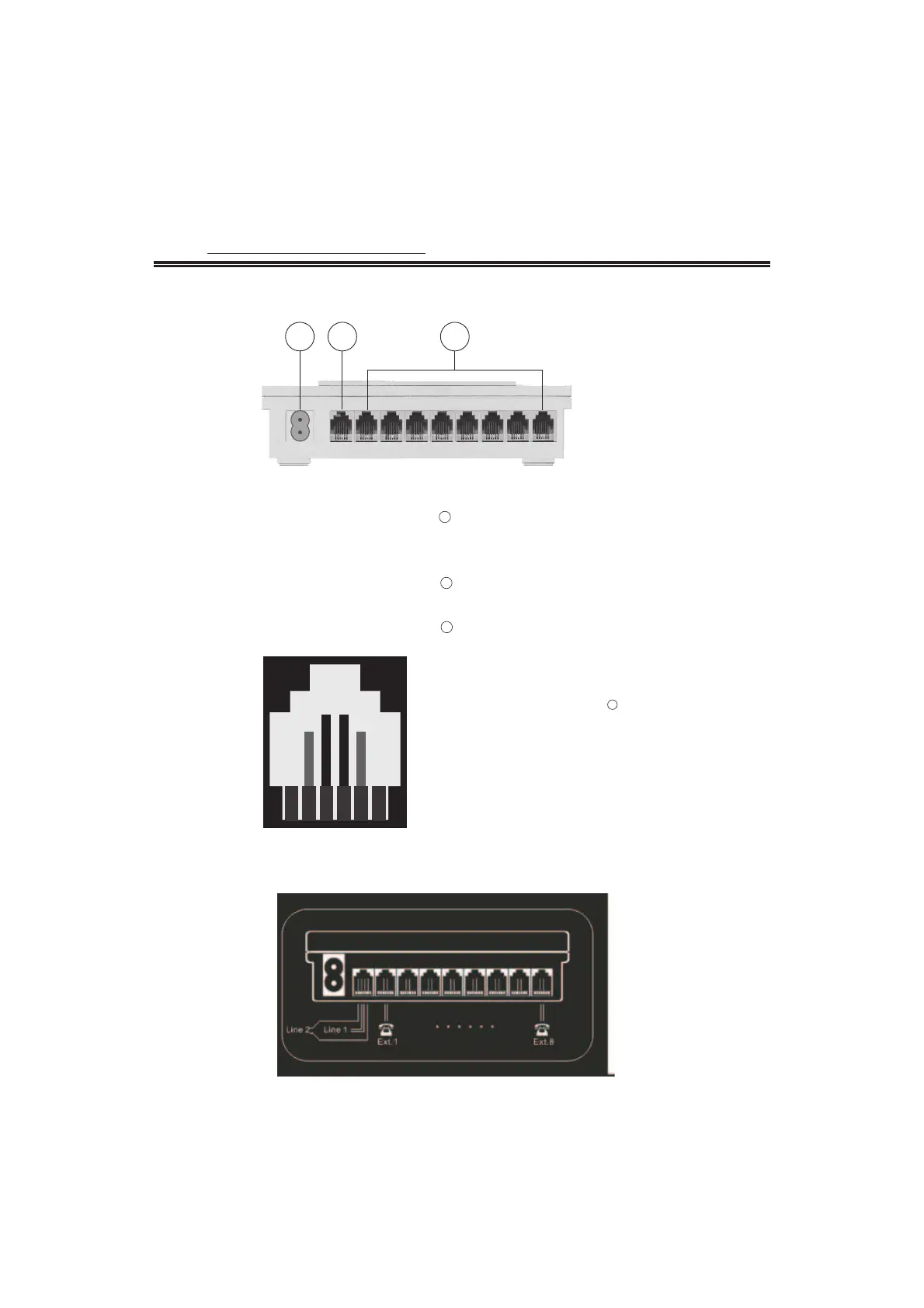

(Referfollowingprofilechart)
1
3
2
31 2
(Back View)
This PABX machine support 2 CO lines which
share same jack ( refer above ).
RJ 11 jack has four pins inside which
can be divided into two groups as CO lines,
(refer A, B, C, D in left picture),
join pins B & C as CO line 1, join A & D as CO line 2.
RJ 11 Jack Explanation:
2
A
B
C
D
(COlinejackRJ11profilechart)
