Pace DC550DR - Page 3

COMPONENT VIDEO
Component video output
for analog HDTV
AUDIO OUT
Audio outputs
(stereo, R and L)
CABLE IN
From cable
service-provider
VIDEO OUT
Composite
video output
Power input
(make this connection
last of all)
OPTICAL AUDIO OUT
Optical S/PDIF
audio output
ETHERNET
For future use
HDMI
Video and audio output
for digital HDTV
USB (Universal Serial
Bus) port
For future use
IR RECEIVE
Infra-red input from a
remote “eye”
DC550DR High-definition digital set-top
HDTV with optional home theater
using a single video and audio connection
SDTV only
using composite video and audio connections
HDTV only
using separate video and audio connections

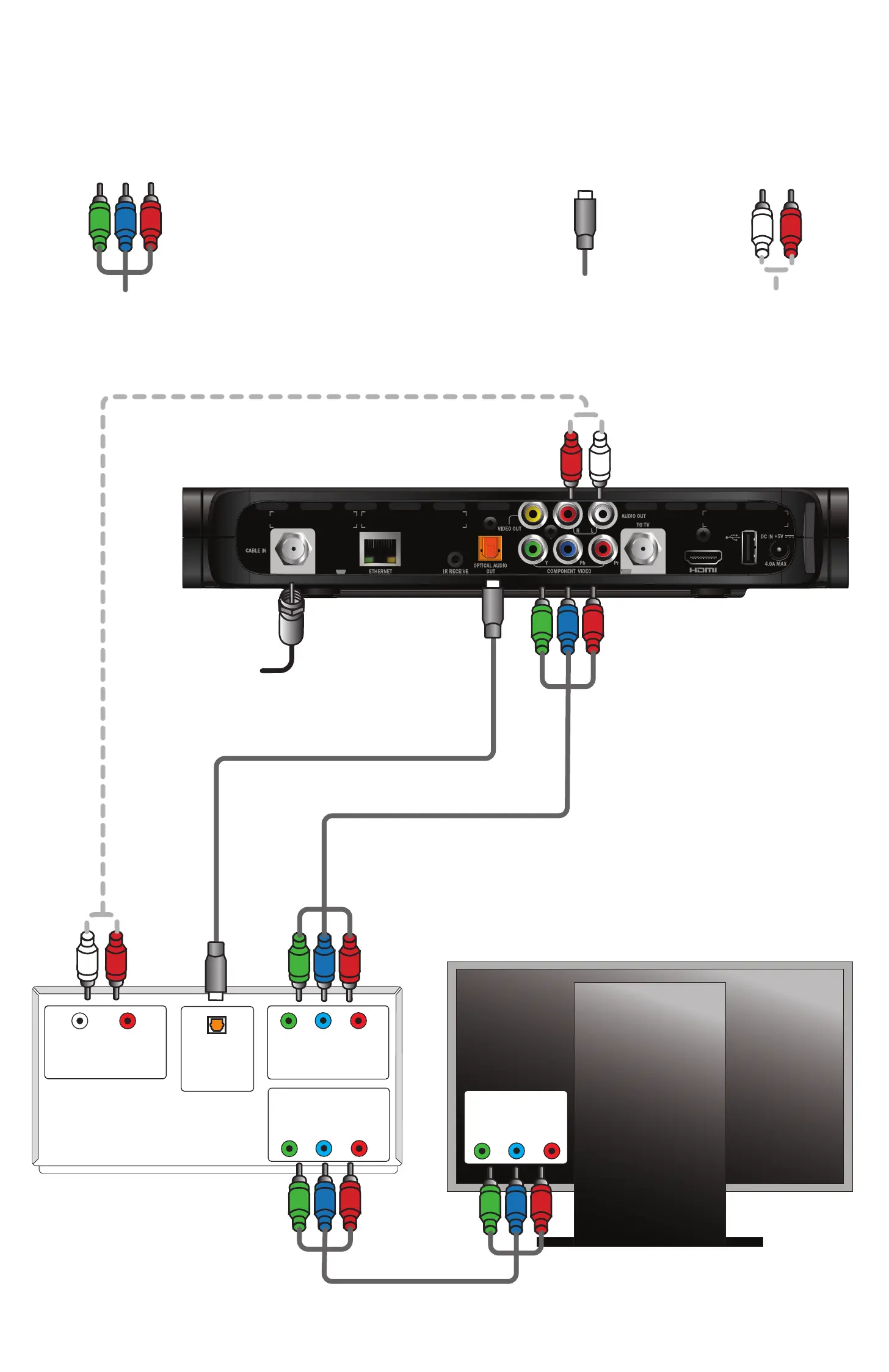

HDTV and home theater
using component video and digital audio connections
SDTV, VCR/DVD recorder, and home theater
using composite video and audio connections
SDTV and VCR/DVD recorder
using composite video and audio connections
Home Theater
HDTV
Cable
Input
HDMI
HDMI
DC550DR
HDMI
IN
OUT
HDMIHDMI
HDMI
LEFT
AUDIO IN
RIGHT
AUDIO IN
HDTV
Cabl
e
Input
HDMI
DC550DR
PbYPr
COMPONENT
VIDEO IN
Component video L and R audio
- OR -- AND -
HDMI
L and R audio
Component
video
HDMI
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
DIGITAL
OPTICAL
AUDIO IN
PbYPr
HDTV
Cable
Input
DC550DR
Component video
L and R audio
Home
Theater
COMPONENT
VIDEO IN
PbYPr
COMPONENT
VIDEO OUT
PbYPr
COMPONENT
VIDEO IN
- OR -- AND -
Digital
optical audio
Digital optical audio
Component video
Component video
L and R audio
LEFT
AUDIO IN
RIGHT
AUDIO IN
Cabl
e
Input
SDTV
DC550DR
Composite video
L and R audio
VIDEO IN
ANTENNA/RF
IN
RF Connector
- OR -- AND -
Composite video
L and R audio
RF cable
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
SDTV
Cable
Input
DC550DR
VCR/DVD
Recorder
Composite video
L and R audio
VIDEO
IN
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
VIDEO
IN
LEFT
AUDIO
OUT
RIGHT
AUDIO
OUT
VIDEO
OUT
ANTENNA/RF
IN
ANTENNA/RF
IN
TV/RF
OUT
RF Connector
- OR -- AND -
Composite video
Composite video
L and R audio
L and R audio
RF cable
RF cable
SDTV
Cable
Input
DC550DR
VCR/DVD
Recorder
Composite video
L and R audio
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
VIDEO
IN
VIDEO
IN
LEFT
AUDIO
OUT
RIGHT
AUDIO
OUT
VIDEO
OUT
LEFT
AUDIO
OUT
RIGHT
AUDIO
OUT
VIDEO
OUT
LEFT
AUDIO
IN
RIGHT
AUDIO
IN
VIDEO
IN
LEFT
AUDIO OUT
RIGHT
AUDIO OUT
VIDEO
OUT
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO
IN
CABLE / TV
VCR
Home Theater
ANTENNA/RF
IN
TV/RF
OUT
ANTENNA/RF
IN
RF Connector
- OR -- AND -
Composite video
L and R audio
RF cable
RF cable
Composite video
L and R
audio
POWER light
Lights green when your set-top is on; not lighted when your
set-top is in standby or is disconnected from the power supply
REMOTE light
Lights green when your set-top is receiving
a signal from your remote control
HD light
Lights blue when your set-top outputs
High-Definition Television (HDTV) content
DATA light
Lights yellow when your set-top is receiving
data and when there is an unread message
TO TV
RF output to
TV (or VCR)
Note: Video signals fed through a VCR or DVD recorder may be affected by copyright protection
systems, which can cause distortion of the picture on your TV. If there is distortion when you
view via the composite video path, the RF path may give a better picture.
E134-QSG-Iss1.indd 2 02/12/2013 12:17
