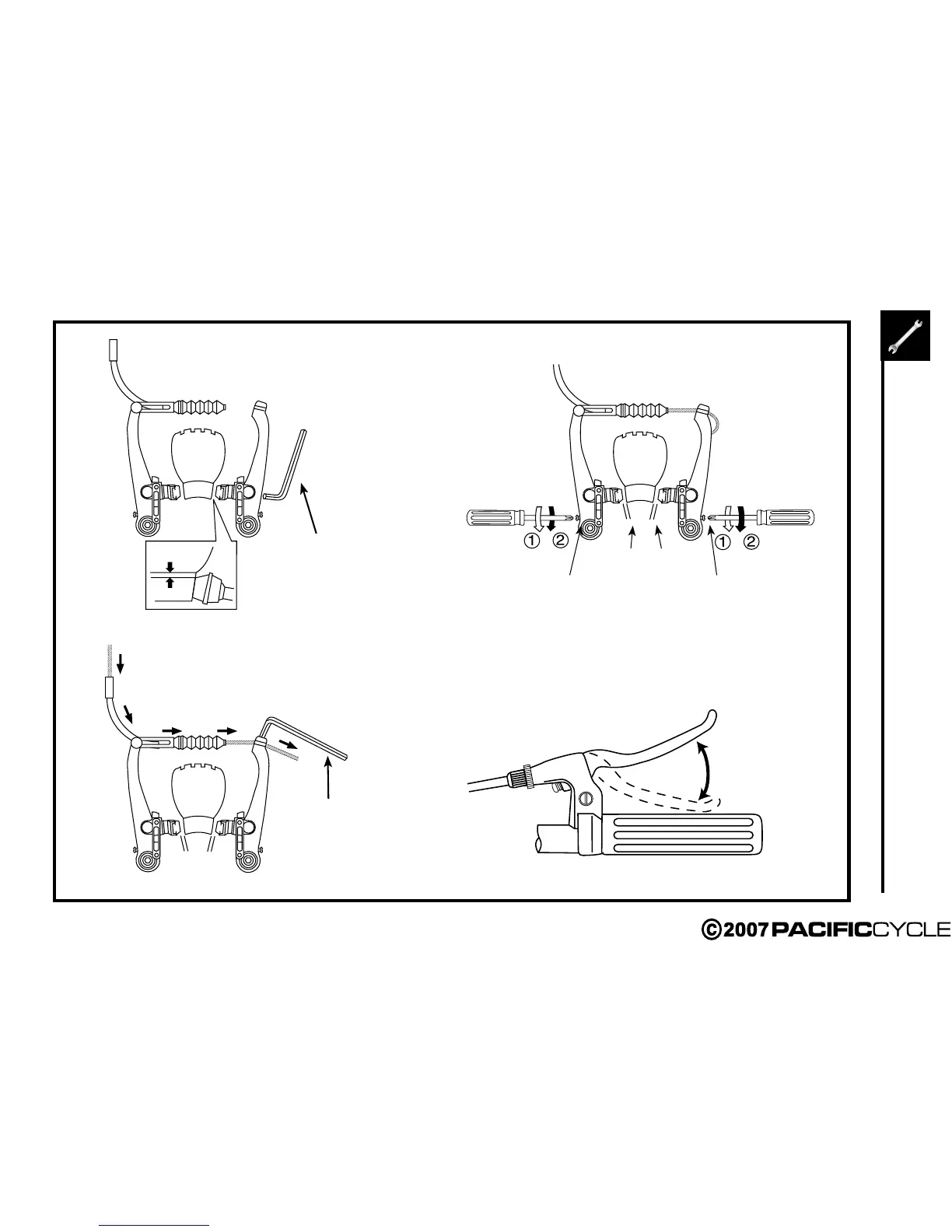

While holding the shoe against the
rim, tighten the shoe fixing nut.
3.
Adjust the balance with the spring
tension adjustment screws.
5.
Depress the brake lever about 10 times as
far as the grip to check that everything is
operating correctly and that the shoe
clearance is correct before using the brakes.
6.
Pass the inner cable through the inner
cable lead. Set the cable with a clearance
of 1mm between each brake pad and the
rim, tighten the cable fixing bolt.
4.
5 mm Allen key
5 mm Allen key
1mm 1mm
1mm
Spring tension
adjustment screw
Spring tension
adjustment screw
Depress about
10 times
1 mm 1 mm
shoe fixing nut
