33

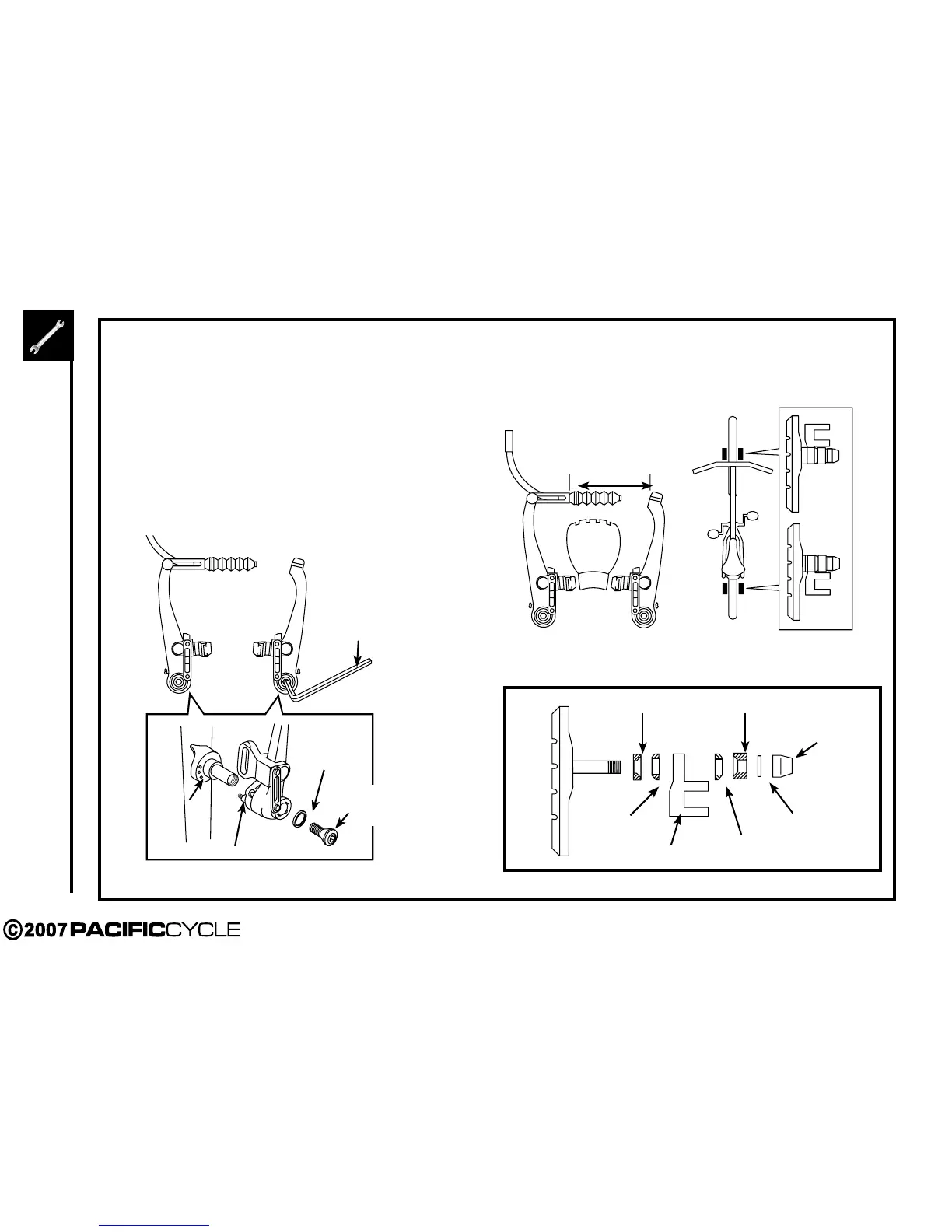

V - Brake
If fitted with V-Brakes, insert the brake body
into the center spring hole in the frame mount-
ing boss, and then secure the brake body to the
frame with the link fixing bolt.
1.
While holding the shoe against the rim, adjust the
amount of shoe protrusion by interchanging the
position of the B washers (i.e. 6 mm and 3 mm) so that
dimension A is kept at 39 mm or more.
2.
5 mm Allen key
Washer
Link
fixing
bolt
Stopper pin
Spring
hole
39 mm or more
A
3 mm washer B 6 mm washer B
Washer A
Shoe fixing link
Washer A
Washer
Shoe fixing nut
